Запчасти Case IH 1170 (167E) - QUICK HITCH COUPLER (09) - CHASSIS/ATTACHMENTS

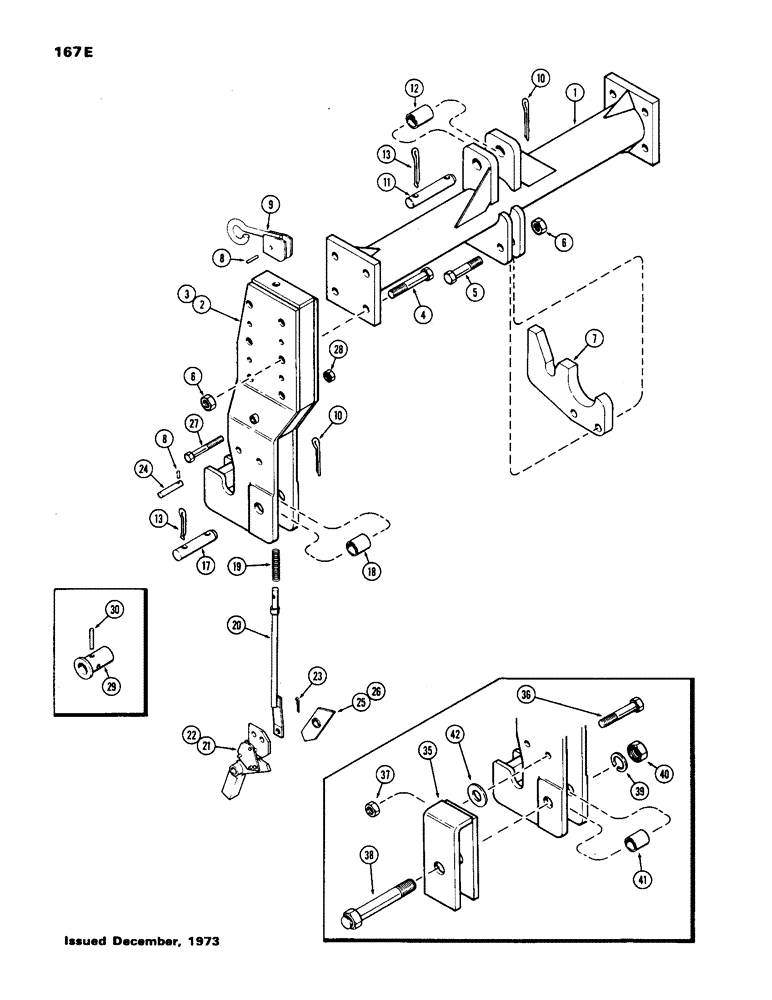

Схема запчастей Case IH 1170 - (167E) - QUICK HITCH COUPLER (09) - CHASSIS/ATTACHMENTS
8
19
8
21
42
10
29
6
27
36
18
1
2
5
10
41
28
3
30
9
26
12
37
13
39
23
17
35
7
11
22
6
25
40
13
4
20
24
38

Артикул

Название

Примечание

Количество

A66281

NO LONGER SERVICED

ATTACHMENT - coupler (Mach. Item) (convertible Cat. III & II), Includes: Ref. 1 - 42

1шт.

NSS

NOT SOLD SEPARAT

COUPLER - convertible hitch, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - upper arm tube

1шт.

2

NSS

NOT SOLD SEPARAT

HITCH - lower arm bracket, L.H.

1шт.

3

NSS

NOT SOLD SEPARAT

HITCH - lower arm bracket, R.H.

1шт.

4

113-736

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4 x 4-1/4" N.C. hex.

8шт.

5

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

6

129-108

NUT,3/4"-10, G5

10шт.

7

A44600

PLATE

LUG - upper arm hitch

1шт.

8

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

4шт.

9

A44472

HANDLE

- hitch release

2шт.

10

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

11

A44599

AXLE PIN

PIN - upper hitch

1шт.

12

A44474

SLEEVE

- upper draft arm pin

1шт.

13

T50113

PIN

- clinch, hitch pin

3шт.

17

A43540

AXLE PIN

PIN - draft arm, lower

2шт.

18

A43542

SLEEVE

- coupler arm (For Cat. III Tractors)

2шт.

19

A44476

VALVE SPRING

SPRING - release rod

2шт.

20

A44598

ROD

- handle to tripping devices

2шт.

21

A44596

LEVER

- lock, R.H.

1шт.

22

A44597

LEVER

- lock, L.H.

1шт.

23

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

24

A44473

PIN

- trip ratchet lever pin

2шт.

25

A44470

LEVER

- lower trip ratchet, R.H.

1шт.

26

A44471

LEVER

- lower trip ratchet, L.H.

1шт.

27

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

28

131-165

NUT,1/2"-13, GA

NUT - 1/2" N.C. Gripco crown lock

2шт.

29

T32995

ADAPTER

- hitch coupler

2шт.

30

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

A66283

KIT

- hitch adapter (Mach. Item), Includes: Ref. 35 - 42

1шт.

35

A66284

BRACKET

- adapter

2шт.

36

113-777

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- 3/4 x 4-1/4" N.C. hex.

2шт.

37

131-385

LOCK NUT,3/4"-10, GA

NUT - 3/8" N.C. Gripco top lock

2шт.

38

A66285

BOLT

- adapter attaching

2шт.

39

192-33

LOCK WASHER,1 1/8"

1 1/8"

2шт.

40

129-131

NUT,1 1/8"-12, G5

- 1-1/8" N.F. hex.

2шт.

41

A43542

SLEEVE

- coupler arm (used w/A66282 hitch to prevent coupler arm collapse)

2шт.

42

195-109

WASHER,3/4"

- 13/16 x 2 x 1/8"

2шт.

Выбрано товаров: 38
