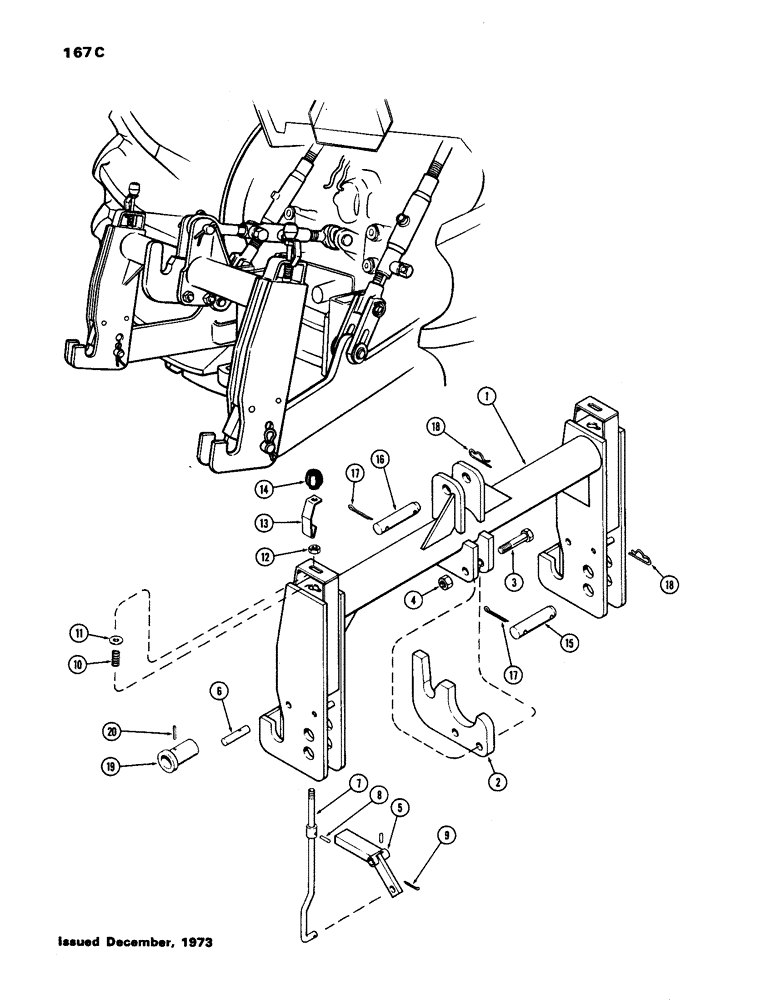

Запчасти Case IH 1170 (167C) - QUICK HITCH COUPLER (09) - CHASSIS/ATTACHMENTS

A62898

ATTACHMENT - hitch coupler (Mach. Item) (Order A65707), Includes: Ref. 1 - 20

1шт.

NSS

NOT SOLD SEPARAT

COUPLER ASSY. - quick hitch, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - coupler

1шт.

2

A43543

LUG - upper link

1шт.

3

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

4

129-108

NUT,3/4"-10, G5

2шт.

5

A43537

LEVER - trip, latch lug

1шт.

6

A43539

PIN - lever pivot

2шт.

7

A43538

ROD ASSY. - lock, trip lever, Includes: Ref. 8

2шт.

8

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

9

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

10

A30083

VALVE SPRING

SPRING - lock rod

2шт.

11

195-533

WASHER,1/2", SAE

- 17-32 x 1-1/16 x 3/32"

2шт.

12

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex, jam

2шт.

13

A43092

CLIP

- locking latch

2шт.

14

A65699

KNOB

- lock rod (Replaces A62078 & A65541)

2шт.

15

A43540

AXLE PIN

PIN - draft arm to coupler, 1-1/8 x 4-3/4"

2шт.

16

A43541

PIN

- upper link to coupler, 1" x 5"

1шт.

17

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

18

T50113

PIN

- clinch

3шт.

19

T32995

ADAPTER

- coupler (for Cat. I implement)

2шт.

20

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.
