Запчасти Case IH 1170 (167A) - QUICK HITCH COUPLER (09) - CHASSIS/ATTACHMENTS

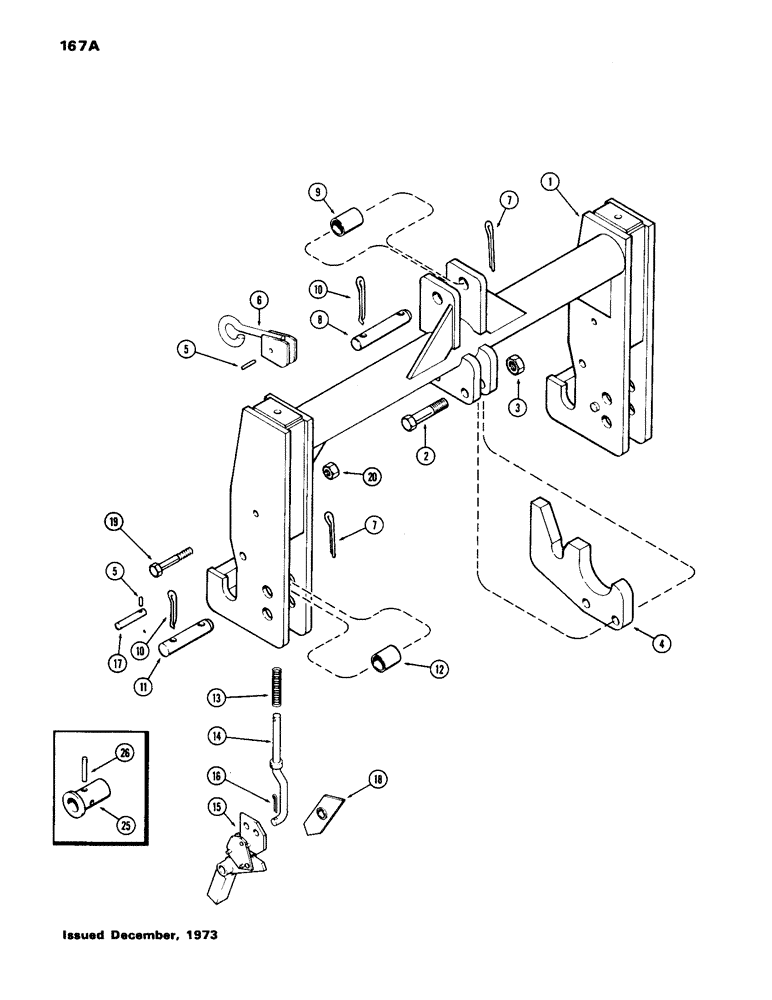

Схема запчастей Case IH 1170 - (167A) - QUICK HITCH COUPLER (09) - CHASSIS/ATTACHMENTS
19
10
26
17
7
4
12
15
8
6
14
2
10
5
5
7
20
3
25
16
13
1
9
11
18

Артикул

Название

Примечание

Количество

A65707

ATTACHMENT - hitch coupler (Mach. Item) (Replaces A62898), Includes: Ref. 1 - 26

1шт.

NSS

NOT SOLD SEPARAT

COUPLER ASSY. - quick hitch, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - quick coupler

1шт.

2

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

3

129-108

NUT,3/4"-10, G5

2шт.

4

A44475

LUG

- upper hitch

1шт.

5

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN - roll, 3/16 x 1-1/4"

4шт.

6

A44472

HANDLE

- hitch release

2шт.

7

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

8

A43541

PIN

- upper hitch, 1" x 5"

1шт.

9

A44474

SLEEVE

- upper draft arm pin

1шт.

10

T50113

PIN

- clinch

3шт.

11

A43540

AXLE PIN

PIN - draft arm, lower

2шт.

12

A43542

SLEEVE

- lower draft arm pin

2шт.

13

A44476

VALVE SPRING

SPRING - release rod

2шт.

14

A44467

ROD

- handle to tripping device

2шт.

15

A44468

LEVER

- lock, R.H.

1шт.

15

A44469

LEVER

- lock, L.H.

1шт.

16

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

17

A44473

PIN

- trip ratchet lever pin

2шт.

18

A44470

LEVER

- lower trip ratchet, R.H.

1шт.

18

A44471

LEVER

- lower trip ratchet, L.H.

1шт.

19

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

25

T32995

ADAPTER

- hitch coupler (for Cat.I implement )

2шт.

26

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

Выбрано товаров: 26
