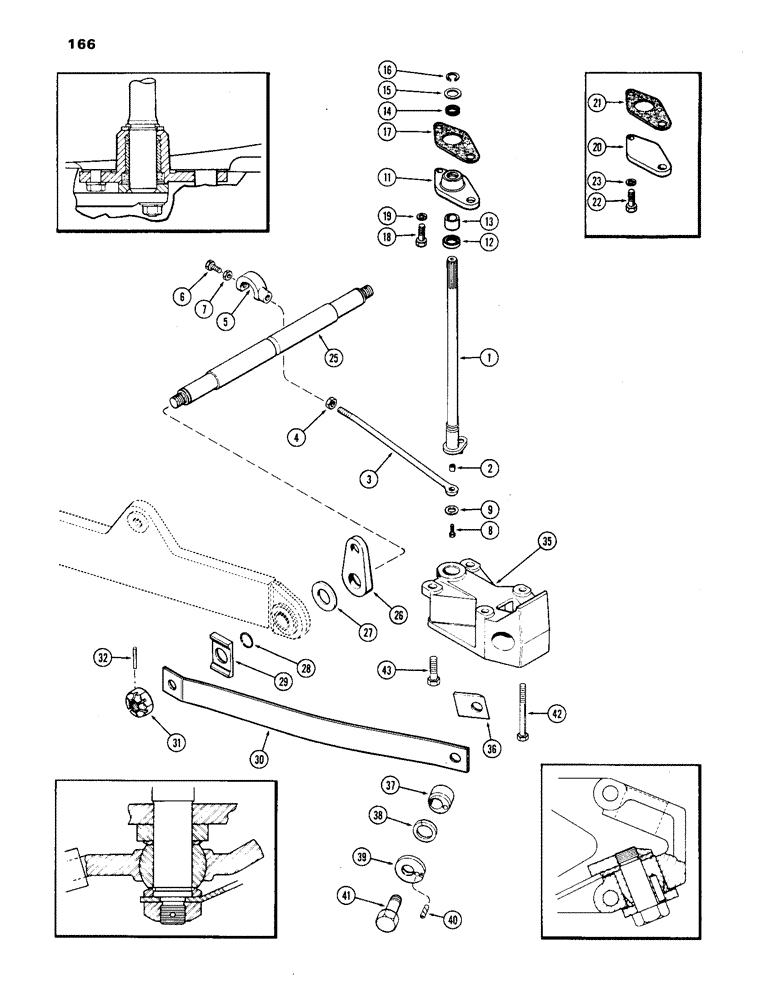

Запчасти Case IH 1170 (166) - D-O-M LOWER SENSING LINKAGE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A34834
SHAFT
- draft signal
1шт.
2
A34836
SPACER
- shaft to link, 5/16 x 1/2 x 15/32"
1шт.
3
A33405
LINK
- draft signal control
1шт.
4
25-158
JAM NUT,Jam, 1/2"-20, G5
- 1/2" N.F. hex., jam
1шт.
5
A33006
LOCK
- signal link
1шт.
6
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
1шт.
7
25-146
JAM NUT,Jam, 3/8"-16, G5
- 3/8" N.C. hex., jam
1шт.
8
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
1шт.
9
95-5
WASHER,3/8" x 7/8" x .083"
- 3/8 x 7/8 x 5/64"
1шт.
11
A32203
BUSHING
SUPPORT - signal shaft
1шт.
12
A23903
OIL SEAL
- oil, support, 1 x 1-1/2 x 1/4"
1шт.
13
A31082
BUSHING
BEARING - support, 1 x 1-1/4 x 1"
1шт.
14
A9394
RING
QUAD RING - support, 1 x 1-1/4 x 9/64"
1шт.
15
B18275
WASHER
- 1-1/32 x 1-1/2 x 12 ga.
1шт.
16
A33315
RING
SNAP RING - shaft retaining
1шт.
17
A32210
GASKET
- support
1шт.
18
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
1шт.
19
92-6
LOCK WASHER,3/8"
1шт.
20
A32387
COVER - signal shaft (used w/o hitch)
1шт.
21
A32210
GASKET
- cover
1шт.
22
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
23
92-6
LOCK WASHER,3/8"
1шт.
25
A57587
BAR
- cross, D.O.M. wishbone
1шт.
26
A32953
LINK
- support, bar
2шт.
27
A32435
GEAR
WASHER - draft arm pivot (replaces A34921)
2шт.
28
A57588
RING
SNAP RING -, Serial Range: arm-bar
2шт.
29
A57589
PLATE
- spacer
2шт.
30
A57581
SPRING
- D.O.M. wishbone
2шт.
For Satisfactory Operation It Is Recommended That Springs Be Installed In Pairs
1шт.
31
A33404
NUT
- retaining, Serial Range: spring-shaft
2шт.
32
138-2014
PIN,3/16" x 1 7/8", Coiled
2шт.
35
A61416
BRACKET
- drawbar pivot pin
1шт.
36
A57583
CLAMP
- wishbone adjusting
2шт.
37
A57582
CLAMP
CAM - wishbone adjusting
2шт.
38
A57584
RING
- cam adjusting
2шт.
39
A57585
WASHER
- clamp, adjusting cam
2шт.
41
A57943
STEP BOLT
BOLT - spring cam
2шт.
42
113-675
BOLT - 5/8 x 5-1/2" N.C. hex
2шт.
43
113-747
X
BOLT - 3/4 x 2-1/4" N.C. hex.
2шт.
Выбрано товаров: 40
