Запчасти Case IH 1170 (156) - A61465 VALVE (08) - HYDRAULICS

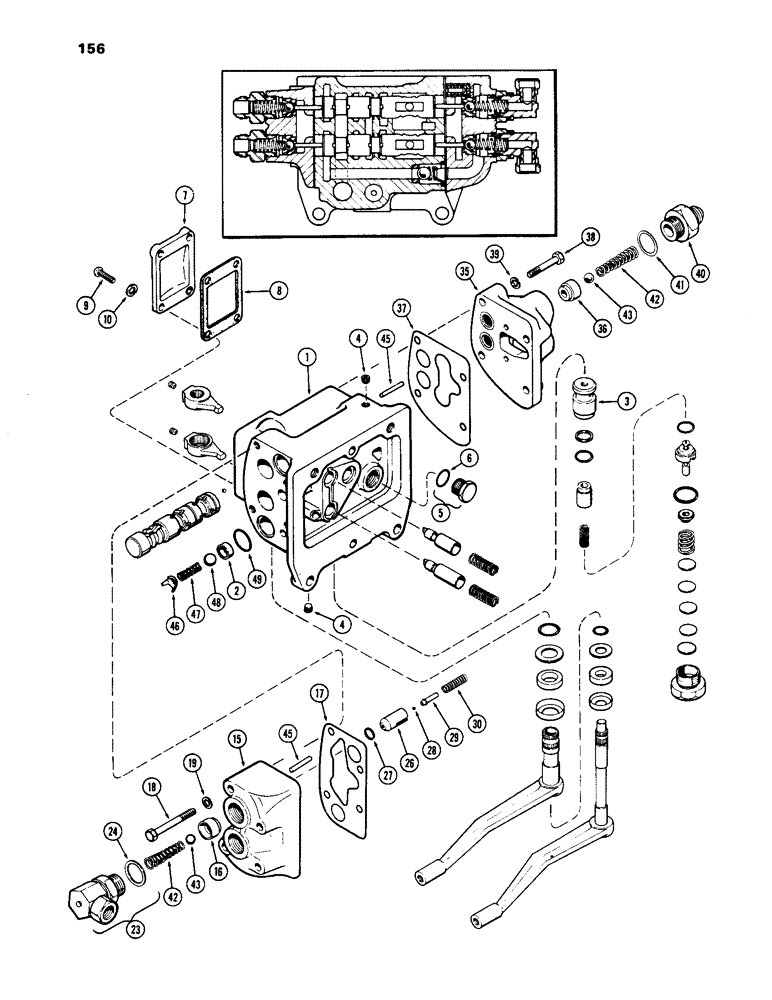

Схема запчастей Case IH 1170 - (156) - A61465 VALVE (08) - HYDRAULICS
37
46
9
49
26
16
39
10
4
29
42
40
17
1
6
43
36
23
45
43
5
47
18
4
48
15
42
28
45
38
41
7
8
3
30
27
19
2
35
24

Артикул

Название

Примечание

Количество

A61465

VALVE

ASSY. - auxiliary, Includes: Ref. 1 - 88

1шт.

1

A57534

BODY

ASSY. - valve, Includes: Ref. 2 - 4

1шт.

2

A139799

SEAT

- ball, check valve

4шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve pilot

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" P.T. hex. sckt. hd.

4шт.

5

86512512

PLUG,7/8" - 14 ORB

Body port, Incl. Ref. 6 Hex Hd, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32"

1шт.

7

A57552

CAP

- valve body

1шт.

8

A30854

GASKET

- valve body cap

1шт.

9

75-414

SCREW,Rd, 1/4" x 7/8"

- 1/4 x 7/8" N.C. rd. hd. mach.

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

A575865

HEAD ASSY. - valve, R.H., Includes: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

17

A57661

GASKET - head, R.H.

1шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

23

A57562

ADAPTER

ASSY. - swivel, R.H., Includes: Ref. 23 and 24

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - 3/4 x 15/16 x 3/32" (Not Illust.)

1шт.

26

A62273

SEAT

- thermal valve

2шт.

27

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - thermal valve

2шт.

28

211-3

BALL,1/8" Dia

- ., steel 1/8" Dia

2шт.

29

A62272

GUIDE

- ball, thermal valve

2шт.

30

A57396

SPRING

- valve

2шт.

35

A57564

VALVE

HEAD ASSY. - valve, L.H., Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

37

A57560

GASKET

- valve head, L.H.

1шт.

38

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

A57569

FITTING

- remote valve outlet

2шт.

41

2185008

"O" RING - 3/4 x 59/34 x 1/8"

2шт.

42

A30877

SPRING

- check valve

4шт.

43

211-13

BALL,1/2" Dia

- check valve 1/2" Dia

4шт.

45

A57559

SPOOL

- auxiliary

4шт.

46

A27364

GUIDE

- auxiliary ball check

4шт.

47

A27452

SPRING

- auxiliary valve

4шт.

48

211-15

BALL,5/8" Dia

- ., steel 5/8" Dia

4шт.

49

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - 15/16 x 1-1/8 x 3/32"

4шт.

Выбрано товаров: 39
