Запчасти Case IH 1170 (154) - HYDRAULIC PUMP (08) - HYDRAULICS

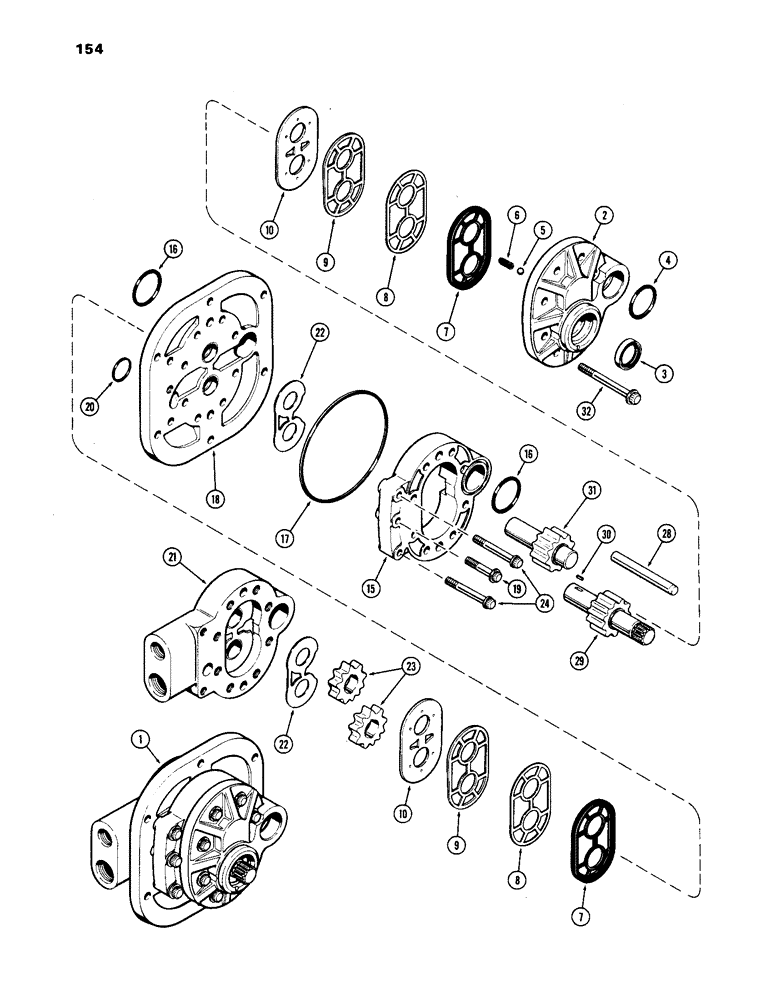

Схема запчастей Case IH 1170 - (154) - HYDRAULIC PUMP (08) - HYDRAULICS
31
2
22
7
19
17
30
16
8
3
4
9
15
24
5
23
16
22
1
32
28
20
6
10
8
9
29
10
21
7
18

Артикул

Название

Примечание

Количество

1

A62051

PUMP

PUMP ASSY. - hydraulic dual, Includes: Ref. 2 - 32

1шт.

1

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

1

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

3

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - main drive shaft

1шт.

4

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1-3/8 x 1-5/8 x 1/8"

1шт.

Part of pump repair kit P/N A42826

1шт.

5

211-6

BALL,7/32" Dia

BALL, , steel - relief valve 7/32" Dia

1шт.

Part of pump repair kit P/N A42826

1шт.

6

F9883

SPRING

SPRING - valve

1шт.

Part of pump repair kit P/N A42826

1шт.

7

A42174

SEAL

SEAL - diaphragm

2шт.

Part of pump repair kit P/N A42826

1шт.

8

A42305

GASKET

GASKET - gear cavity sealing

2шт.

Part of pump repair kit P/N A42826

1шт.

9

A42303

GASKET

GASKET - back-up

2шт.

Part of pump repair kit P/N A42826

1шт.

10

A42304

DIAPHRAGM

DIAPHRAGM - pump

2шт.

Part of pump repair kit P/N A42826

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - front (Order A62051)

1шт.

16

26820

"O" RING - 1-9/16 x 1-3/4 x 3/32"

2шт.

Part of pump repair kit P/N A42826

1шт.

17

A42301

O-RING,5.250" x 5.375" x .062"

"O" RING - 5-1/4 x 5-3/8 x 1/16"

1шт.

Part of pump repair kit P/N A42826

1шт.

18

NSS

NOT SOLD SEPARAT

FLANGE - pump

1шт.

19

166-29

12 PT SCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

SCREW - 5/16 x 1-3/4" N.C. 12 point cap

1шт.

20

A42302

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

GASKET - pressure port

1шт.

Part of pump repair kit P/N A42826

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - pump end

1шт.

22

A43381

LARGE PLATE

PLATE, LARGE PLATE - thrust (replaces D41322)

2шт.

Part of pump repair kit P/N A42826

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - rear pump displacement

2шт.

24

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

SCREW - 5/16 x 2-1/2" N.C. 12 point cap

2шт.

28

NSS

NOT SOLD SEPARAT

PIN - dowel, covers to flange, 7/16 x 2-3/4"

2шт.

29

NSS

NOT SOLD SEPARAT

GEAR - drive, main shaft & pump

1шт.

30

NSS

NOT SOLD SEPARAT

KEY - gear, 1/8 x 3/16 x 3/8"

1шт.

Part of pump repair kit P/N A42826

1шт.

31

NSS

NOT SOLD SEPARAT

GEAR - idler, main shaft & pump

1шт.

32

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - 3/8 x 3-1/2" N.C. 12 point cap

8шт.

CASA42826

KIT

- pump repair, Includes: Ref. 3 thru 10, 16, 17, 20, 22 and 30

1шт.
