(148) - HYDRAULIC SYSTEM, WITH P.T.O.

Запчасти Case IH 1170 (148) - HYDRAULIC SYSTEM, WITH P.T.O. (08) - HYDRAULICS

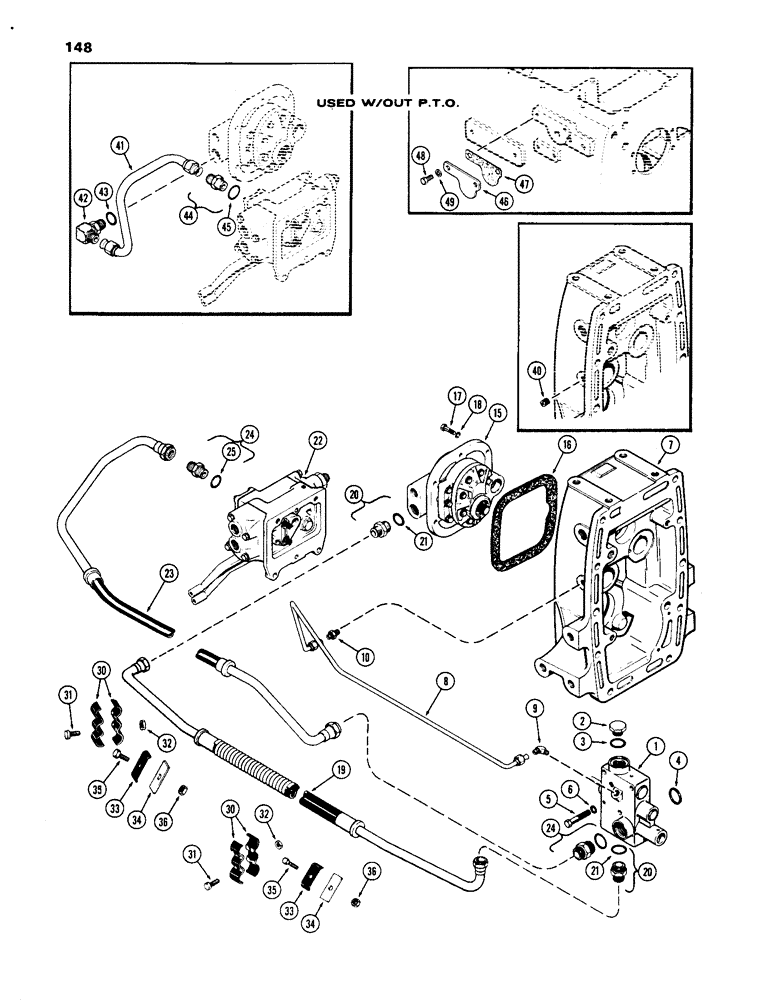

Схема запчастей Case IH 1170 - (148) - HYDRAULIC SYSTEM, WITH P.T.O. (08) - HYDRAULICS
21
49
24
9
36
16
7
20
6
25
22
24
43
42
19
5
21
2
23
30
35
32
46
15
33
40
44
3
31
18
33
41
48
30
4
20
45
34
1
31
19
35
47
34
36
8
32
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A60270

VALVE

VALVE ASSY. - regulator (See Figure 152)

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

PLUG, , Assy., 3/4" Tube, Includes: Ref. 3 Hex Hd, 1 1/16"-12 ORB

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

4

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 1 x 3/4 x 1/8"

1шт.

5

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex.

3шт.

6

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. & hyd. pump (Order A62190)

1шт.

8

A60289

TUBE

TUBE - regulator valve to P.T.O. housing (Replaces A61778)

1шт.

9

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

ELBOW, (3/8" tube) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

10

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - 1/4" P.T., 3/8" tube

1шт.

15

A62051

PUMP

PUMP ASSY. - hydraulic (See Figure 154)

1шт.

15

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

15

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

16

A32096

GASKET

GASKET - pump

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

19

A64479

TUBE ASSY.

TUBE - regulator valve to pump (replaces A62546)

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - 1-1/16" P.T., 3/4" tube, Incl. Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

22

A61465

VALVE

VALVE ASSY. - suxiliary (See Figures 156 and 158)

1шт.

23

A64477

TUBE

Tube regulator valve to auxiliary valve (Replaces A61777)

1шт.

24

2185064

CONNECTOR ASSY. - 1-1/16" P.T., 3/4" tube, Includes: Ref. 25

2шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

30

A60862

CLAMP

CLAMP - tube

4шт.

31

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

4шт.

32

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16" N.C. hex.

4шт.

33

A61272

CLAMP

CLAMP - tube

2шт.

34

A60864

PLATE

PLATE - clamp mounting

2шт.

35

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

36

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16" N.C. hex.

2шт.

A42884

KIT

KIT - seal (Incl. Items 9, 15, 17, 22, 28 & 35)

1шт.

40

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG, , Pipe, w/o PTO Hex Soc, 1/4"-18 NPTF

1шт.

41

A60294

TUBE

TUBE - pump to auxiliary valve, w/o PTO

1шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW ASSY. - 90deg., w/o PTO, Incl. Ref. 43

1шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8", w/o PTO

1шт.

44

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - 1-1/16" P.T., 3/4" tube, w/o PTO, Incl. Ref. 45

1шт.

45

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8", w/o PTO

1шт.

46

A60295

COVER - oil return, w/o PTO

1шт.

47

A60296

GASKET

GASKET - cover, w/o PTO

1шт.

48

A60296

GASKET

BOLT - 3/8 x 3/4" N.C. hex., w/o PTO

2шт.

49

92-6

LOCK WASHER,3/8"

LOCK WASHER, , w/o PTO 3/8"

2шт.

Item #2

1шт.
