Запчасти Case IH 1170 (142) - REMOTE HYDRAULIC CONTROLS, DRAFT CONTROLS (08) - HYDRAULICS

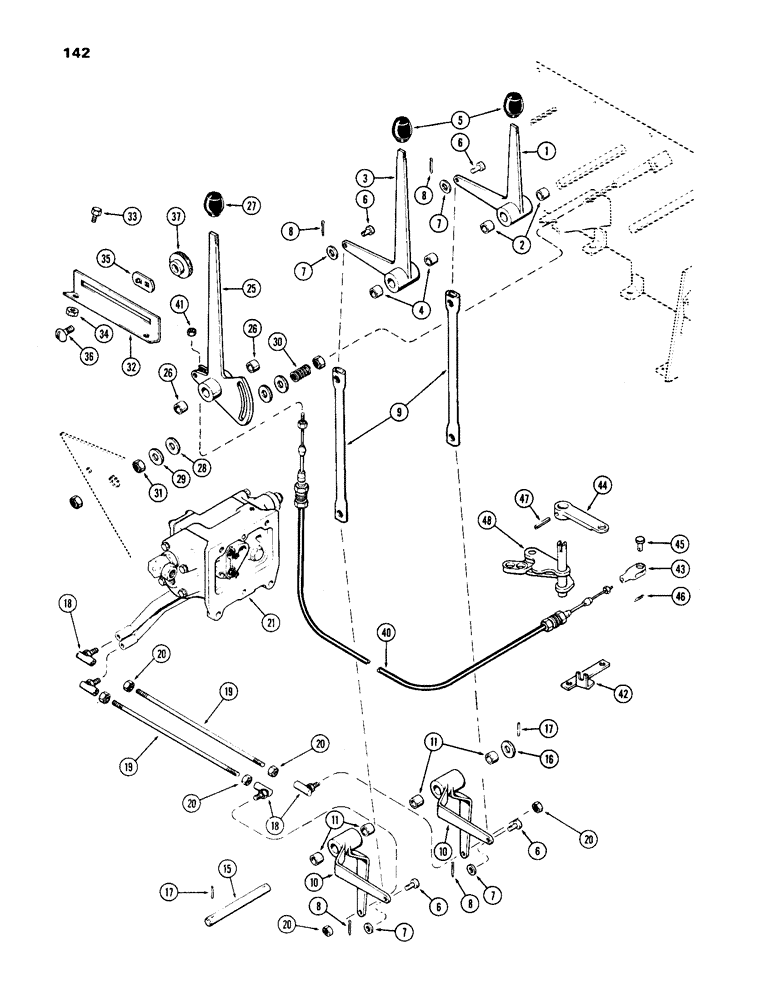

Схема запчастей Case IH 1170 - (142) - REMOTE HYDRAULIC CONTROLS, DRAFT CONTROLS (08) - HYDRAULICS
42
28
4
20
10
27
11
36
6
6
33
17
46
6
26
11
15
5
7
44
35
2
19
21
17
32
18
3
16
20
47
1
7
20
31
46
34
7
8
8
8
26
10
25
8
7
20
18
37
6
48
9
40
20
43
19
29
41
30

Артикул

Название

Примечание

Количество

1

A59525

LEVER

ASSY. - remote. inner, Includes: Ref. 2

1шт.

2

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

3

A59523

LEVER

ASSY. - remote, outer, Includes: Ref. 4

1шт.

4

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

5

A62078

KNOB

- remote levers

2шт.

6

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

7

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16"

4шт.

8

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

9

A61659

ROD

LINK - remote levers, upper

2шт.

10

A59527

LEVER ASSY. - remote, bellcrank, Includes: Ref. 11

2шт.

11

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

15

A59529

SHAFT

- lever

1шт.

16

195-41

WASHER,5/8"

1шт.

17

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, 1/8" x 1 1/8", Slotted

2шт.

18

A60604

BALL JOINT

- remote lever rods

4шт.

19

A59519

ROD

- remote lever, lower

2шт.

20

25-115

NUT,5/16"-24, G5

- 5/16 " NF hex

6шт.

21

A61465

VALVE

ASSY. - auxiliary (See Figures 156 and 158)

1шт.

25

A61070

LEVER ASSY. - hand, D.O.M., Includes: Ref. 26

1шт.

26

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

27

A62078

KNOB

- D.O.M. lever

1шт.

28

A61069

DISC

- friction, lever

2шт.

29

195-2035

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga.

2шт.

30

A26546

SPRING

- disc tension

1шт.

31

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex., jam

2шт.

32

A59273

BRACKET

QUADRANT - D.O.M. lever

1шт.

33

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

34

131-113

SPRING NUT,J, Ret, 5/16"-18

- 5/16" N.C. hex

2шт.

35

G15950

STOP

- quadrant adjustable

1шт.

36

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

37

G15951

NUT

- knurled, stop adjusting

2шт.

40

A59522

CABLE

- control, D.O.M.

1шт.

41

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., w/external tooth washer

1шт.

42

A61037

BRACKET

- cable

1шт.

43

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to draft sensing linkage

1шт.

44

A59521

LEVER

- D.O.M. lwoer

1шт.

45

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16"

1шт.

46

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

47

138-2028

PIN,3/16" x 1 1/4", Coiled

1шт.

48

A32310

LINK

- draft sensing (Link "C")

1шт.

Выбрано товаров: 40
