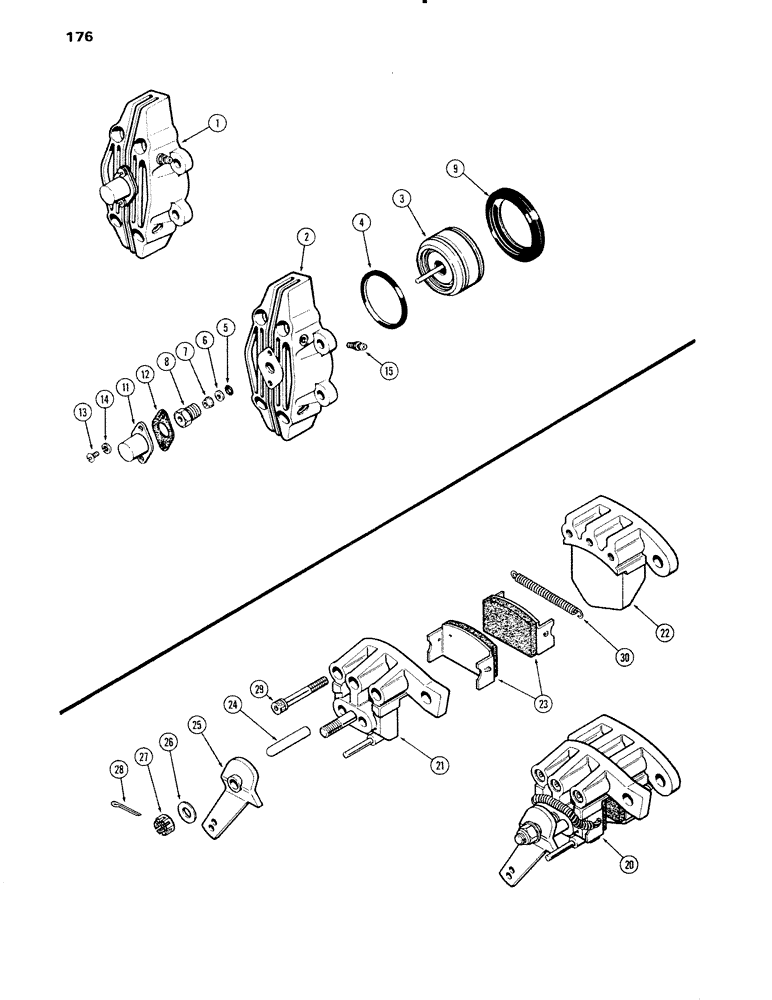

Запчасти Case IH 1090 (176) - CALIPER BRAKE ASSEMBLY (06) - POWER TRAIN

1

A65338

BRAKE ASSY.

- caliper, R.H. (Replaces A62126), Includes: Ref. 2 - 15

1шт.

1

A65339

BRAKE

ASSY. - caliper, L.H. (Replaces A62127), Includes: Ref. 2 - 15

1шт.

2

A43310

HOUSING

- brake, R.H.

1шт.

2

A43311

HOUSING

- brake, L.H.

1шт.

3

A43312

PISTON

ASSY. - brake, Includes: Ref. 4

1шт.

4

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston outer seal

1шт.

4a

A23535

OIL SEAL

RING - backup

1шт.

5

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - brake pin

1шт.

6

A43314

WASHER

- spacer

1шт.

7

A43315

COLLAR

COLLET - brake

1шт.

8

A43316

NUT

- collet torque

1шт.

9

A43313

BOOT

- piston dust

1шт.

11

A43318

COVER

- brake

1шт.

12

A43317

GASKET

- cover

1шт.

13

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 - 24 x 1/2" rd. hd., sltd.

2шт.

14

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

15

A43319

BLEEDER,Bleeder, 5/16" - 24 x 0.64"

- brake

1шт.

20

A61304

BRAKE ASSY. - parking actuator, R.H., Parking Break Assembly

1шт.

20

A61305

BRAKE ASSY. - parking actuator, L.H. (R.H. shown), Parking Break Assembly, Includes: Ref. 21 - 30

1шт.

21

A43302

HOUSING - w/stop pin & stud, L.H. (R.H. shown), Parking Break Assembly

1шт.

21

A43306

HOUSING - w/stop pin & stud, R.H., Parking Break Assembly

1шт.

22

A43303

HOUSING - carrier, R.H., Parking Break Assembly

1шт.

22

A43307

HOUSING - carrier, L.H. (R.H. shown), Parking Break Assembly

1шт.

23

A43864

BRAKE PAD

LINER - brake (Replaces A43299), Parking Break Assembly

2шт.

24

A43301

PIN

- brake thrust, Parking Break Assembly

2шт.

25

A43304

LEVER - cam, R.H., Parking Break Assembly

1шт.

25

A43308

LEVER - cam, L.H., Parking Break Assembly

1шт.

26

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32", Parking Break Assembly

1шт.

27

A43305

NUT - cam retainer lock, Parking Break Assembly

1шт.

28

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), , Parking break assembly 5/32" x 1"

2шт.

29

61-644

SCREW

- 3/8 x 2-3/4" N.C. sckt. hd., cap, Parking Break Assembly

3шт.

30

A43300

SPRING

- liner retaining, Parking Break Assembly

2шт.
