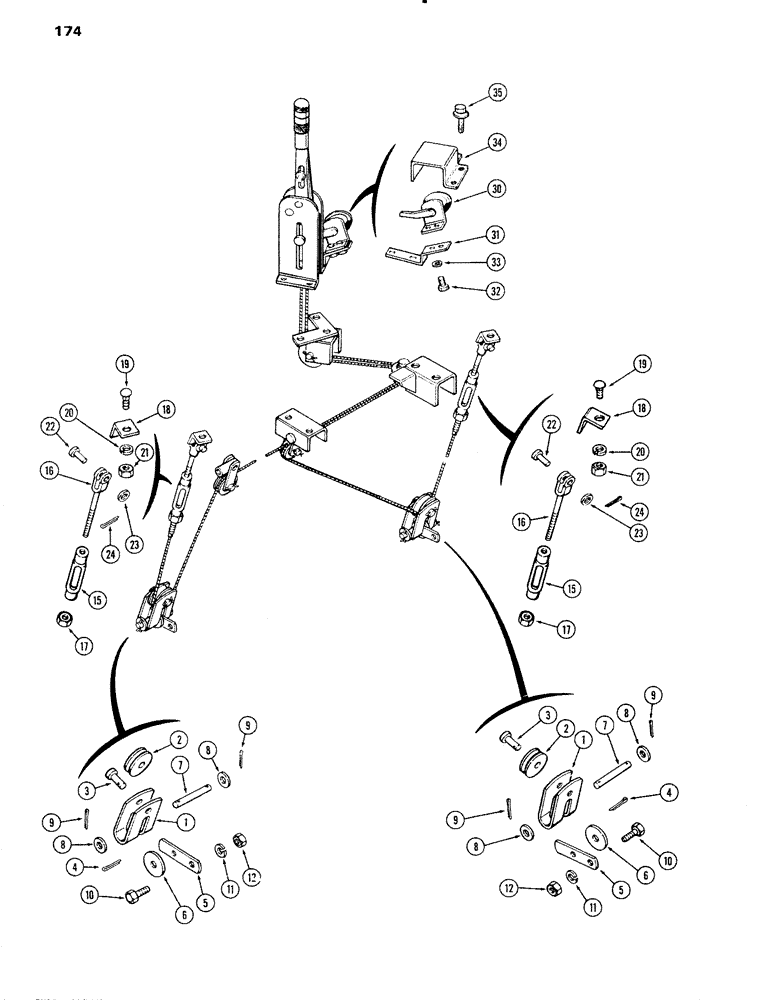

Запчасти Case IH 1090 (174) - PARKING BRAKE, LOWER (06) - POWER TRAIN

1

A62373

SUPPORT - pulley, lower

2шт.

2

A59416

SHEAVE

PULLEY - brake single cable, lower

2шт.

3

A59419

PIN,7.9mm OD x 30.96mm L

- clevis, 7/16 x 1-1/8"

2шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

5

A62374

STRAP -, Serial Range: support-actuator

2шт.

6

A62375

SPACER - strap

2шт.

7

A62376

PIN

-, Serial Range: strap-support

2шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 3/32"

4шт.

9

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

49785

TURNBUCKLE

- cable

2шт.

16

A61501

ROD

END - brake cable

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

18

A61498

SUPPORT - rod end

2шт.

19

111-236

BOLT - 5/16 x 7/8" N.C. carr.

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

22

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Brake rod end 5/16" x .940"

2шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 3/32"

2шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

30

A33977

SWITCH

- brake light, parking

1шт.

31

A60542

BRACKET - switch, parking brake light switch

1шт.

32

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10 x 3/8" N.F. rd. hd. mach., parking brake light switch

2шт.

33

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Parking brake light switch Int Tooth, #10

1шт.

34

A59422

COVER - light switch, parking brake light

1шт.

35

187-1053

SELF-TAP SCREW,Truss Hd, #10 x 1/2"

SCREW - #10 x 1/2" truss hd., self-tapping, parking brake light switch

3шт.
