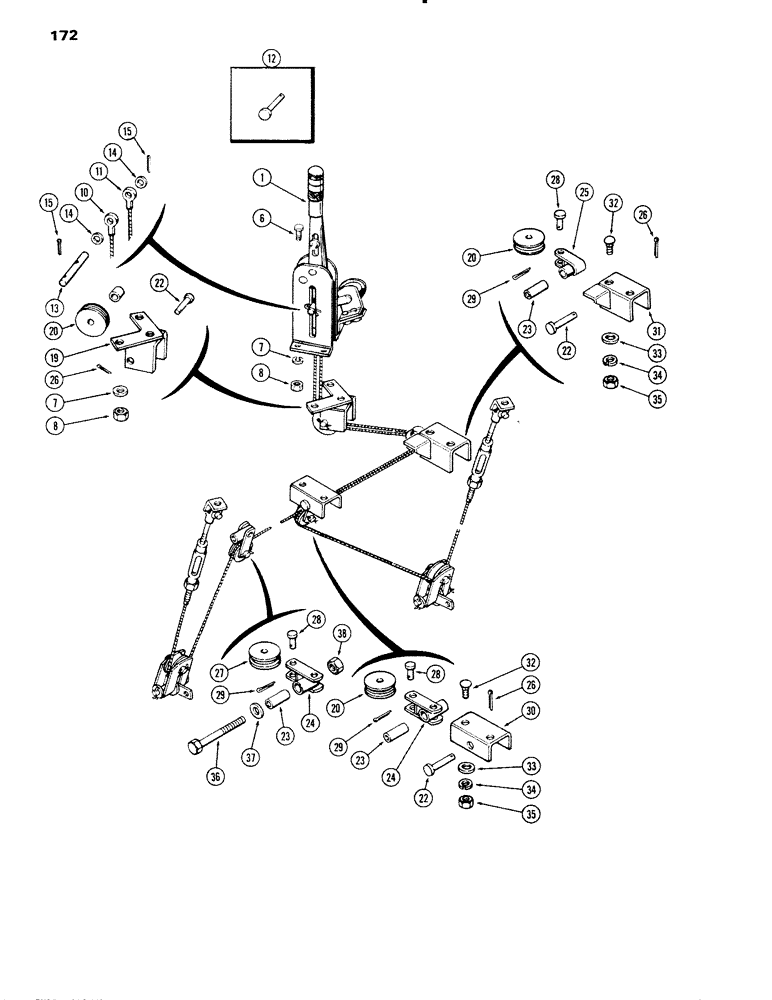

Запчасти Case IH 1090 (172) - PARKING BRAKE, UPPER (06) - POWER TRAIN

1

A59410

LEVER

ASSY. - hand brake

1шт.

A42204

PIN

- lever

1шт.

D47261

WASHER

- spring

1шт.

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 16 ga.

1шт.

C14652

RING

- pin retaining

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

10

A62222

CABLE

- brake (45" long)

1шт.

11

A62223

CABLE

- brake (64" long)

1шт.

12

A59153

CLEVIS PIN

PIN - clevis, 7/16 x 2-1/4" (Order Ref. 13, 14 & 15)

1шт.

13

A76379

PIN

- straight (5/16 x 2-5/8") (Replaces A59153)

1шт.

14

195-21

WASHER,5/16"

(11/32 x 11/16 x 1/16") 5/16"

2шт.

15

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

19

A62219

SUPPORT - pulley, primary

1шт.

20

A62224

PULLEY - brake dual cable, upper

3шт.

21

A61496

SPACER - pulley

1шт.

22

A61495

PIN - clevis, 7/16 x 1-31/62"

3шт.

23

A62120

BUSHING - spacer support

3шт.

24

A62117

SUPPORT - pulley, upper, R.H.

2шт.

25

A62466

SUPPORT - pulley, upper, L.H.

1шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

27

A59416

SHEAVE

PULLEY - brake single cable, upper

1шт.

28

A59419

PIN,7.9mm OD x 30.96mm L

- clevis, 7/16 x 1-1/8"

3шт.

29

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

30

A62025

CHANNEL - pulley support, R.H.

1шт.

31

A62480

CHANNEL

- pulley support, L.H.

1шт.

32

111-236

BOLT - 5/16 x 7/8" N.C. carr.

4шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 3/32"

4шт.

34

92-5

LOCK WASHER,5/16"

4шт.

35

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

36

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- 5/16 x 3-3/4" N.C. hex.

1шт.

37

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

38

131-173

NUT,5/16"-18, GA

- 5/16" N.C. hex., self locking

1шт.
