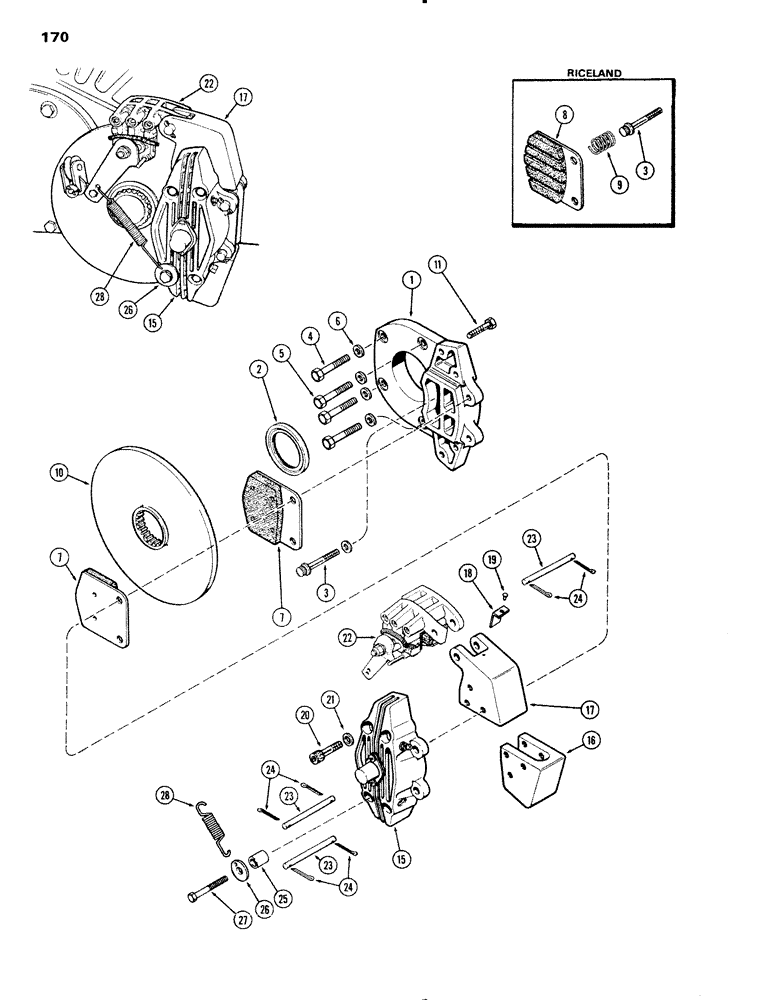

Запчасти Case IH 1090 (170) - DIFFERENTIAL BRAKE (06) - POWER TRAIN

1

A61311

ADAPTER - brake

2шт.

2

A57658

OIL SEAL

- adapter

2шт.

3

166-120

SPECIAL BOLT,Flg, 5/8" - 11 x 3 1/4"

SCREW - 5/8 x 3-1/4" N.C. Ferry Cap

2шт.

4

A61300

BOLT - 5/8 x 3-1/4" N.C. hex., jay-lok

4шт.

5

113-651

BOLT

- 5/8 x 3-1/4" N.C. hex.

4шт.

6

A29881

WASHER

- 41/64 x 1-1/16 x 1/16"

10шт.

7

A61307

PAD

- brake, standard (solid lining)

4шт.

8

A43363

LINING

PAD - brake, Riceland (slotted lining)

4шт.

9

A27877

SPRING

- brake pad tension (Riceland Only) (fits over cap screw 166-120)

2шт.

10

A61301

DISC

- brake caliper

2шт.

11

113-470

X

BOLT - 1/2 x 2-1/4" N.C. hex.

8шт.

15

A65338

BRAKE ASSY.

- caliper, R.H. (Replaces A62126)(See Fig. 176)

1шт.

15

A65339

BRAKE

ASSY. - caliper, L.H. (Replaces A62127)(See Fig. 176)

1шт.

16

A62007

SPACER - brake, lower

2шт.

17

A62008

SPACER

- brake, upper

2шт.

18

A62462

SHIM,.005" Thk

Parking brake .005" Thk

1шт.

18

A62463

SHIM,.010" Thk

Parking brake .010" Thk

1шт.

18

A62464

SHIM - parking brake (.0179")

1шт.

19

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- #6 x 1/4" rd. hd. drive

2шт.

20

166-92

SCREW,1/2" - 13 x 2 3/4"

- 1/2 x 2-3/4" N.C. Ferry cap

8шт.

21

A37029

WASHER

- 33/64 x 7/8 x 1/8"

8шт.

22

A61304

BRAKE ASSY. - parking, R.H. (See Figure 176)

1шт.

22

A61305

BRAKE ASSY. - parking, L.H. (See Figure 176)

1шт.

23

A61306

PIN

- brake

6шт.

24

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

12шт.

25

A62063

SPACER

- brake spring

2шт.

26

A62062

RETAINER - spring

2шт.

27

113-458

X

BOLT - 1/2 x 4" N.C. hex.

2шт.

28

A36607

SPRING

- parking brake return

2шт.
