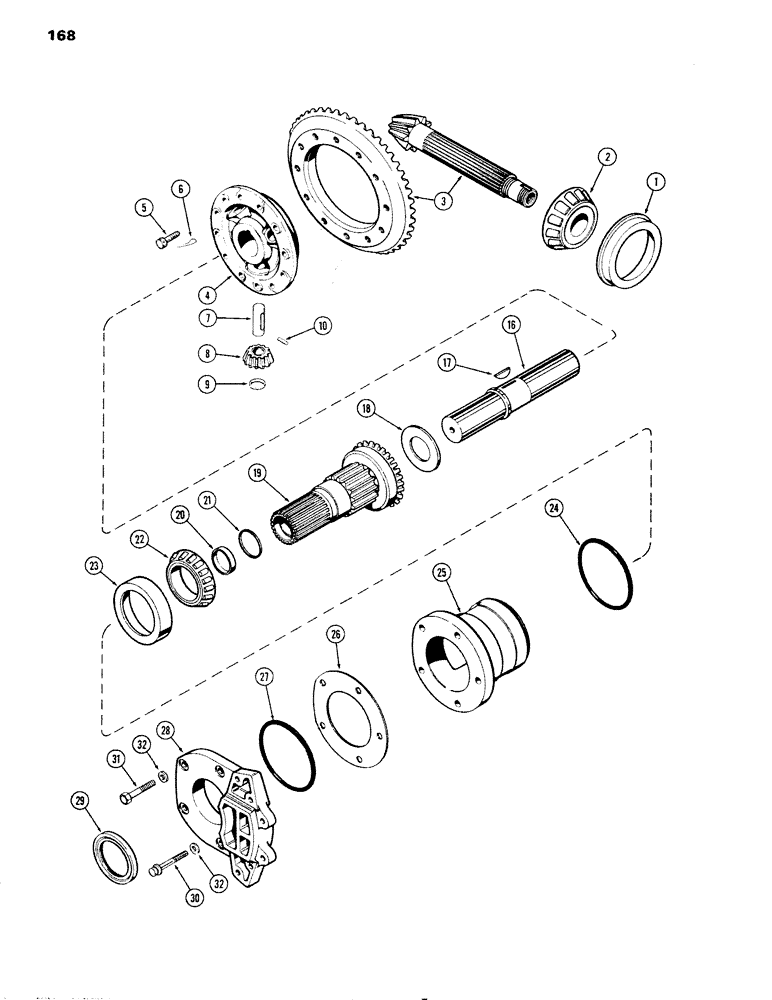

Запчасти Case IH 1090 (168) - DIFFERENTIAL (06) - POWER TRAIN

1

A34332

CUP

BEARING - tapered flange cup, rear countershaft

1шт.

2

A34333

CONE

BEARING - tapered cone, rear countershaft

1шт.

3

A64188

GEAR

SET - countershaft & ring gear (Replaces A34574)

1шт.

4

A33905

WHEEL

- center, differential

1шт.

5

A32769

BOLT

- wheel to ring gear, drilled head

12шт.

6

391-705

ELECTRICAL WIRE

WIRE - 18 ga.

6шт.

7

A62214

PIN

- differential pinion gear (Replaces A34174)

4шт.

8

A64746

GEAR

- pinion, bevel (Replaces A62988)

4шт.

9

A33539

WASHER

- thrust, gear

4шт.

10

138-2019

PIN,5/16" x 7/8", Coiled

4шт.

16

A62902

SHAFT

- differential (Replaces A34800)

1шт.

17

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - Woodruff, 3/8 x 2-3/4"

1шт.

18

A62407

WASHER

- thrust, gear (Replaces A58448)

2шт.

19

A64754

GEAR

ASSY. - differential side (Replaces A61308), Includes: Ref. 20 and 21

2шт.

20

41-1040

PLUG,Cup, 2 1/2"

- 2-1/2" cup type

1шт.

21

A61310

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

"O" RING - 2-31/64 x 2-5/8 x 1/16"

1шт.

22

A34340

ROLLER BEARING

BEARING - tapered cone, gear

2шт.

23

A34343

BEARING CUP

BEARING - tapered, cup, gear

2шт.

24

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - 6-1/2 x 6-1/4 x 1/8"

2шт.

25

A60493

SLEEVE

ASSY. - support

2шт.

26

A60490

SHIM,.003" Thk

Sleeve .003" Thk

1шт.

26

A60491

SHIM,.005" Thk

Sleeve .005" Thk

1шт.

26

A60492

SHIM,.010" Thk

Sleeve .010" Thk

1шт.

27

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING - housing

2шт.

28

A61311

ADAPTER - differential brake

2шт.

29

A57658

OIL SEAL

- oil

2шт.

30

166-120

SPECIAL BOLT,Flg, 5/8" - 11 x 3 1/4"

SCREW - 5/8 x 3-1/4" N.C. Ferry cap, self sealing

2шт.

31

A61300

BOLT - 5/8 x 3-1/4" N.C. hex. locking

8шт.

32

A64303

WASHER

- 41/64 x 1-1/16 x 1/16" (Replaces A29881)

10шт.
