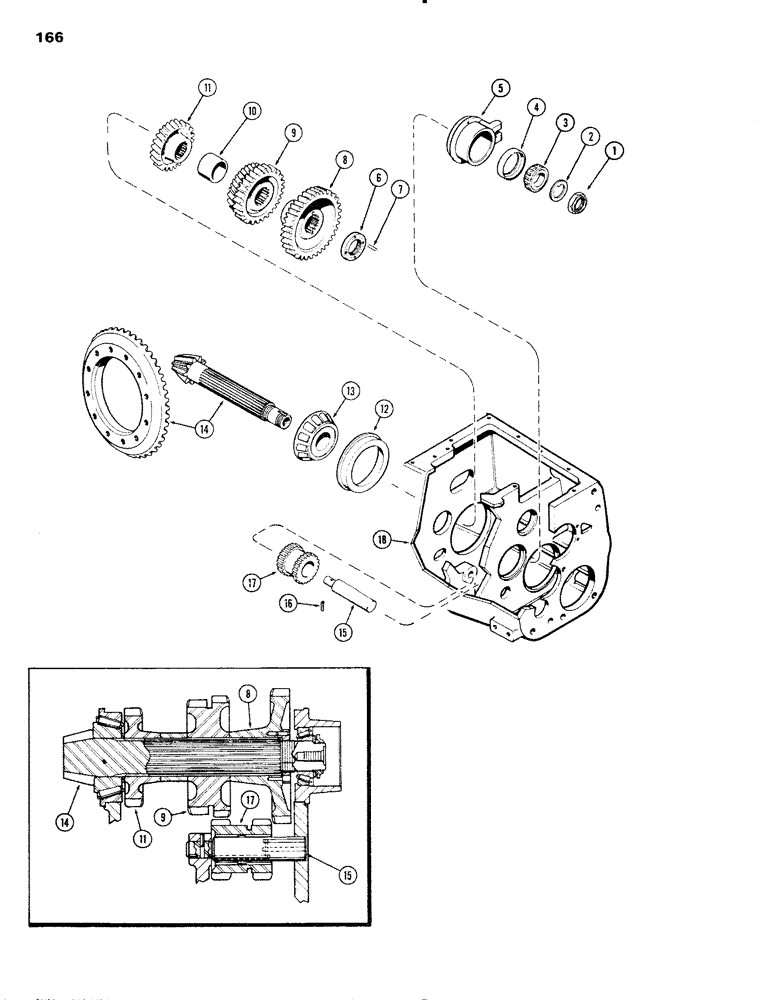

Запчасти Case IH 1090 (166) - COUNTER AND REVERSE IDLER SHAFTS, MECHANICAL SHIFT (06) - POWER TRAIN

1

A60019

NUT

- lock, countershaft front bearing

1шт.

2

A28170

WASHER

- thrust, bearing

1шт.

3

A32764

ROLLER BEARING,1.875" ID x 1"

BEARING - tapered cone, front

1шт.

4

A32763

CUP

BEARING - tapered cup, front

1шт.

5

A61820

CARRIER

- bearing

1шт.

6

A61115

NUT

- lock, countershaft gear

1шт.

7

138-2053

PIN,1/4" x 1 1/4", Coiled

1шт.

8

A61893

GEAR

- 1st speed, driven

1шт.

9

A58146

GEAR

- cluster, 2nd & 3rd speed, driven

1шт.

10

A57651

BUSHING

SPACER - countershaft gear

1шт.

11

A57445

GEAR

- 4th speed, driven

1шт.

12

A34332

CUP

BEARING - taper flanged cup, rear

1шт.

13

A34333

CONE

BEARING - tapered cone, rear

1шт.

14

A64188

GEAR

SET - countershaft & ring gear (Replaces A34574)

1шт.

15

A62910

SHAFT

- idler, reverse

1шт.

16

138-224

LOCK PIN,5/16" x 3/4", Slotted

PIN, 5/16" x 3/4", Slotted

1шт.

17

A58141

GEAR

ASSY. - reverse idler

1шт.

18

A58972

HOUSING - transmission

1шт.
