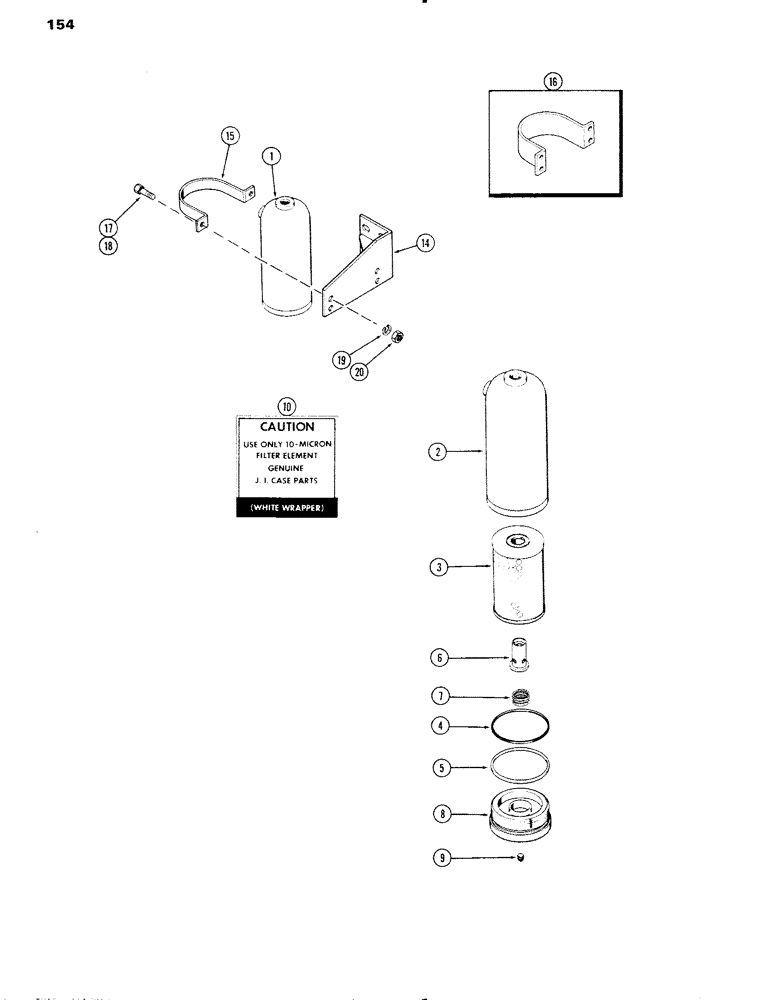

Запчасти Case IH 1090 (154) - HYDRAULIC OIL FILTER, POWER SHIFT (06) - POWER TRAIN

1

A60766

SPROCKET

FILTER ASSY. - hydraulic oil (10 Micron), Includes: Ref. 2 - 9

1шт.

2

A60767

BODY

- oil filter

1шт.

3

A62871

ELEMENT

KIT - (Replaces A61235), Includes: Ref. 4 and 5

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 9/64"

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

6

D37207

VALVE

- relief

1шт.

7

D31212

SPRING

- retaining

1шт.

8

A60765

CAP

- end

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" sq. hd. pipe

1шт.

10

321-1295

DECAL

- warning, oil filter

1шт.

14

A62650

BRACKET

- filter mounting

1шт.

15

A65004

CLAMP - filter to bracket (Replaces A60857)

1шт.

16

A60857

CLAMP - filter to bracket (Order A65004)

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Use only 1 w/A65004) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. (use only 1 w/A65004)

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.
