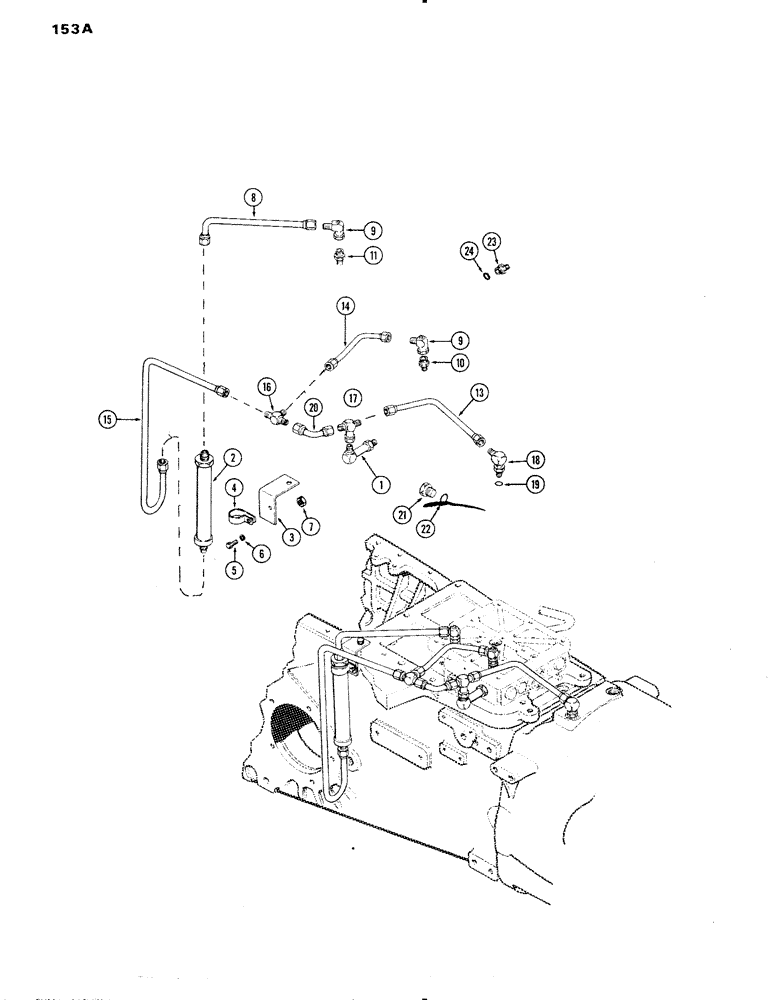

Запчасти Case IH 1090 (153A) - HYDRAULIC SHUTTLE VALVE (06) - POWER TRAIN

A65063

KIT

- shuttle valve, Includes: Ref. 1 - 24

1шт.

1

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

- long, control valve (3/4" - 16)

1шт.

2

A65064

VALVE

ASSY. - shuttle

1шт.

3

A65068

BRACKET - valve mounting

1шт.

4

A65069

CLAMP,1 3/8", 5/16" Bolt

- valve to bracket

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

8

A65070

TUBE

- valve to C1 clutch

1шт.

9

A65071

ELBOW

- w/check valve (1/4" P.T. x 3/4" - 16)

2шт.

10

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

NIPPLE - pipe, 1/4 x 1/8"

1шт.

11

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) 1/4"-18 NPTF

1шт.

13

A65073

TUBE - tee to clutch housing

1шт.

14

A65075

TUBE - tee to C4 clutch

1шт.

15

A65077

TUBE -, Serial Range: valve-tee

1шт.

16

218-594

TEE,3/4"-16, 37 Degree

- union, 1/2" tube x 3/4" - 16

1шт.

17

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel, 1/2" tube x 3/4" - 16

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Clutch housing, 1/2" tube, Includes: Ref. 19 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

20

A65074

TUBE -, Serial Range: tee-tee

1шт.

21

214389

PLUG,3/4" - 16 ORB

Includes Ref. 22 Hex Hd, 3/4"-16 ORB

1шт.

23

A65072

ADAPTER

- restrictor (3/4" tube x 1-1/16" - 12), Includes: Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 15/16 x 1-1/16 x 1/8"

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 5/8 x 7/8 x 1/8"

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 5/8 x 7/8 x 1/8"

1шт.
