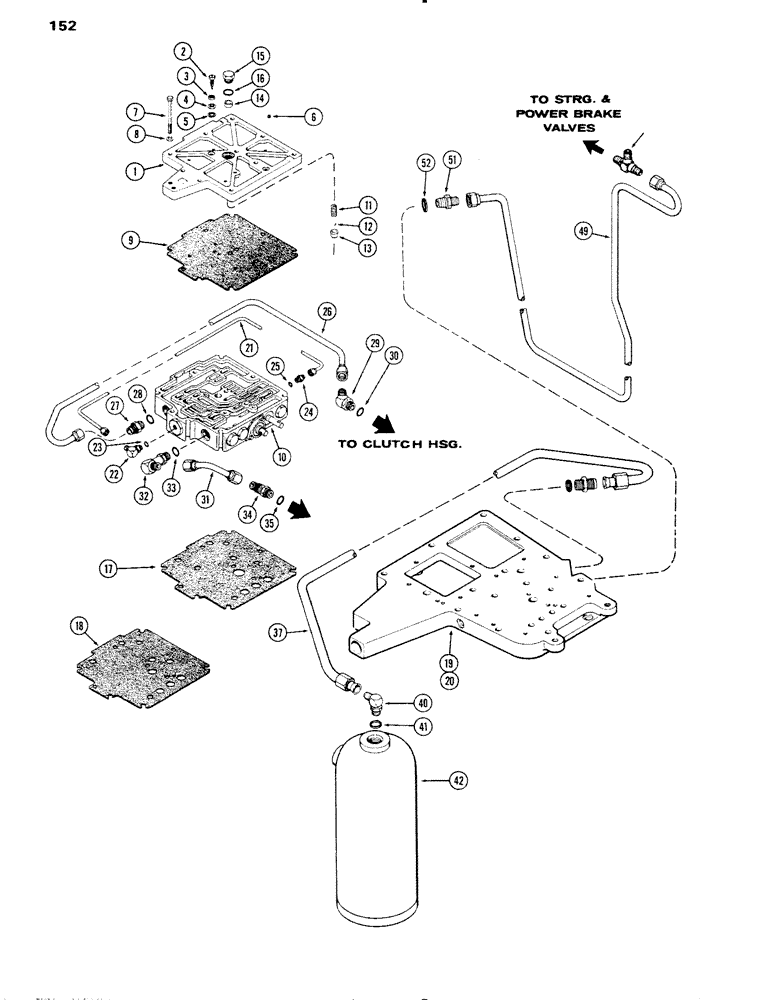

Справочник запчастей Case IH 1090 (152) - TRANSMISSION CONTROL VALVE, COVERS, GASKET AND TUBES, POWER SHIFT (06) - POWER TRAIN со схемами

1

A62105

COVER - transmission control valve

1шт.

2

A59073

NEEDLE

- retard orifice

2шт.

3

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex Jam, 1/4"-28, G5

2шт.

4

A59074

SEAL

- retard needle

2шт.

5

122-13

GROMMET

BURR - riveting, 1/4" steel

2шт.

6

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" sq. hd. pipe

5шт.

7

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. rd. hd.

10шт.

8

92-6

LOCK WASHER,3/8"

10шт.

9

A62270

GASKET

- cover

1шт.

10

A62634

CONTROL VALVE

VALVE ASSY. - transmission control (Repairs Figure 156) (1st used trans. SN2366001)(Replaces A61984)

1шт.

10

A61984

VALVE

ASSY. - trans. control (Used prior to tran. SN2366001) (Order A62634 valve & A62637 gasket) (Repairs Figure 156A)

1шт.

11

A61696

SPRING

- valve detent

1шт.

12

211-12

BALL,7/16 Dia

- detent, 7/16" dia.

1шт.

13

A59062

SLEEVE

- detent

1шт.

14

A62107

SPACER

- detent plug

1шт.

15

A62106

PLUG

- detent, Includes: Ref. 16

1шт.

17

A62637

GASKET

- valve to cover (1st used trans. SN2366001)

1шт.

18

A62269

GASKET

- valve to cover (Used prior to trans. SN2366001)

1шт.

19

A62638

COVER - transmission (1st used trans. SN2366001)

1шт.

20

A61682

COVER - transmission (Used prior to trans. SN2366001)

1шт.

21

A60656

TUBE

- reverse lock-out pilot

1шт.

22

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY. - 90 deg. adjustable for 1/4" tube, Includes: Ref. 23

1шт.

23

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - 23/64 x 1/4 x 5/64"

1шт.

24

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR ASSY. - for 1/4" tube, 9/16" thrd., Incl. Ref. 25

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - 23/64 x 1/4 x 5/64"

1шт.

26

A60269

TUBE

- valve to clutch housing, L.H.

1шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Assy, For 1/2" tube, Incl. Ref 28 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

29

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 45 deg. adjustable for 1/2" tube, Incl. Ref 30

1шт.

31

A62101

TUBE

- valve to clutch housing, R.H.

1шт.

32

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSY. - 90 deg. adjustable for 1/2" tube, Includes: Ref. 33

1шт.

34

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 45 deg. adjustable for 1/2" tube, Incl. Ref 35

1шт.

37

A61780

TUBE

-, Serial Range: filter-valve

1шт.

38

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy - for 3/4" tube, Incl. Ref. 39 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

40

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, for 3/4" tube, Incl. Ref. 41 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

42

A60766

SPROCKET

FILTER ASSY. - hydraulic oil (See Figure 154)

1шт.

45

A62590

TUBE - tee to transmission cover

1шт.

46

218-594

TEE,3/4"-16, 37 Degree

- junction

1шт.

47

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Assy, For 1/2" tube, Incl. Ref 48 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

16

218-5006
