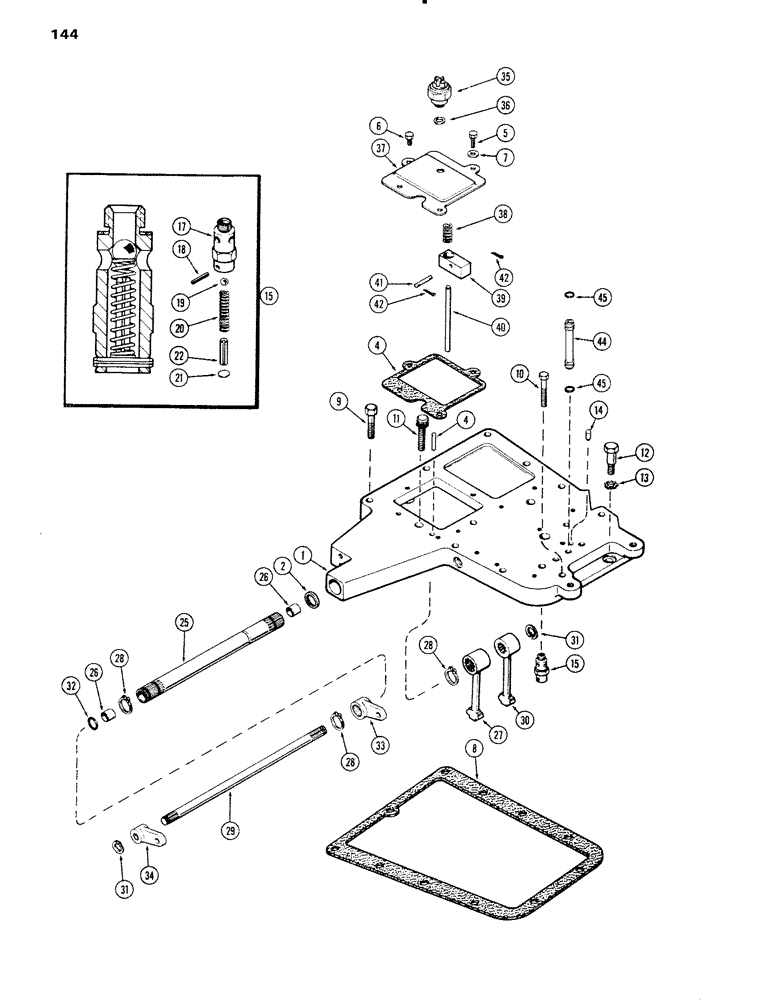

Запчасти Case IH 1090 (144) - GEAR SHIFT MECHANISM, COVERS AND RELIEF VALVE, POWER SHIFT (06) - POWER TRAIN

1

A62638

COVER ASSY. - transmission front top, Includes Ref: 2

1шт.

2

A28211

OIL SEAL

- oil

1шт.

3

A58950

PIN

- dowel, external range shift lever, Serial Range: shaft-cover

1шт.

4

A59115

GASKET

- cover

1шт.

5

113-217

PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd

BOLT, Locking, 3/8"-16 x 1", G5, Full Thd

1шт.

6

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

7

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

8

A62114

GASKET,0.79mm Thk

- transmission cover

1шт.

9

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

8шт.

10

113-439

SCREW,Locking, 1/2"-13 x 2 1/2", G5

BOLT - 1/2 x 2-1/2" N.C. hex., Nylock

1шт.

11

166-91

12 PT SCREW,Flg, 1/2" - 13 x 2 1/2, Gr 8

BOLT - 1/2 x 2-1/2" N.C. Ferry cap

1шт.

12

A60891

STEP BOLT

BOLT - dowel

1шт.

13

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

14

D24005

PIN

- dowel, trans. top front cover to valve body

1шт.

15

A60890

VALVE

ASSY. - lube oil relief, Includes Ref: 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A60890)

1шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

19

211-9

BALL,5/16" Dia

- steel, . 5/16" Dia

1шт.

20

A60889

SPRING

- relief valve

1шт.

21

195-6

WASHER,#6

- 5/32 x 5/16 x 1/32"

1шт.

22

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

25

A58245

SHAFT

ASSY. - external gear shift, Includes Ref: 26

1шт.

26

A57709

BUSHING

- shaft

2шт.

27

A61281

LEVER

- gear shift, 2nd & 4th

1шт.

28

B18208

SNAP RING,#100, Ext

lever to shaft #100, Ext

3шт.

29

A59591

SHAFT

- internal gear shift

1шт.

30

A61280

LEVER

- gear shift, 1st & 3rd

1шт.

31

A59594

RING

- snap, Serial Range: lever-shaft

2шт.

32

A58949

O-RING,0.614" ID x 0.754" OD

"O" RING - 3/4 x 5/8 x 1/16"

1шт.

33

A64936

LEVER

- range shift, 2nd & 4th (Replaces A60369)

1шт.

34

A64935

LEVER

- range shift, 1st & 3rd (Replaces A60363)

1шт.

35

A20990

SWITCH

- safety, neutral start

1шт.

36

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

37

A60832

COVER

ASSY. - gear shift lever & neutral switch, Includes Ref: 38 - 42

1шт.

38

A61705

SPRING

- neutral switch

1шт.

39

A58428

SEAL

- oil

1шт.

39

A60836

LEVER

- neutral switch

1шт.

40

A60713

ROD

- neutral switch

1шт.

41

A61030

PIN

- pivot, neutral switch

1шт.

42

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), 1/16" x 3/8"

2шт.

44

A61677

TUBE

- oil

3шт.

45

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - 1/2 x 5/8 x 1/16"

6шт.
