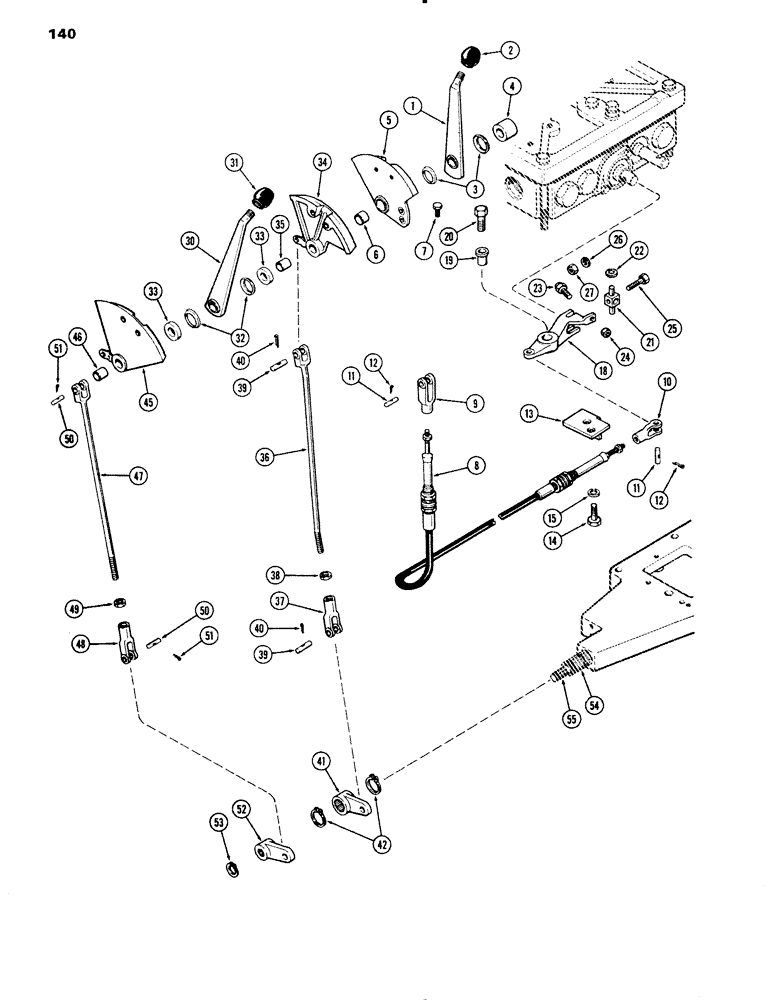

Запчасти Case IH 1090 (140) - GEAR AND RANGE SHIFT LINKAGE, POWER SHIFT (06) - POWER TRAIN

1

A59661

LEVER

- hand, range shift

1шт.

2

A65699

KNOB

- range shift lever (Replaces A62078)

1шт.

3

A59662

WASHER

- range shift lever

2шт.

4

A59664

SPACER

- range shift lever shaft

1шт.

5

A61862

QUADRANT

- range shift lever, Includes Ref: 6

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

7

A59463

BOLT

- control lever stop

2шт.

8

A60660

CABLE

- range control

1шт.

9

A60661

YOKE

- range cable, upper

1шт.

10

A60663

YOKE

- cable, lower

1шт.

11

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

12

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

13

A60662

BRACKET

- range cable

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

18

A59771

LEVER

- operating, range spool

1шт.

19

A59772

BUSHING

- lever

1шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

21

A59150

LINK

- range spool operating

1шт.

22

A59773

RING

- range link

1шт.

23

A59774

ADJUSTMENT SCREW,5/16" - 18 x 1 3/8", Mild Steel

SCREW - adjusting, range spool

1шт.

24

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

1шт.

25

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

25-104

NUT,1/4"-20, G5

1шт.

30

A60360

LEVER

- hand, gear shift

1шт.

31

A65699

KNOB

- gear shift lever (Replaces A62078)

1шт.

32

A59662

WASHER

- gear shift lever

2шт.

33

A60367

SPACER

- gear shift quadrants

2шт.

34

A61872

QUADRANT

- gear shift, 2nd & 4th, Includes Ref: 35

1шт.

35

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

36

A60359

ROD

- gear shift, 2nd & 4th

1шт.

37

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift rod

1шт.

38

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

39

A59258

PIN

- gear shift linkage

2шт.

40

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

41

A64936

LEVER

- gear shift, 2nd & 4th (Replaces A60369)

1шт.

42

B18208

SNAP RING,#100, Ext

2шт.

45

A61867

QUADRANT

- gear shift, 1st & 3rd, Includes Ref: 46

1шт.

46

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

47

A59775

ROD

- gear shift, 1st & 3rd

1шт.

48

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift rod

1шт.

49

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.C. hex.

1шт.

50

A59258

PIN

- gear shift linkage

2шт.

51

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

52

A64935

LEVER

- gear shift, 1st & 3rd (Replaces A60363)

1шт.

53

A59594

RING

- snap, gear shift lever retaining

1шт.

54

A58245

SHAFT

ASSY. - external gear shift w/bushing

1шт.

55

A59591

SHAFT

- lever, internal gear shift

1шт.
