(130) - CLUTCH, C-2 AND C-3, POWER SHIFT

Запчасти Case IH 1090 (130) - CLUTCH, C-2 AND C-3, POWER SHIFT (06) - POWER TRAIN

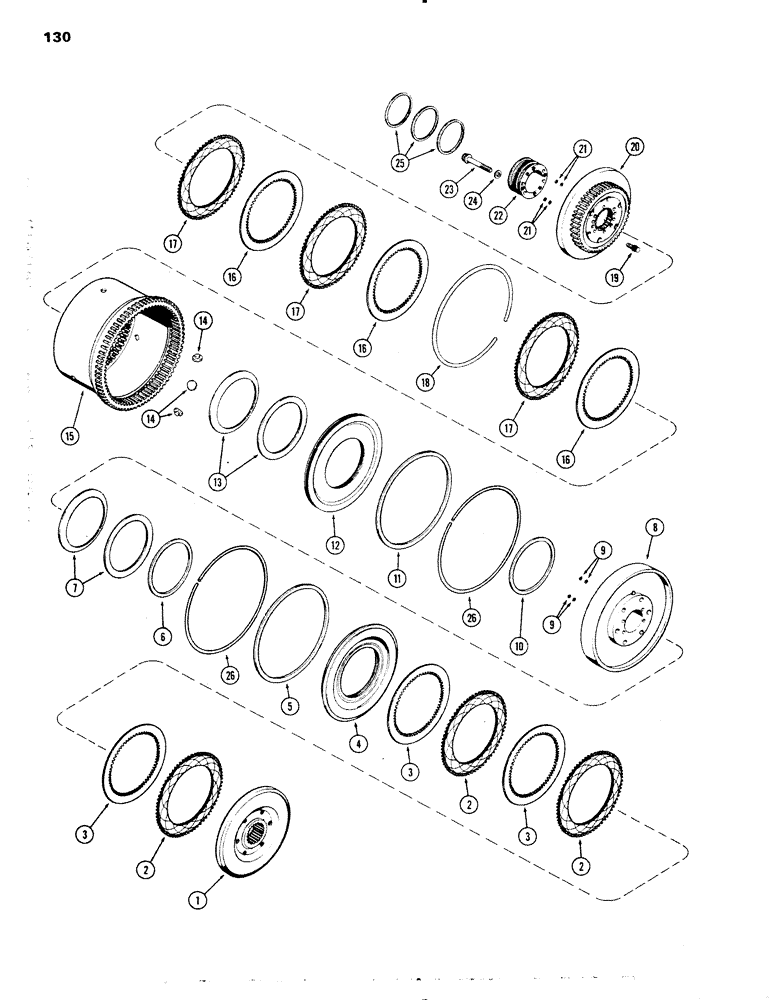

Схема запчастей Case IH 1090 - (130) - CLUTCH, C-2 AND C-3, POWER SHIFT (06) - POWER TRAIN
13
4
9
7
6
3
21
18
11
24
8
20
12
2
26
2
3
14
17
1
2
5
14
23
25
21
22
15
16
17
3
16
16
17
26
10
9
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. - powershift & planetary, Includes Ref: 1 - 26

1шт.

Includes Refs. on figures 125 thru 131

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH PACK - (C-2 & C-3 clutch), Includes Ref: 1 - 26

1шт.

1

A61295

HUB

- (C-2 clutch)

1шт.

2

A61981

PLATE

- sintered (C-2 clutch)

3шт.

3

A58089

PLATE

- steel (C-2 clutch)

3шт.

4

A63094

ELEC CONNECTOR

PISTON - (C-2 clutch)(Replaces A58380)

1шт.

5

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, piston (C-2 clutch)

1шт.

6

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, piston (C-2 clutch)

1шт.

7

A58094

SPRING

- return, belleville (C-2 clutch)

2шт.

8

A64487

CARRIER

- piston (C-2 & C-3 clutch)

1шт.

9

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

"O" RING - 5/16 x 7/16 x 1/16" (C-2 & C-3 clutch)

4шт.

10

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, piston (C-3 clutch)

1шт.

11

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, piston (C-3 clutch)

1шт.

12

A63094

ELEC CONNECTOR

PISTON - (C-3 clutch)(Replaces A58380)

1шт.

13

A58094

SPRING

- return, belleville (C-3 clutch)

2шт.

14

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

15

A58412

GEAR

- ring, planetary

1шт.

16

A58089

PLATE

- steel (C-3 clutch)

3шт.

17

A61981

PLATE

- sintered (C-3 clutch)

3шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, plate to ring gear (C-2 & C-3 clutch)

1шт.

19

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - 1/4 x 3/4" N.C., 12 pt. flanged (C-3 clutch)

2шт.

20

A58386

HUB

- (C-3 clutch)

1шт.

21

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

"O" RING - 5/16 x 7/16 x 1/16"

4шт.

22

A58103

HUB

- oil distributor (C-3 clutch)

1шт.

23

A58378

SCREW,3/8" - 16 x 2 1/2"

- 3/8 x 2-1/2" N.C., Ferry cap

6шт.

24

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 7/16 x 3/4 x 1/32"

6шт.

25

A58384

RING

- seal, oil distributor hub (C-3 clutch)

3шт.

26

A62642

ELECTRICAL WIRE

WIRE - lip seal, 22 ga. x 25-13/32" long

3шт.

A42886

SEAL KIT

- seal, clutch (Incl. Items 5, 6, 9, 10, 11, 25 & 26) (also refs. 19, 20, 28 & 29 figure 115 and ref. 45 figure 132)

1шт.
