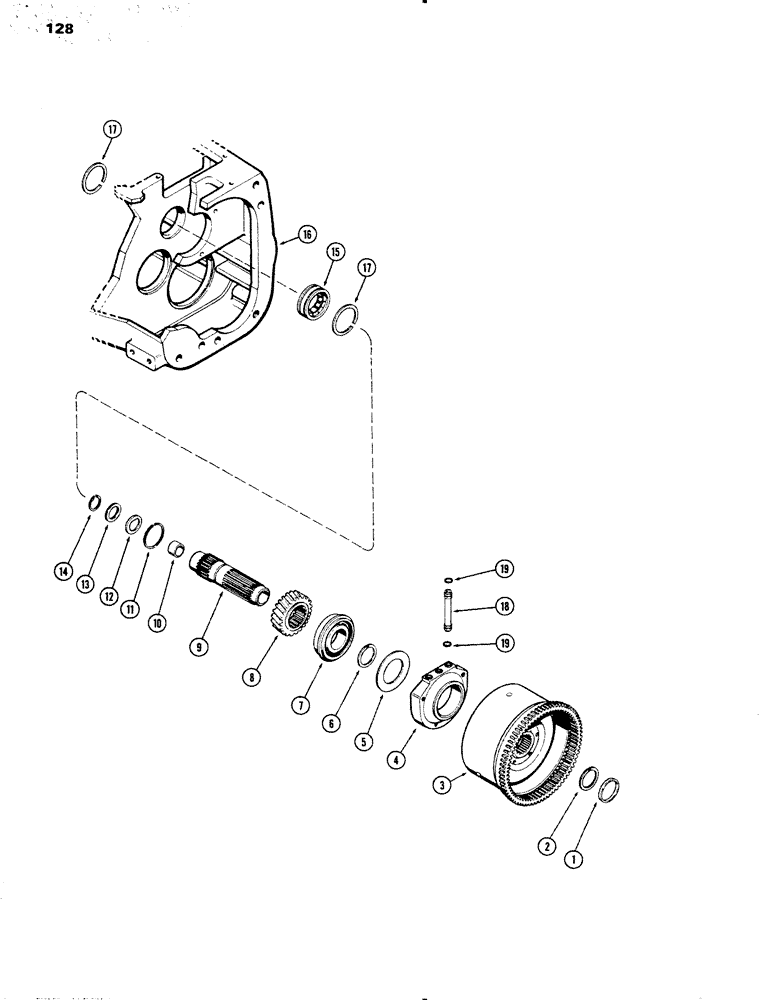

Запчасти Case IH 1090 (128) - CLUTCH, PLANETARY OUTPUT, POWER SHIFT (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. - power shift & planetary, Includes: Ref. 1 - 14

1шт.

Includes Refs. on figures 124 thru 130

1шт.

1

A61296

SPACER

- thrust bearing

1шт.

2

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, hub

1шт.

3

NSS

NOT SOLD SEPARAT

CLUTCH PACK - (C-2 & C-3 clutch) (See Figure 130)

1шт.

4

A61676

COVER ASSY

COVER - oil distributor

1шт.

5

A64764

GUARD

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, planetary output shaft

1шт.

7

A58098

BALL BEARING,1.9685" ID x 4.58" OD x 1.063"

BEARING - ball, oil shield

1шт.

8

A62128

GEAR

- drive, pinion

1шт.

9

A58459

SHAFT

ASSY. - planetary output drive, Includes: Ref. 10

1шт.

10

A58376

BUSHING

- planetary output shaft

1шт.

11

A58100

SNAP RING,#215, 2.026", Ext

RING - snap, planetary output drive gear retaining

1шт.

12

A59934

WASHER

- thrust, planetary shaft

1шт.

13

A59935

BUSHING

SPACER - thrust, planetary shaft (7/32" thick)

1шт.

13

A59936

BUSHING

SPACER - thrust, planetary shaft (15/64" thick)

1шт.

13

A59937

BUSHING

SPACER - thrust, planetary shaft (1/4" thick)

1шт.

13

A59938

BUSHING

SPACER - thrust, planetary shaft (17/64" thick)

1шт.

14

A59939

RING

- snap, planetary shaft retaining

1шт.

15

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

BEARING - roller, planetary shaft rear

1шт.

16

A61181

CASE ASSY. - transmission

1шт.

17

A28153

RING

- snap, planetary shaft rear bearing

2шт.

18

A61677

TUBE

- oil

3шт.

19

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - 1/2 x 5/8 x 1/16"

6шт.
