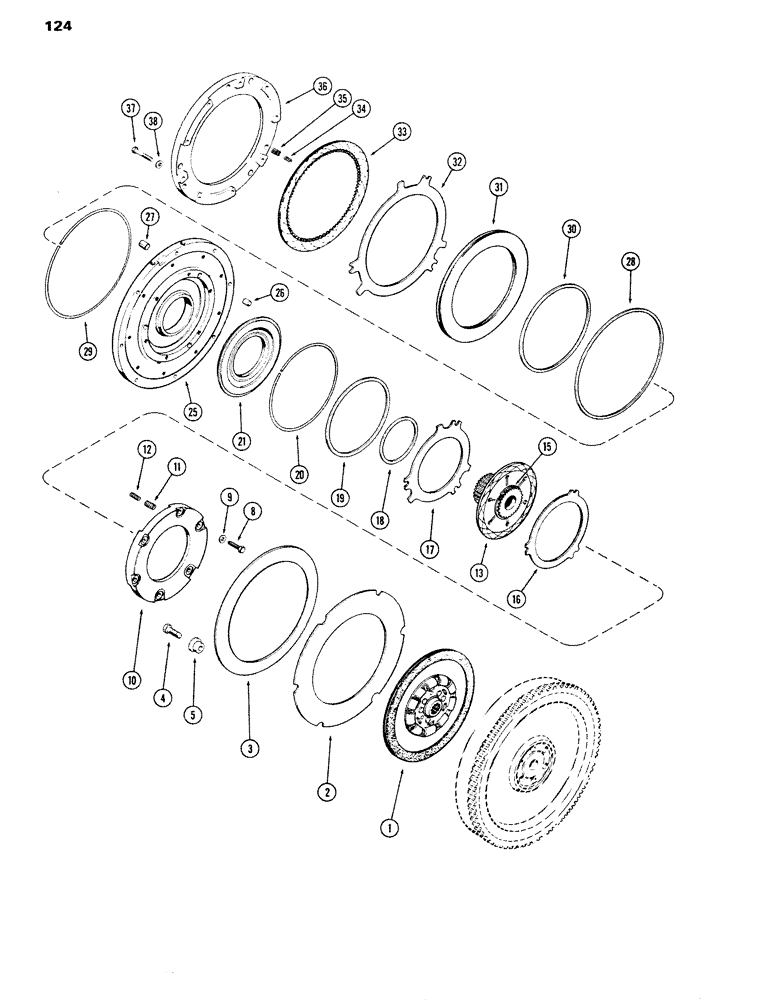

Запчасти Case IH 1090 (124) - CLUTCH, C-1 AND C-4, POWER SHIFT (06) - POWER TRAIN

1

A58388

PLATE

ASSY. - 12" driven member, torque limiter

1шт.

2

A58036

PLATE

- pressure, torque limiter

1шт.

3

A61000

SPRING

- belleville, torque limiter

1шт.

4

113-401

BOLT

- 1/2 x 1-3/4" N.C. hex.

6шт.

5

A59133

RETAINER

- clutch spring, torque limiter

6шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. - powershift & planetary, Includes Ref: 8 - 38

1шт.

Includes Refs. on figures 125 thru 131

1шт.

8

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

- 3/8 x 1-5/8" N.C. hex.

6шт.

9

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 7/16 x 3/4 x 1/32"

6шт.

10

A62605

PLATE

- reaction (C-1 clutch)

1шт.

11

A62606

SPRING

- return, 9/16" dia., 1-3/32" free length (C-1 Clutch)

3шт.

12

A62607

SPRING

- return, 23/64" dia., 1-3/32" free length (C-1 Clutch)

3шт.

13

A62858

CLUTCH PLATE

PLATE ASSY. - C-1 clutch (includes gear)

1шт.

15

A62611

RING

- clutch plate retaining (when gear & plate not welded)

2шт.

16

A65525

PLATE

- (C-1 clutch)(w/3 ears)(Replaces A62610)

1шт.

17

A65524

PLATE

- (C-1 clutch)(w/6 ears)(Replaces A58392)

2шт.

5

A64764

GUARD

SHIELD - oil, center bearing (Replaces A58101)

1шт.

18

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal (C-1 clutch)

1шт.

19

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external (C-1 piston)(See A42886 kit Figure 130)

1шт.

20

A62642

ELECTRICAL WIRE

WIRE - lip seal, 22 ga. x 25-13/32" long (See A42886 kit Figure 130)

1шт.

21

A63094

ELEC CONNECTOR

PISTON - (C-1 clutch)(Replaces A58380)

1шт.

25

A62608

CARRIER

ASSY. - piston (C-1 & C-4 clutch), Includes Ref: 26 and 27

1шт.

26

A62609

PIN,12.45mm OD x 27.43mm L

- roll, reaction plate (31/64 x 1-5/64")(C-1 clutch)

3шт.

27

A58059

PIN

- roll, reaction plate (31/64 x 3/4")(C-4 clutch)

3шт.

28

A58396

SEAL,318.39mm ID x 3.23mm Thk

- external (C-4 clutch)(See A42886 kit Figure 130)

1шт.

29

A62643

ELECTRICAL WIRE

WIRE - lip seal, 22 ga. x 38-45/64" long (See A42886 kit Figure 130)

1шт.

30

A58397

SEAL,227.13mm ID x 3.23mm Thk

- internal (C-4 clutch)

1шт.

31

A58395

PISTON

- (C-4 clutch)

1шт.

32

A58056

PLATE

- steeel (C-4 clutch)

1шт.

33

A62563

PLATE

- sintered (C-4 clutch)

1шт.

34

A60596

SPRING

- return, 23/64" dia., 3/4" free length (C-4 clutch)

3шт.

35

A58391

SPRING

- return, 9/16" dia., 3/4" free length (C-4 clutch)

3шт.

36

A58394

PLATE

- reaction (C-4 clutch)

1шт.

37

113-244

X

BOLT - 3/8 x 2-1/2" N.C. hex.

9шт.

38

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 7/16 x 3/4 x 1/32"

9шт.

A62948

REPAIR KIT

KIT - C-1 clutch repair (Incl. Refs. 8, 10 thru 16 & 26)

1шт.
