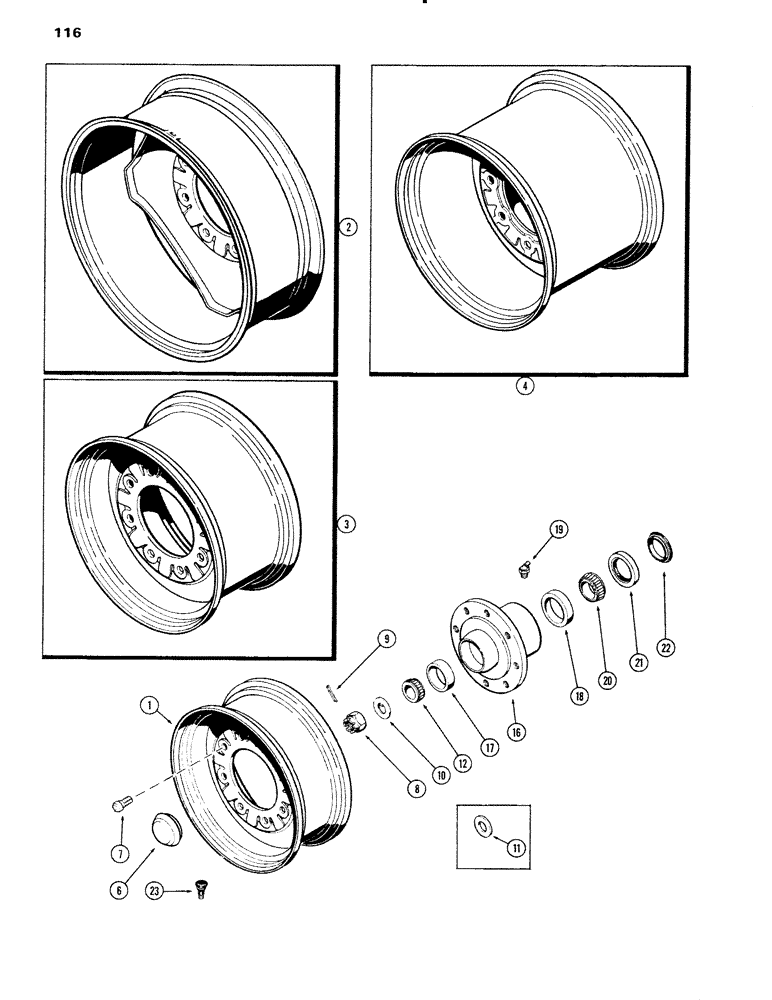

Запчасти Case IH 1090 (116) - FRONT WHEELS (05) - STEERING

1

A61571

WHEEL

- front, 1-1/4" offset (takes 7.50 x 16 tire)

2шт.

2

A61574

WHEEL

- front, 1-1/2" offset (takes 9.50 x 20 tire)

2шт.

3

A61570

WHEEL

- front, 1-1/4" offset (takes 10.00 x 16 & 11.00 x 16 tires)

2шт.

4

A62132

WHEEL

- front, 1/2" offset (takes 14L x 16A tire)

2шт.

6

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub, front wheel

2шт.

7

B18264

WHEEL BOLT

BOLT - 9/16 x 1-3/32" N.F. special

16шт.

8

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" N.F. hex. sltd.

2шт.

9

132-99

COTTER PIN,3/16" x 2"

PIN - cotter, 3/16 x 1-7/8"

2шт.

10

A16357

WASHER

- wheel spindle (w/groove tongue)

2шт.

11

A62919

WASHER

- wheel spindle (plain, 1-1/8 x 2-1/2 x 1/4")

2шт.

12

G15215

ROLLER BEARING

CONE - outer bearing

2шт.

16

A60159

HUB

ASSY. - front wheel, Includes Ref: 17 - 19

2шт.

17

G15214

BEARING CUP

CUP - outer bearing

1шт.

18

A61446

BEARING CUP

CUP - inner bearing

1шт.

19

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

FITTING - lube, 5/16 x 67-1/2 deg.

1шт.

20

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - inner bearing

1шт.

21

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- oil, outer

1шт.

22

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- oil, inner

2шт.

23

A38261

VALVE

- tubeless tire

1шт.
