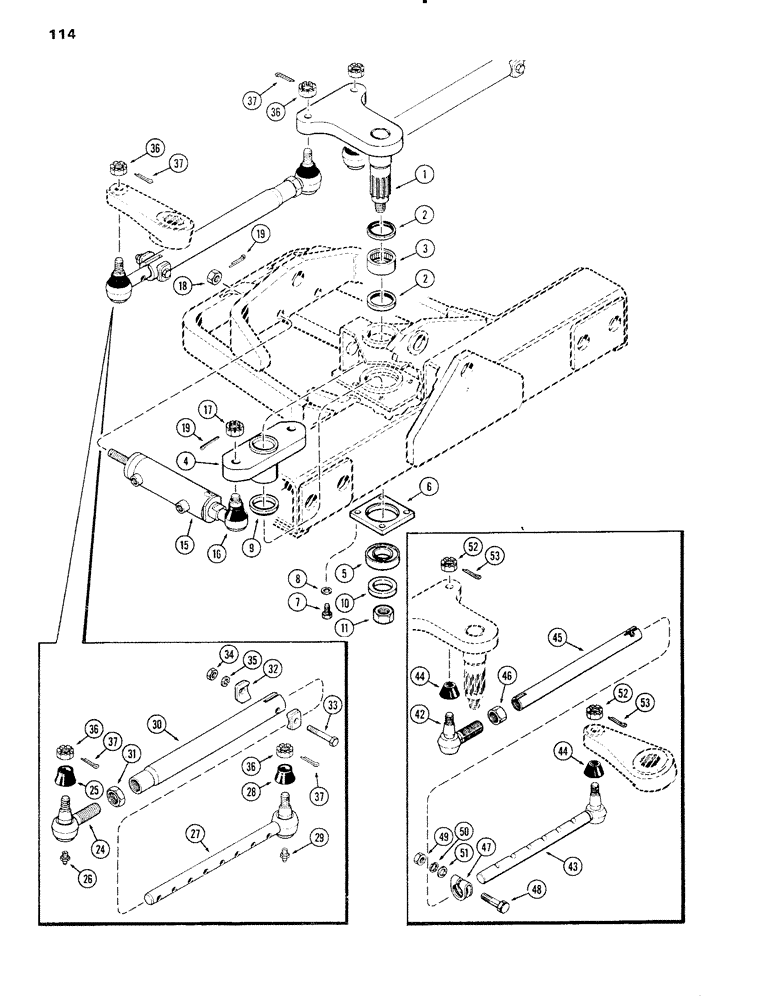

Запчасти Case IH 1090 (114) - CENTER STEERING ARMS AND CYLINDERS (05) - STEERING

1

A63985

STEERING ARM

ARM - center steering, upper (Replaces A61977)

1шт.

2

A61414

OIL SEAL

- oil, 2-1/8 x 2-1/2 x 3/16"

2шт.

3

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING - needle

1шт.

4

A62231

ARM

- center steering, lower

1шт.

5

A61888

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball

1шт.

6

A62212

PLATE

- bearing end cap

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

A62233

WASHER

- center steering shaft

1шт.

10

195-2098

WASHER,15/16" x 2" x .238"

- 15/16 x 2 x 3/16"

1шт.

11

A65435

LOCK NUT

- 7/8" N.C. hex., flanged lock (Replaces A59649)

1шт.

15

A62067

CYLINDER

ASSY. - steering (See Fig. 100)

2шт.

16

A31186

BOOT

SEAL - weather

2шт.

17

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.C. hex., sltd.

2шт.

18

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

4шт.

19

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

2шт.

24

A43376

JOINT

END ASSY. - tie rod, inner, Includes Ref: 25 and 26, w/lubrication joints 1st used trac. ser, #8678074

2шт.

25

A31186

BOOT

- dust, drag link end (rubber), tie rods w/ubrication joints 1st used trac. ser. #8678074

1шт.

26

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, 1/8" P.T. str., tie rods w/ubrication joints 1st used trac. ser. #8678074

1шт.

27

A43374

BALL JOINT

END ASSY. - tie rod, outer, Includes Ref: 28 and 29, tie rods w/ubrication joints 1st used trac. ser. #8678074

2шт.

28

A31186

BOOT

- dust, tie rod end (rubber), tie rods w/ubrication joints 1st used trac. ser. #8678074

1шт.

29

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, 1/8" P.T., str., tie rods w/ubrication joints 1st used trac. ser. #8678074

1шт.

30

A137101

TUBE

- tie rod, w/ubrication joints 1st used trac. ser. #8678074

2шт.

31

A43379

JAM NUT

- lock, tie rod end, w/ubrication joints 1st used trac. ser. #8678074

2шт.

32

A43369

CLAMP

- tube, tie rods w/ubrication joints 1st used trac. ser. #8678074

4шт.

33

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Tie rods w/lubrication joints 1st used trac. ser. #8678074 Hex, 3/8"-16 x 2 1/2", G5

2шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Tie rods w/lubrication joints 1st used tractor S/N 8678074 3/8"-16, G5

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Tie rods w/lubrication joints 1st used tractor S/N 8678074 3/8"

2шт.

36

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - tie rod ends, 5/8" N.F. hex., sltd., tie rods w/ubrication joints 1st used trac. ser. #8678074

4шт.

37

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), , Tie rods w/lubrication joints 1st used trac. ser. #8678074 1/8" x 1 1/8"

4шт.

42

A41512

ROD

END - tie rod, w/o lubrication joints used prior to trac. ser. #8678074

1шт.

43

A59658

STEERING TIE-ROD

ROD - tie, w/ubrication joints 1st used trac. ser. #8678074

1шт.

44

A41515

SEAL

- end, dust (rubber), tie rods w/ubrication joints 1st used trac. ser. #8678074v

2шт.

45

A59659

TUBE

- tie rod, w/ubrication joints 1st used trac. ser. #8678074

1шт.

46

A41511

NUT

- 1" N.C. hex., jam, tie rods w/ubrication joints 1st used trac. ser. #8678074

1шт.

47

A41561

CLAMP

- tie rod, w/ubrication joints 1st used trac. ser. #8678074

1шт.

48

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex., tie rods w/ubrication joints 1st used trac. ser. #8678074

1шт.

49

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., tie rods w/ubrication joints 1st used trac. ser. #8678074

1шт.

50

92-8

LOCK WASHER,1/2"

tie rods w/ubrication joints 1st used trac. ser. #8678074 1/2"

1шт.

51

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64"), tie rods w/ubrication joints 1st used trac. ser. #8678074 1/2"

1шт.

52

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex., sltd., tie rods w/ubrication joints 1st used trac. ser. #8678074

4шт.

53

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), , Tie rods w/lubrication joints 1st used trac. ser. #8678074 1/8" x 1 1/8"

4шт.
