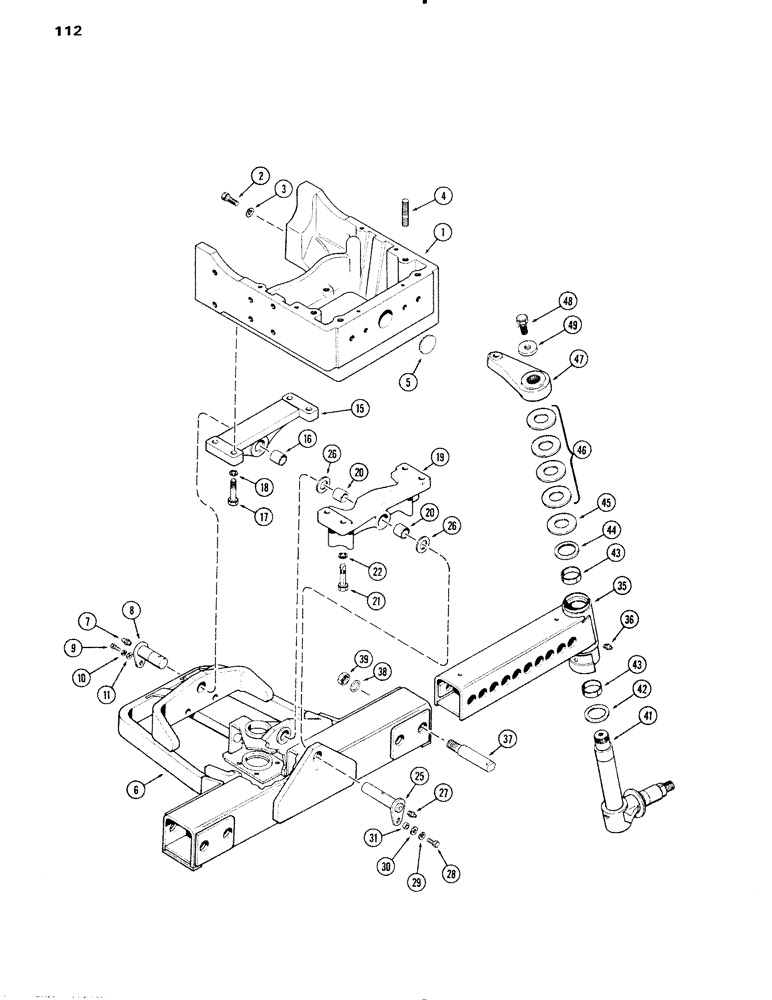

Запчасти Case IH 1090 (112) - ADJUSTABLE FRONT AXLE, 60 TO 88 INCHES TREAD (05) - STEERING

1

A59158

SUPPORT

- front end axle

1шт.

2

113-753

BOLT - 3/4 x 2-1/2" N.C. hex.

4шт.

3

A34651

LOCK WASHER

- lock, 3/4"

4шт.

4

A59423

STUD - grille

4шт.

5

205-69

PLUG - button, 2-1/4"

1шт.

6

A64593

AXLE ASSY. - center section (Replaces A61482 & A63982), Includes Ref: 7 - 10

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str.

1шт.

8

A61359

PIN

- pivot, rear support

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- 7/8 x 1" N.C. hex.

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

195-25

WASHER,3/8"

1шт.

15

A61355

SUPPORT ASSY. - axle pivot, rear, Includes Ref: 16

1шт.

16

A61357

BUSHING,38.05mm ID x 47.7mm OD x 38.1mm L

- support

1шт.

17

13-754

BOLT - 3/4 x 3" N.C. hex.

4шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

19

A64395

SUPPORT

ASSY. - axle pivot, front (Replaces A61352), Includes Ref: 20

1шт.

20

A61354

BUSHING,38.05mm ID x 47.7mm OD x 44.45mm L

- support

2шт.

21

13-754

BOLT - 3/4 x 3" N.C. hex.

4шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

25

A61383

AXLE PIN

PIN - pivot, front axle

1шт.

26

A61385

WASHER

- thrust, pivot pin

2шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str.

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

195-25

WASHER,3/8"

1шт.

31

A59660

SPACER

- pivot pin

1шт.

35

A62156

AXLE - end section, R.H.

1шт.

35

A62157

AXLE - end section, L.H.

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str.

2шт.

37

A61392

BOLT

- shoulder, end section to center section

4шт.

38

195-2097

WASHER,15/16" x 1 3/4" x .083"

- 15/16 x 1-3/4 x 14 ga. (not used w/flange nut)

4шт.

39

A65435

LOCK NUT

- 7/8" N.C. hex. flanged (Replaces A59649 & 195-2097)

4шт.

41

A62158

SPINDLE

- front wheel (w/groove)(Order A62920)

2шт.

41

A62920

SPINDLE

- front wheel (w/groove)

2шт.

42

A61397

THRUST BEARING,2.265" ID x 3.031" OD x 0.12"

BEARING - thrust, spindle lower

2шт.

43

A61398

BUSHING

- spindle, upper & lower

4шт.

44

A61399

SEAL

- oil, spindle upper

2шт.

45

A61400

SPACER

SHIELD - dust, spindle upper

2шт.

46

A61401

SHIM,.1345" Thk

Spindle, #10 gage .1345" Thk

1шт.

46

A61402

SHIM,.0598" Thk

Spindle, #16 gage .0598" Thk

1шт.

46

A35345

SHIM,.0359" Thk

Spindle, #20 gauge (Replaces A61403) .0359" Thk

1шт.

47

A61404

ARM

- steering, R.H.

1шт.

47

A61405

ARM

- steering, L.H.

1шт.

48

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

49

A61406

WASHER

- spindle

2шт.
