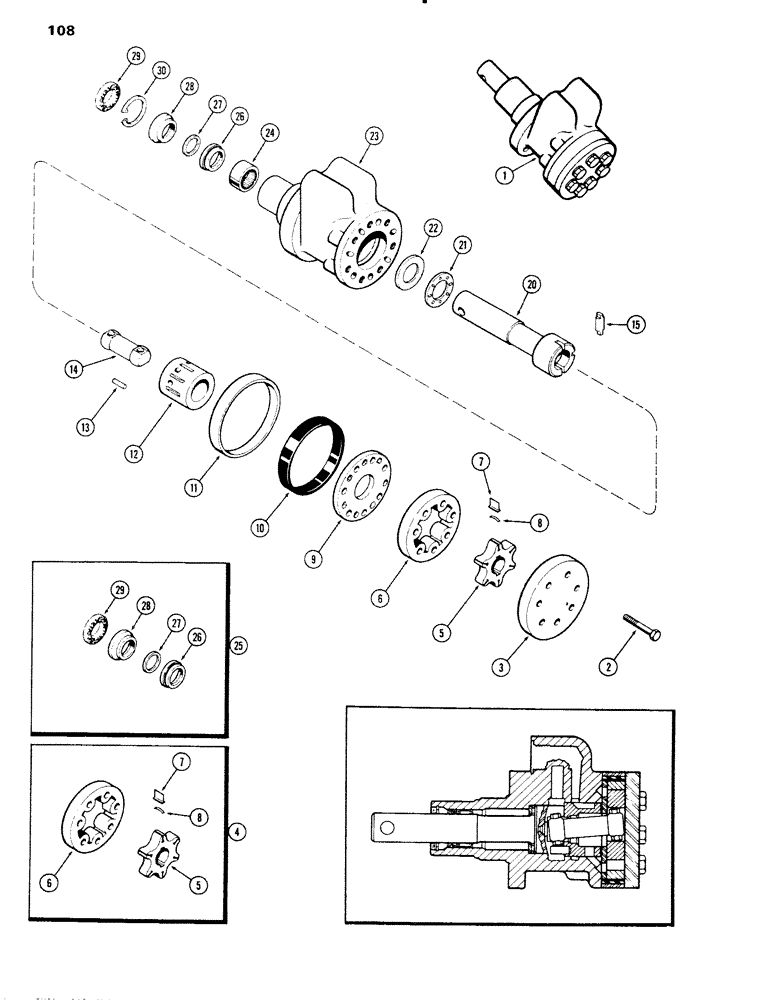

Запчасти Case IH 1090 (108) - A60202 STEERING HAND PUMP, WITH 18 TO 1 RATIO (05) - STEERING

1

A60202

PUMP ASSY. - steering (Ross Gear #P-08005), Includes Ref: 2 - 30

1шт.

2

F19642

BOLT - pump end cover

7шт.

3

F19641

COVER - pump end

1шт.

4

A42214

ROTOR

SET - pump (spring loaded), Includes Ref: 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

6

NSS

NOT SOLD SEPARAT

STATOR - pump

1шт.

7

NSS

NOT SOLD SEPARAT

VANE - pump rotor

6шт.

8

A42219

SPRING

- pump vane sealing

6шт.

9

A42206

SPACER

- pump rotor

1шт.

10

F19640

SEAL

- pump rotor, 3-1/4" O.D. x 3/4"

1шт.

11

F19639

RETAINER

- seal, pump rotor, 3-1/2" O.D. x 43/64"

1шт.

12

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump body

1шт.

13

F19631

PIN

- pump commutator

1шт.

14

F19635

LINK

- pump drive

1шт.

15

F19636

PIN

- pump link

2шт.

20

F12500

SHAFT - pump drive

1шт.

21

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle, thrust, pump shaft

1шт.

22

F19634

BEARING WASHER

RACE - bearing thrust, pump shaft

1шт.

23

A42213

BODY - pump, w/needle bearing

1шт.

24

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle, pump shaft to body

1шт.

25

A40624

SEAL

KIT - seal, steering hand pump, Includes Ref: 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

PACKING

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - back-up

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - spacer

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - felt

1шт.

30

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, spacer washer

1шт.
