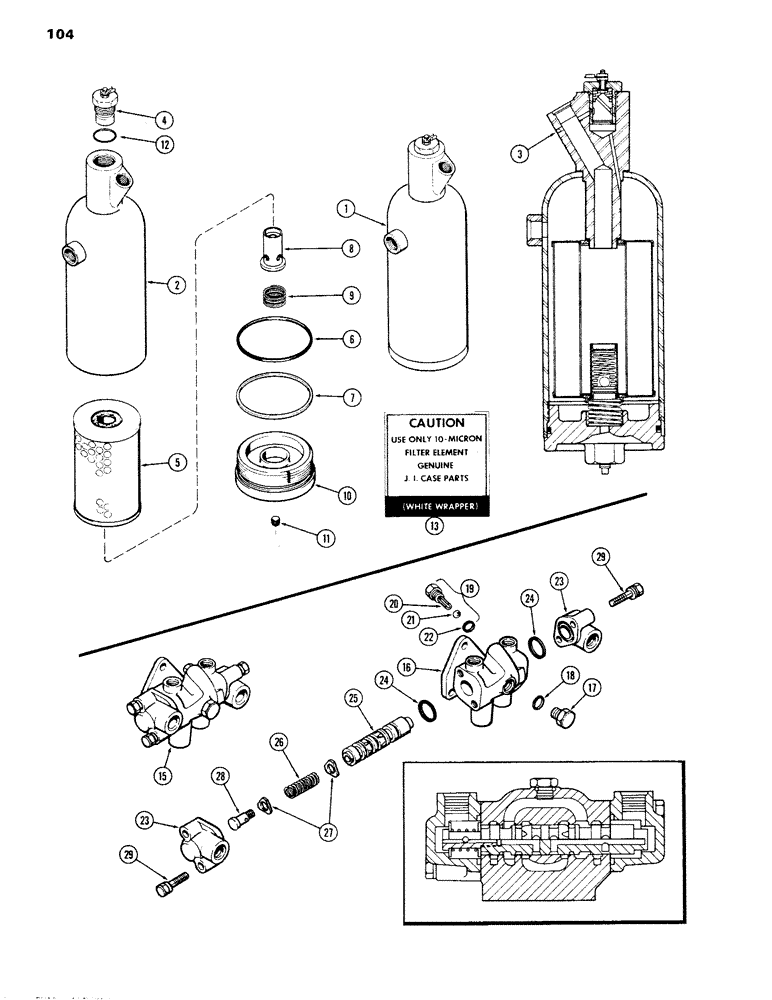

Запчасти Case IH 1090 (104) - A61459 OIL FILTER (05) - STEERING

1

A61459

FILTER ASSY. - (10 Micron), Includes Ref: 2 - 12

1шт.

18

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

"O" RING - 13/32 x 15/32 x 1/16" (Replaces F19628), steering valve

1шт.

2

A61460

HOUSING ASSY.

TUBE ASSY. - filter, Includes Ref: 3

1шт.

3

211-4

BALL

- 5/32" dia.

1шт.

4

A61463

SWITCH

- differential pressure

1шт.

5

A62871

ELEMENT

KIT - (Replaces A61235), Includes Ref: 6

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - (4 x 4-1/4 x 1/8")

1шт.

7

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

(4 x 4-1/4 x 1/16" leather)

1шт.

8

D37207

VALVE

ASSY. - relief

1шт.

9

D31212

SPRING

- retaining

1шт.

10

A60765

CAP

- end

1шт.

11

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

12

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - (15/16 x 1-1/16 x 1/16")

1шт.

13

321-1762

DECAL

- warning, oil filter (Replaces 321-1296)

1шт.

15

A60207

VALVE

ASSY. - steering, Includes Ref: 16 - 29

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - valve (Order A60207), steering valve

1шт.

17

F83122

PLUG

ASSY. - bleed, Includes Ref: 18, steering valve

1шт.

19

F82943

VALVE

KIT - plug, ball & roll pin, Includes Ref: 20 - 22, steering valve

1шт.

20

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Steering valve 1/8" x 15/16", Slotted

1шт.

21

211-7

BALL,1/4" Dia

- steering valve 1/4" Dia

1шт.

22

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, replaces F19630, steering valve

1шт.

23

F19624

CAP

- valve end, steering valve

2шт.

24

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - 1-15/64 x 1-21/64 x 7/64", steering valve

2шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A60207), steering valve

1шт.

26

A42201

SPRING

- centering, steering valve

1шт.

27

F19619

WASHER

- centering, steering valve

2шт.

28

F19623

SCREW,3/8" - 24 x 15/16"

- centering, steering valve

1шт.

29

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT ASSY. - w/washer, 3/8" N.C., special, steering valve

4шт.
