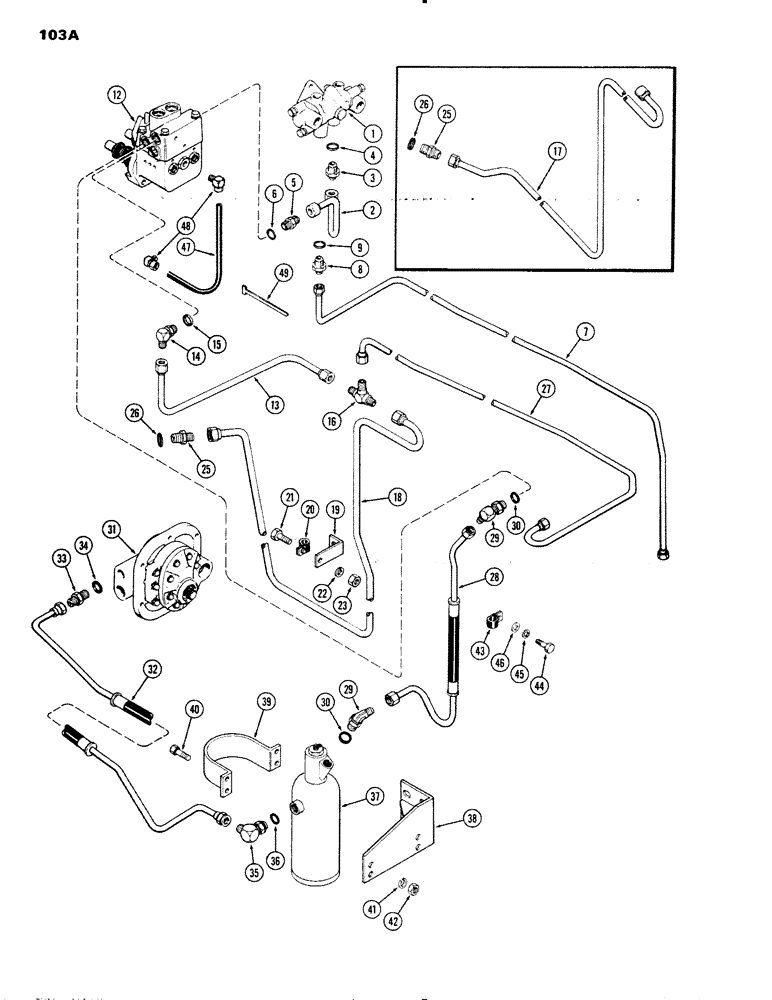

Запчасти Case IH 1090 (103A) - HYDRAULIC PUMP, BRAKE VALVE AND FILTER, HYDROSTATIC STEERING POWER SHIFT (05) - STEERING

1

A60207

VALVE

ASSY. - steering (See Fig. 104)

1шт.

2

A59918

TUBE

Brake valve to steering valve

1шт.

3

A36663

CONNECTOR, ELEC

CONNECTOR ASSY. - steering valve, Includes Ref: 4

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Assy - 1/2" tube, Incl. Ref 6

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

A61455

SPARE PART Steering valve to oil cooler

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Assy - 1/2" tube, Incl. Ref 9

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

REF

INSTRUCTION

VALVE ASSY. - brake (Order from Pages 185 & 187)

1шт.

13

A59919

SPARE PART Brake, Serial Range: valve-tee

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, adjustable (1/2" tube x 3/4" N.F.), Includes Ref: 15

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

218-594

TEE,3/4"-16, 37 Degree

Junction

1шт.

17

A60772

TUBE

Tee to trans. cover (early production) (Order ref. 18, 19, 20, 21, 22 & 23)

1шт.

18

A62590

SPARE PART Tee to trans. cover

1шт.

19

A62591

BRACKET

Tube clamp support

1шт.

20

49338

CLAMP -, Serial Range: tube-bracket

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

1шт.

25

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Assy - 1/2" tube, Incl. Ref 26

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

A61456

TUBE

Tee to oil cooler

1шт.

28

A61783

TUBE ASSY.

SPARE PART Filter to brake valve

1шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, adjustable (1/2" tube x 3/4" N.F.), Includes Ref: 30

2шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

A62051

PUMP

ASSY. - hydraulic, dual (See Fig. 242)

1шт.

31

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

31

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

32

A64478

TUBE

Hydraulic pump to filter (Replaces A61776)

1шт.

33

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1/2" tube x 7/8" P.T., Incl. Ref 34

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, adjustable (1/2" tube x 3/4" N.F.), Includes Ref: 36

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

A61459

SPARE PART ASSY. - oil, steering & brake (See Fig. 104)

1шт.

38

A61781

BRACKET

Filter mounting

1шт.

39

A65004

SPARE PART Filter to bracket (Replaces A60857)

1шт.

40

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

41

92-6

LOCK WASHER,3/8"

4шт.

42

25-106

NUT,3/8"-16, G5

4шт.

43

49833

CLAMP

Oil filter, Serial Range: tubes-firewall

1шт.

44

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

45

92-4

LOCK WASHER,1/4"

1шт.

46

95-4

WASHER,1/4"

WASHER - 5/16 x 3/4 x 1/16"

1шт.

47

A60771

TUBE

Brake valve pressure relief (Replaces A60770)

1шт.

48

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

90 deg., 3/8" tube x 1/4" P.T.

2шт.

49

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Brake valve to transmission tube

2шт.
