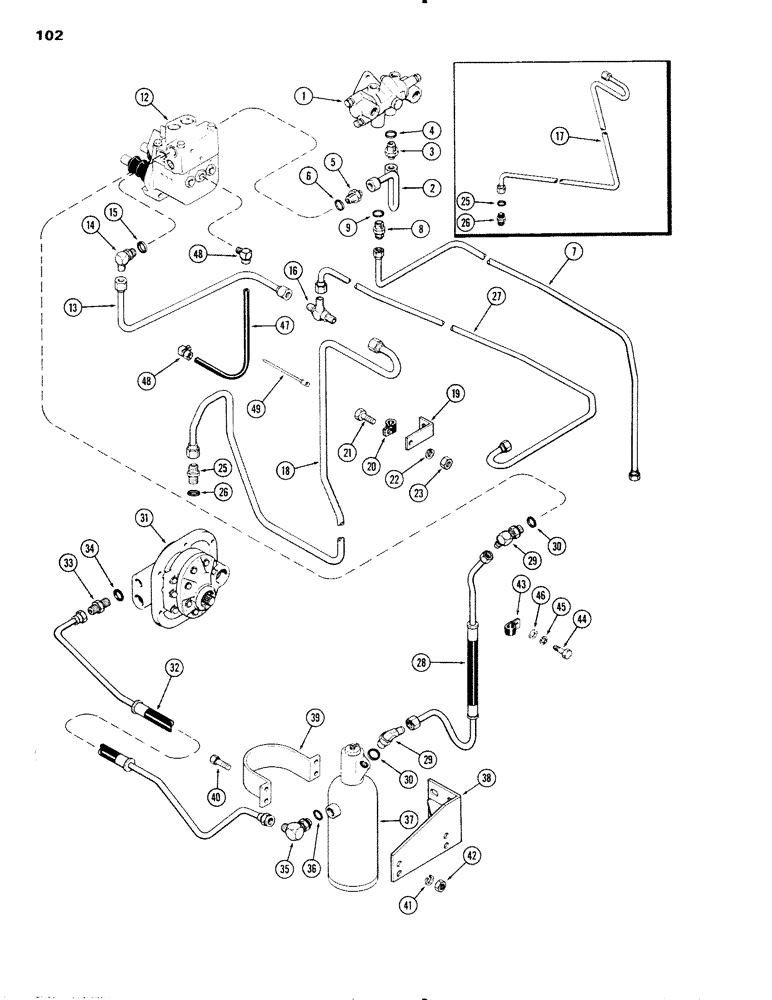

Справочник запчастей Case IH 1090 (102) - HYDRAULIC PUMP, BRAKE VALVE AND FILTER, HYDROSTATIC STEERING SYSTEM MECHANICAL SHIFT (05) - STEERING со схемами

1

A60207

VALVE

VALVE ASSY. - steering (See Fig. 104)

1шт.

2

A59918

TUBE

TUBE - brake valve to steering valve

1шт.

3

A36663

CONNECTOR, ELEC

CONNECTOR CONNECTOR ASSY. - steering valve, Includes Ref: 4

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Assy, 1/2" tube, Incl. Ref 6 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

7

A61455

SPARE PART TUBE - steering valve to oil cooler

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Assy, 1/2" tube, Incl. Ref 9 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

12

REF

INSTRUCTION

VALVE ASSY. - brake (Order from Pages 185 & 187)

1шт.

13

A59919

SPARE PART TUBE - brake, Serial Range: valve-tee

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ELBOW, , Assy, Adjustable (1/2" tube), Includes Ref: 15 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

16

218-594

TEE,3/4"-16, 37 Degree

TEE - junction

1шт.

17

A60976

SPARE PART TUBE - tee to clutch housing (early production) (Order ref. 18, 19, 20, 21, 22 & 23)

1шт.

18

A62589

SPARE PART TUBE - tee to clutch housing

1шт.

19

A62591

BRACKET

BRACKET - tube clamp support

1шт.

20

49838

CLAMP

CLAMP -, Serial Range: tube-bracket

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

1шт.

25

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Assy, 1/2" tube, Incl. Ref 26 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

27

A61456

TUBE

TUBE - tee to oil cooler

1шт.

28

A61783

TUBE ASSY.

SPARE PART TUBE - filter to brake valve

1шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ELBOW, , Assy, Adjustable (1/2" tube), Includes Ref: 30 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

31

A62051

PUMP

PUMP ASSY. - hydraulic, dual (See Fig. 242)

1шт.

31

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

31

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

32

A64478

TUBE

TUBE - hydraulic pump to filter (Replaces A61776)

1шт.

33

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

HYD CONNECTOR, , 1/2" tube x 7/8" P.T., Incl. Ref 34 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ELBOW, , Assy, Adjustable (1/2" tube), Includes Ref: 36 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

37

A61459

SPARE PART FILTER ASSY. - oil, steering & brake (See Fig. 104)

1шт.

38

A61781

BRACKET

BRACKET - filter mounting

1шт.

39

A65004

SPARE PART CLAMP - filter to bracket (Replaces A60857)

1шт.

40

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" N.C. hex.

2шт.

41

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

42

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

4шт.

43

49833

CLAMP

CLAMP - oil filter, Serial Range: tubes-firewall

1шт.

44

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

46

95-4

WASHER,1/4"

WASHER - 5/16 x 3/4 x 1/16"

1шт.

47

A60771

TUBE

TUBE - brake valve pressure relief (Replaces A60770)

1шт.

48

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ELBOW - 90deg., 3/8" tube x 1/4" P.T.

2шт.

49

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP STRAP - brake valve to transmission tube

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
