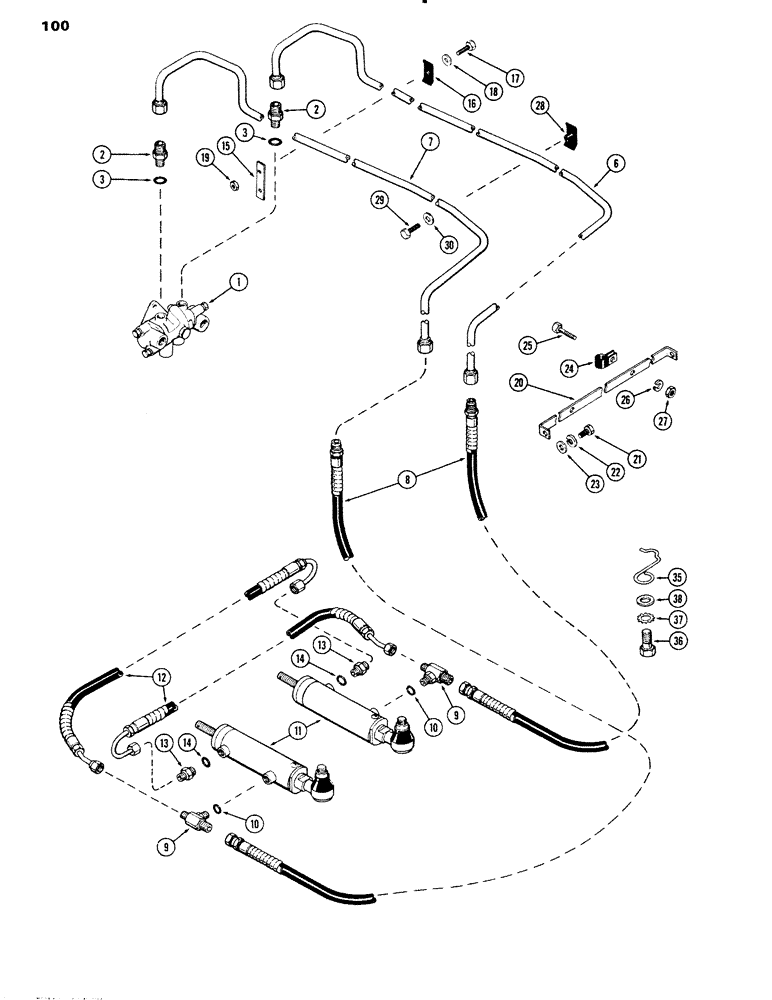

Запчасти Case IH 1090 (100) - HYDROSTATIC STEERING SYSTEM, DOUBLE ACTING CYLINDER (05) - STEERING

1

A60207

VALVE

ASSY. - steering (See Fig. 104)

1шт.

2

A60705

CONNECTOR - valve to tubes (9/16" N.F. x 7/8" N.F.)

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

6

A61732

TUBE

- steering valve to cylinder hose, upper

1шт.

7

A61733

TUBE - steering valve to cylinder hose, lower

1шт.

8

A62913

HOSE

- tube to cylinder (Replaces A62359)

2шт.

9

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

- hose to cylinder, 9/16" x 9/16" x 3/4", Includes: Ref. 10

2шт.

11

A62067

CYLINDER

- steering (See Fig. 110)

2шт.

12

A62360

TUBE ASSY.

TUBE - cylinder crossover

2шт.

For conversion to single acting cylinder see Fig. 101A

1шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - tube to cylinder, 3/8" tube x 9/16" N.F., Incl. Ref. 14

2шт.

15

A60223

PLATE - tube mounting clip

1шт.

16

A60224

CLAMP

CLIP - tube mounting

1шт.

17

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

18

195-18

WASHER,1/4"

- plain, 9/32 x 5/8 x 1/16"

1шт.

19

25-104

NUT,1/4"-20, G5

1шт.

20

A61087

SUPPORT

-, Serial Range: tube-grille

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 3/8 x 7/8 x 5/64"

2шт.

24

NLS

NO LONGER SERVICED

- steering, Serial Range: tube-support

2шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

25-104

NUT,1/4"-20, G5

2шт.

28

A60225

CLAMP - tube mounting

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

1шт.

35

A61453

GUIDE - steering hoses

2шт.

36

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

37

A34651

LOCK WASHER

- Shakeproof, 3/4" ext.

2шт.

38

195-45

WASHER,3/4"

2шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 13/16 x 5/64", Includes Ref: 10

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 13/16 x 5/64"

1шт.
