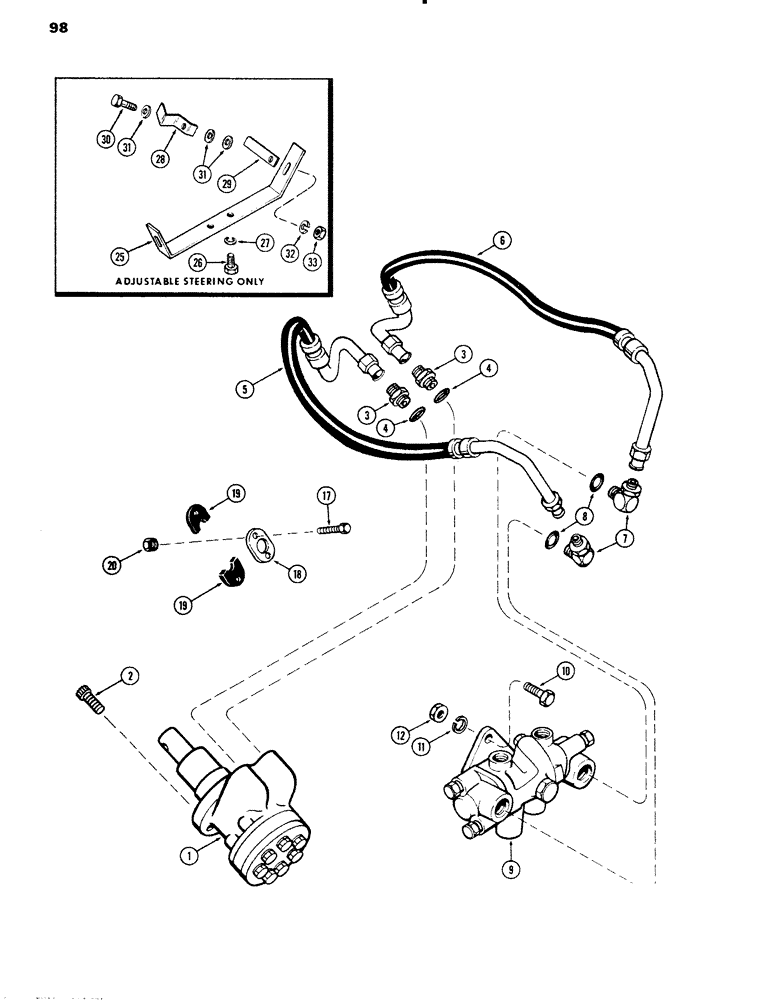

Запчасти Case IH 1090 (098) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

1

A62319

PUMP ASSY. - steering hand (See Fig. 106)(12:1 ratio)

1шт.

1

A60202

PUMP ASSY. - steering hand (See Fig. 108)(18:1 ratio)

1шт.

2

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - 5/16 x 1" N.C. cap

4шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Assy, Hose, for 1/2" tube, Incl. Ref 4 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

5

A60200

HYD TUBE

HOSE - pump to valve, R.H.

1шт.

6

A60201

HYD TUBE

HOSE - pump to valve, L.H.

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, hose to valve, Includes Ref: 8 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

9

A60207

VALVE

ASSY. - steering control (See Fig. 104)

1шт.

10

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

18

A60206

PLATE - steering hose clamp

2шт.

19

A60205

CLAMP - hoses (Neoprene)

4шт.

20

25-104

NUT,1/4"-20, G5

4шт.

25

A59245

BAR - hose clamp (w/adj. steering column only)

1шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

A60203

CLAMP - tilt steering hoses

2шт.

29

A60204

PLATE - clamp

2шт.

30

31-520

BOLT - 5/16 x 1-1/4" N.C. hex.

2шт.

31

195-22

WASHER

- 3/8 x 3/4 x 1/16"

6шт.

32

92-5

LOCK WASHER,5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 31/32 x 3/32"

1шт.
