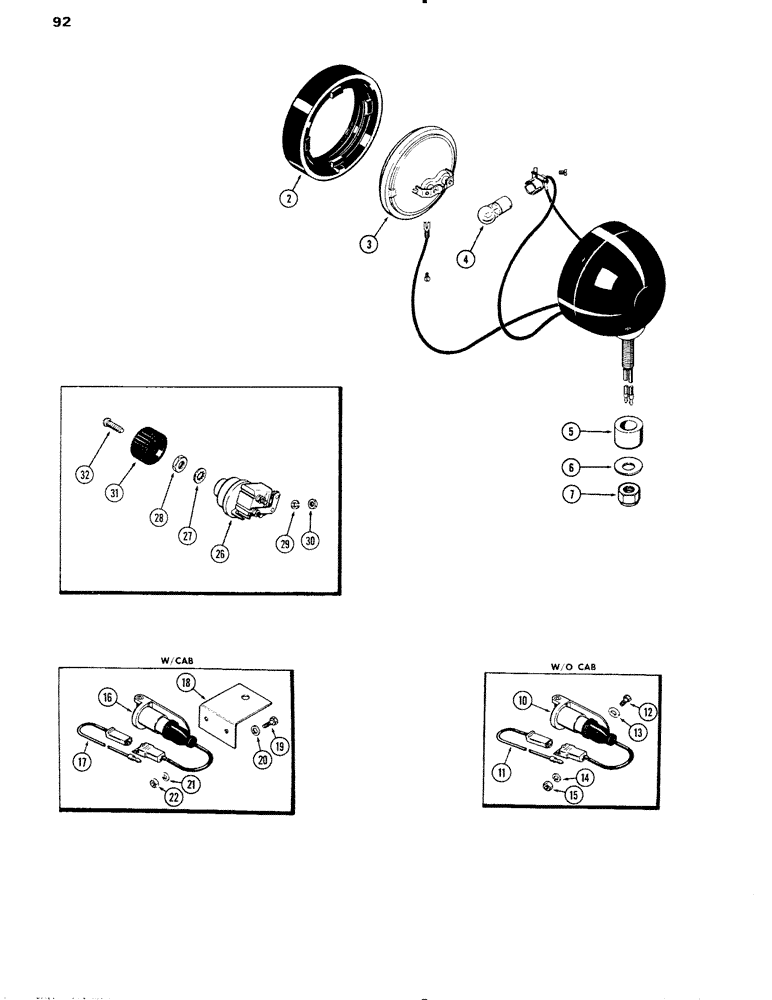

Запчасти Case IH 1090 (092) - TAIL AND WARNING LAMP (04) - ELECTRICAL SYSTEMS

A59703

LAMP

- rear flood & tail, Includes Ref: 2 - 5

1шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A42295

BULB

- sealed beam

1шт.

4

B50223

BULB

- lamp, tail

1шт.

5

D37048

BUSHING

- pivot, lamp mounting

1шт.

6

D37049

WASHER

- wave, tail lamp mounting

1шт.

7

129-125

NUT,1/2"-20, G5

1шт.

A60512

SOCKET/RECEPTACLE

ATTACHMENT - socket, Includes Ref: 10 -15

1шт.

10

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet, rear auxiliary outlet w/o cab

1шт.

11

A65060

ELECTRICAL WIRE

WIRE - lead, rear auxiliary outlet w/o cab

1шт.

12

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- mach. #10-24 x 3/4" rd. hd., rear auxiliary outlet w/o cab

2шт.

13

195-513

WASHER,#10

- plain, 7/32 x 1/2 x 1/16", rear auxiliary outlet w/o cab

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Rear auxiliary outlet w/o cab #10

2шт.

15

129-17

NUT,Hex, #10 - 24

NUT - hex., rear auxiliary outlet w/o cab #10-24

2шт.

A61680

SCREW

ATTACHMENT - socket, Includes Ref: 16 - 22, w/cab

1шт.

16

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet, w/cab

1шт.

17

A65060

ELECTRICAL WIRE

WIRE - lead, w/cab

1шт.

18

A61679

BRACKET - socket mounting, w/cab

1шт.

19

163-4

SCREW,Hex, #10 - 32 x 5/8"

- #10 x 5/8" N.C. hex., mach., w/cab

2шт.

20

195-512

WASHER,#10

- plain, 7/32 x 7/16 x 1/16", w/cab

2шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , w/Cab #10

2шт.

22

129-37

NUT,#10-32

w/cab #10-32

2шт.

25

A59694

SWITCH

ASSY. - light

1шт.

26

A43658

BREAKER

- circuit (30 amp), light switch

1шт.

27

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" int., light switch

1шт.

28

A20467

NUT

- light switch lock, light switch

1шт.

29

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Light switch #10

2шт.

30

129-37

NUT,#10-32

Light switch #10-32

2шт.

31

A59695

KNOB

- light switch, light switch

1шт.

32

A59696

SCREW,#8 - 32 x 5/8"

- light switch knob, light switch

1шт.
