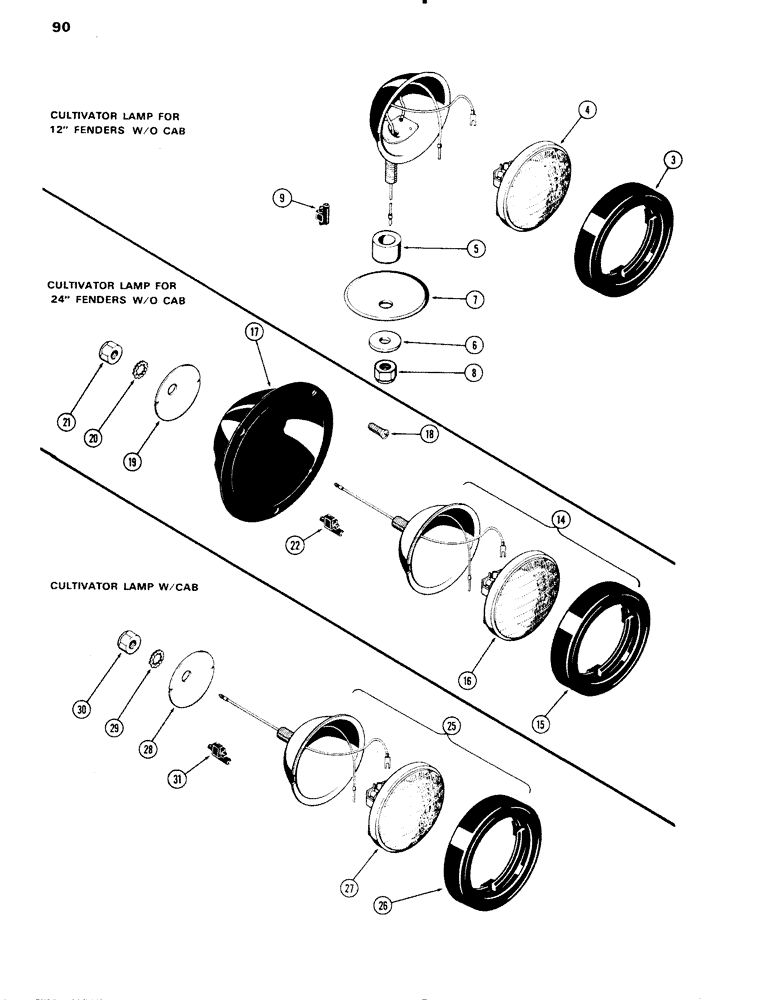

Запчасти Case IH 1090 (090) - LIGHTING EQUIPMENT, CULTIVATING LAMPS, FOR 12 INCH FENDER, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

A60510

LAMP

ATTACHMENT - lamp, Includes Ref: 3 - 9

1шт.

A59724

HEADLAMP

LAMP - front cultivator, Includes Ref: 3 - 9

2шт.

3

A25213

RETAINER

- sealed beam

1шт.

4

A42294

SEALED BEAM UNIT

BULB - sealed beam

1шт.

5

D37048

BUSHING

- lamp pivot

1шт.

6

D37049

WASHER

- front cultivator mounting

2шт.

7

A59725

SPACER

BRACE - front cultivator

2шт.

8

129-125

NUT,1/2"-20, G5

2шт.

9

A62556

CONNECTOR, ELEC

CONNECTOR - splice (not used this application)

2шт.

A60511

LAMP

ATTACHMENT - lamp, Includes Ref: 14 - 22, for 24" fender w/o cab

1шт.

14

A59723

LAMP

- front cultivator, Includes Ref: 15 and 16, for 24" fender w/o cab

2шт.

15

A25213

RETAINER

- sealed beam, for 24" fender w/o cab

1шт.

16

A42294

SEALED BEAM UNIT

BULB - sealed beam, for 24" fender w/o cab

1шт.

17

A59698

BEZEL

- cultivator lamp mtg., R.H., for 24" fender w/o cab

1шт.

17

A59699

BEZEL

- cultivator lamp mtg., L.H., for 24" fender w/o cab

1шт.

18

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" self-tapping, for 24" fender w/o cab

6шт.

19

A59702

RETAINER

- front cultivator lamp, for 24" fender w/o cab

2шт.

20

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , for 24" fender w/o Cab Ext-Int Tooth, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

For 24" fender w/o Cab 1/2"-13, G5

2шт.

22

A62556

CONNECTOR, ELEC

CONNECTOR - splice (not used this application), for 24" fender w/o cab

2шт.

A61753

ATTACHMENT

- lamp, Includes Ref: 25 - 31, w/cab

1шт.

25

A59723

LAMP

- front cultivator, Includes Ref: 26 and 27, w/cab

2шт.

26

A25213

RETAINER

- sealed beam, w/cab

1шт.

27

A42294

SEALED BEAM UNIT

BULB - sealed beam, w/cab

1шт.

28

A59702

RETAINER

- front cultivator lamp, w/cab

2шт.

29

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

2шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.

31

A62556

CONNECTOR, ELEC

CONNECTOR - splice (not used this application), w/cab

2шт.
