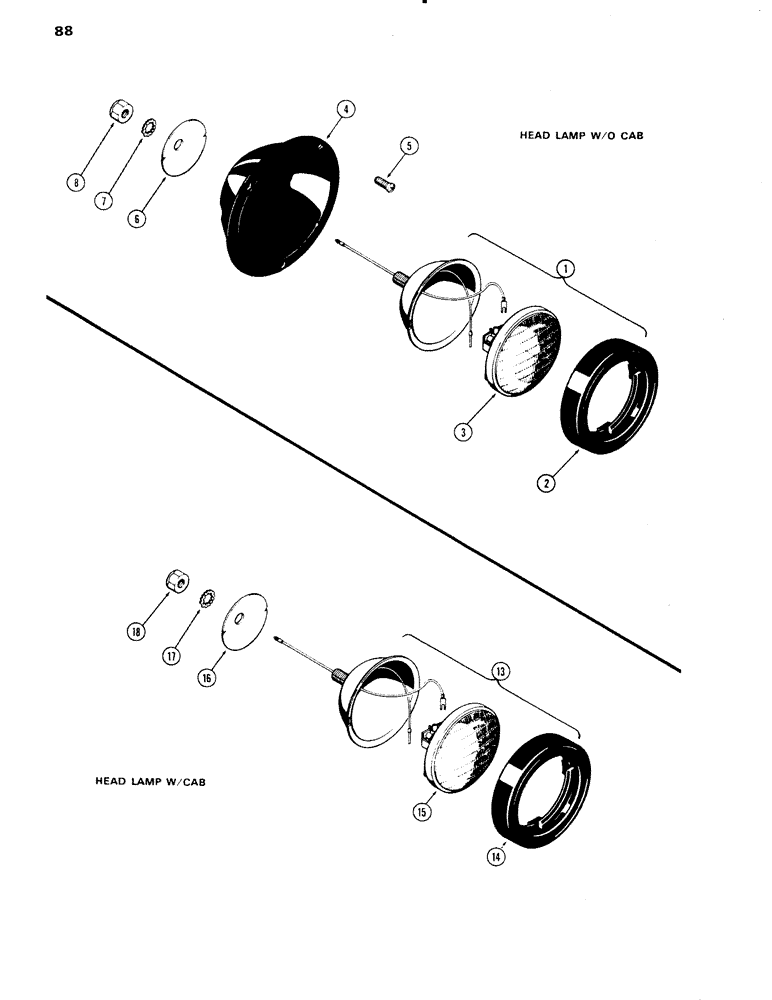

Запчасти Case IH 1090 (088) - LIGHTING EQUIPMENT, HEAD LAMPS, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

A59701

LAMP

- front head driving, Includes Ref: 2 and 3

2шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A24572

LAMP

KIT - sealed beam, w/gasket

1шт.

4

A59698

BEZEL

- front head lamp mtg., R.H.

1шт.

4

A59699

BEZEL

- front head lamp mtg., L.H.

1шт.

5

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" self-tapping

6шт.

6

A59702

RETAINER

- front head lamp

2шт.

7

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

13

A59701

LAMP

- front head driving, Includes Ref: 14 and 15, w/cad

2шт.

14

A25213

RETAINER

- sealed beam, w/cad

1шт.

15

A24572

LAMP

KIT - sealed beam, w/gasket, w/cad

1шт.

16

A59702

RETAINER

- front head lamp, w/cad

2шт.

17

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.
