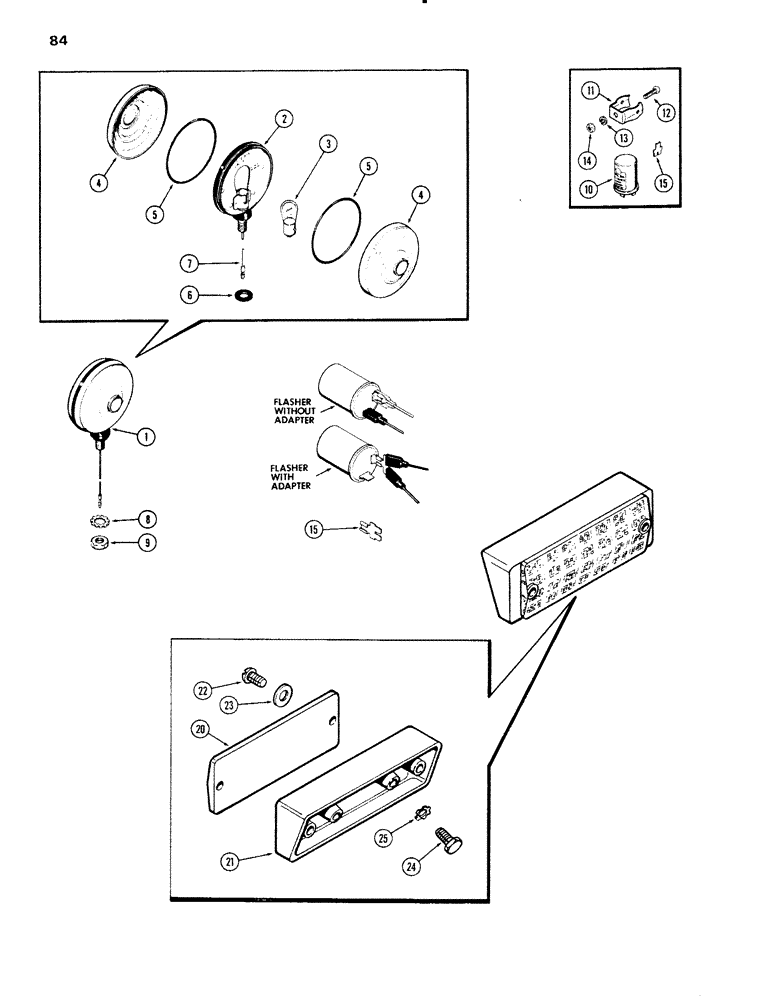

Запчасти Case IH 1090 (084) - FLASHER ATTACHMENT (04) - ELECTRICAL SYSTEMS

1

A34853

LAMP

- flasher, Includes Ref: 2 - 7

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp (Order ref. 1)

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A41261

LENS

- lamp

2шт.

5

A41262

O-RING,3.484" ID x 0.139"

"O" RING - lamp

2шт.

6

A41263

GASKET - lamp

1шт.

7

A41260

WIRE - lamp

1шт.

8

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

9

129-125

NUT,1/2"-20, G5

2шт.

10

A65550

FLASHER UNIT

FLASHER - element (Replaces A34867)

1шт.

11

A34869

BRACKET

- flasher element mounting

1шт.

12

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. rd. hd. mach.

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

1шт.

15

A34862

KIT

ADAPTER KIT - flasher by-pass (required for steady light) (See Inset)

1шт.

20

A62415

REFLECTOR

- fender, red, reflector

2шт.

21

A62416

BRACKET

- reflector

2шт.

22

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" rd. hd., self-tapping, reflector

4шт.

23

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", reflector

4шт.

24

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" N.C. hex., self-tapping, reflector

4шт.

25

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext., reflector

4шт.
