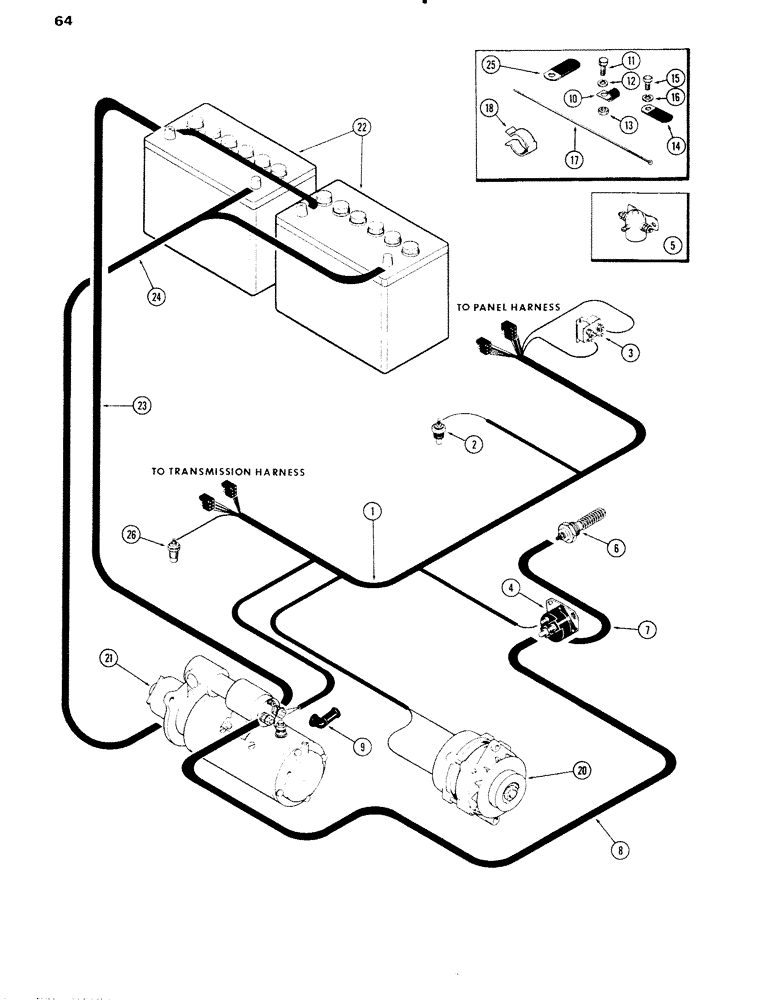

Запчасти Case IH 1090 (064) - ELECTRICAL EQUIPMENT AND WIRING, (451B) DIESEL ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A61933

HARNESS

- engine wire (Replaces A61503)

1шт.

2

A61787

TRANSMITTER

UNIT - engine temp. sending

1шт.

3

A59704

BREAKER

- circuit (See Fig. 70)

1шт.

4

A39079

SOLENOID

- manifold heater (Replaces A57069)(See Fig. 70)

1шт.

5

A57069

SOLENOID

- manifold heater (Order A39079)

1шт.

6

A37775

HEATER

- manifold (Order from Fig. 24)

1шт.

7

A61036

ELECTRICAL WIRE

WIRE - manifold, Serial Range: heater-solenoid

1шт.

8

A59713

ELECTRICAL WIRE

WIRE - heater, Serial Range: solenoid-starter

1шт.

9

A21753

CAP

BOOT - terminal, starter & solenoid

2шт.

10

A59718

CLAMP

CLIP - engine wire harness

1шт.

11

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

BOLT - 5/16 x 5/8" sltd. pan hd. mach.

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

A37179

CLIP

- fender & alternator wires

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - engine wire harness

1шт.

18

A60894

CLIP

- alternator wire harness to breather tube

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSY. - (Order from Figure 82)

1шт.

21

REF

INSTRUCTION

STARTING MOTOR - (Order from Figure 70)

1шт.

22

A38411

DRY BATTERY

- 12 volt

2шт.

23

A62141

ELECTRIC CABLE

CABLE - battery, positive term. to starter (47")

1шт.

24

A59728

CABLE

- battery, negative (ground)

1шт.

25

A22883

CLIP

- battery cable

1шт.

26

A61463

SWITCH

UNIT - oil pressure sending

1шт.
