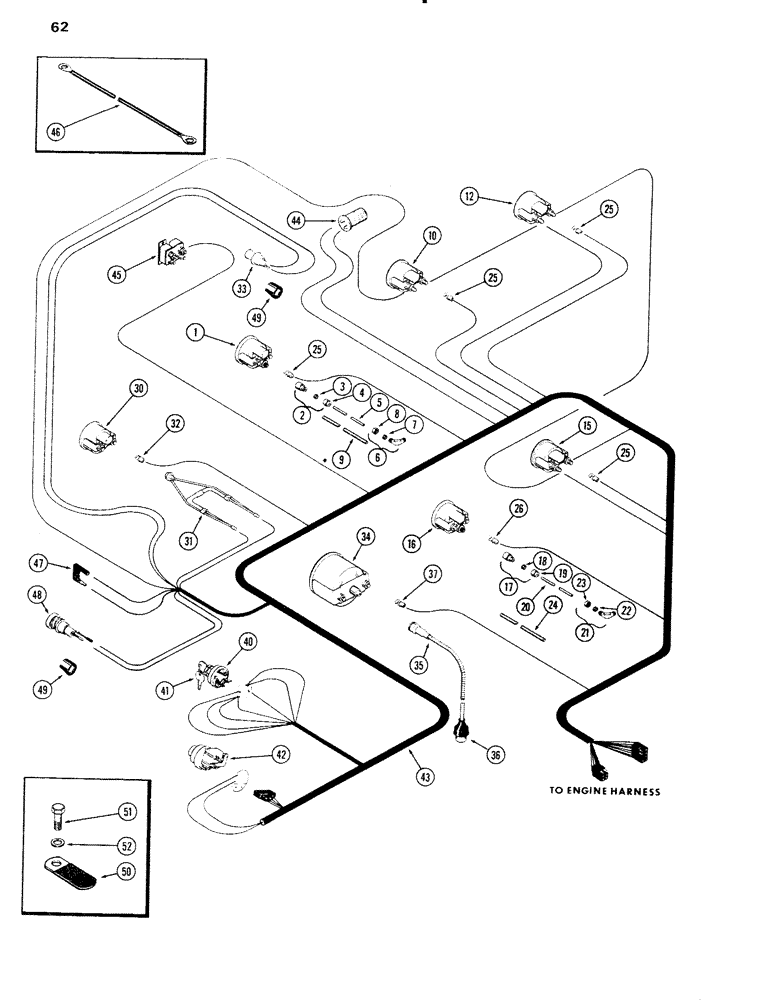

Запчасти Case IH 1090 (062) - INSTRUMENTS AND WIRING (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

- engine oil pressure

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T., Includes Ref: 3 and 4

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

5

A59679

TUBE

- engine oil pressure

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 deg., 1/8" tube, 1/8" P.T., Includes Ref: 7 and 8

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

9

A59680

LOOM

- engine oil pressure tube

1шт.

10

A61786

ELECTRICAL GAUGE

GAUGE - engine temperature (Replaces A61785)

1шт.

12

A59682

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

15

A59683

GAUGE

- transmission temperature

1шт.

16

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure

1шт.

Used on power shift models with & without P.T.O. and on mechanical shift models with P.T.O.

1шт.

17

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T., Includes Ref: 18 and 19

1шт.

18

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

19

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

20

A59685

TUBE

- transmission pressure gauge

1шт.

21

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 deg., 1/8" tube, 1/8" P.T., Includes Ref: 22 and 23

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

24

A59686

LOOM

- transmission pressure gauge tube

1шт.

25

A14553

BULB

- gauges

4шт.

26

A14553

BULB

- transmission pressure gauge

1шт.

Used on power shift models with & without P.T.O. and on mechanical shift models with P.T.O.

1шт.

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - 2-9/16" button (used w/mech. shift, w/o P.T.O.)

1шт.

30

A59687

DIAL

CASE - alternator warning lamp

1шт.

31

A59688

SPRING

RECEPTACLE & WIRE - alternator warning lamp

1шт.

32

A14553

BULB

- alternator warning lamp

1шт.

33

A59689

LAMP

- hand brake warning

1шт.

A42296

BULB

- 12 v. flasher (red)

1шт.

34

A62600

TACHOMETER

ASSY.

1шт.

35

A59691

CABLE

- tachometer drive

1шт.

36

A24523

KIT

- tachometer cable repair

1шт.

37

A14553

BULB

- tachometer light

1шт.

40

A59693

SWITCH

ASSY. - ignition & starting

1шт.

41

A60319

KEY

RING ASSY. - ignition (Set of 2)

1шт.

42

A59694

SWITCH

ASSY. - lights (See Figure 84)

1шт.

43

A59705

HARNESS

- instrument panel wire

1шт.

44

A65550

FLASHER UNIT

- 12 volt (Replaces A34867)

1шт.

45

A59704

BREAKER

- circuit, 80 amp.

1шт.

46

A60882

STRAP

- instrument panel grounding

1шт.

47

A61504

DIODE

LEAD DIODE - 180 deg. connection

1шт.

48

A61505

LAMP

- oil filter warning

1шт.

A42296

BULB

- 12 v. flasher (red)

1шт.

49

A62677

GUARD

SHROUD - lamp

2шт.

50

A37179

CLIP

- instrument wire harness

1шт.

51

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

52

92-5

LOCK WASHER,5/16"

1шт.
