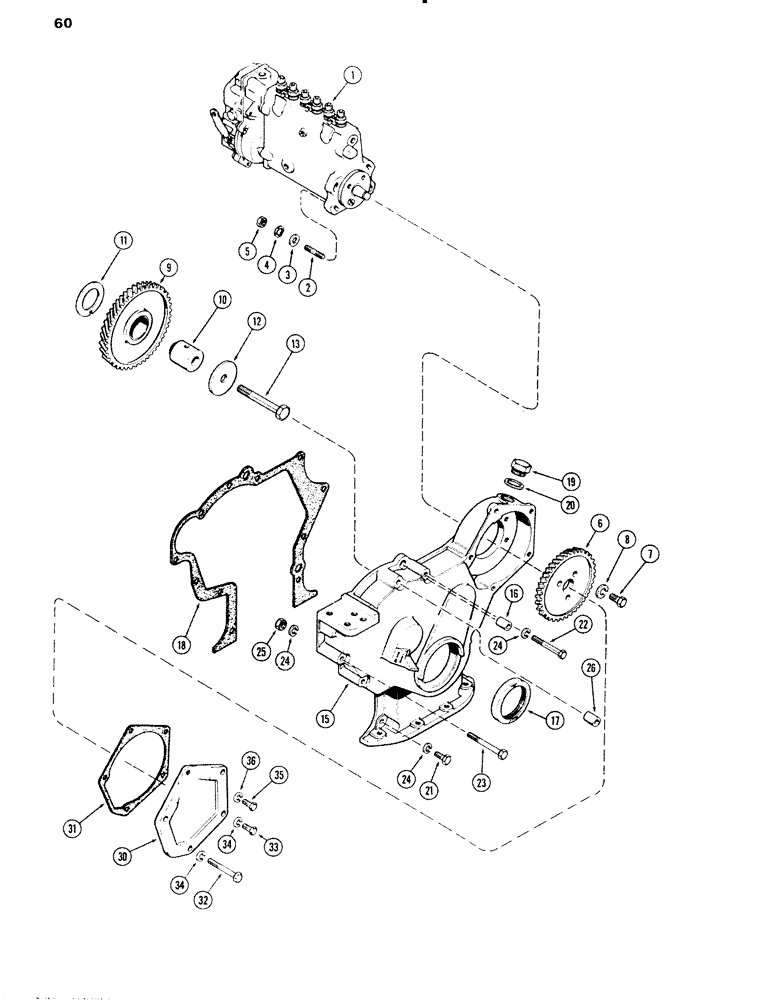

Запчасти Case IH 1090 (060) - FUEL INJECTION PUMP AND DRIVE, (451B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A62571

FUEL INJECTION PUMP

PUMP ASSY. - (1st used eng. SN2323001)(See Fig. 54)

1шт.

1

A58536

PUMP ASSY. - (Used prior to eng. SN2323001)(See Fig. 58)

1шт.

2

A58689

STUD

- injection pump mounting, 3/8" N.C. x 1-7/8"

4шт.

3

A57470

WASHER

- 13/32 x 11/16 x 16 ga.

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

6

A58693

GEAR

- injection pump (48 teeth)

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A62542

GEAR

ASSY. - idler, w/bushing (53 teeth)(Replaces A58686)

1шт.

10

A58690

SHAFT

- idler gear

1шт.

11

A58691

WASHER

- thrust, idler shaft

1шт.

12

A58692

PLATE

- thrust, idler shaft

1шт.

13

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

15

A58609

COVER

ASSY. - timing gear, Includes Ref: 16

1шт.

16

A58611

PIN

- dowel, cover

2шт.

17

A62049

OIL SEAL

- crankshaft front oil

1шт.

18

A58612

GASKET

-, Serial Range: cover-block

1шт.

19

A21140

PLUG

- timing window

1шт.

20

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

22

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

23

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

3шт.

23

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

2шт.

24

92-6

LOCK WASHER,3/8"

11шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

26

A19774

BUSHING

SPACER - alternator pry point

1шт.

30

A61053

COVER

- fuel pump gear

1шт.

31

A58615

GASKET

- cover

1шт.

32

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

2шт.

33

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.
