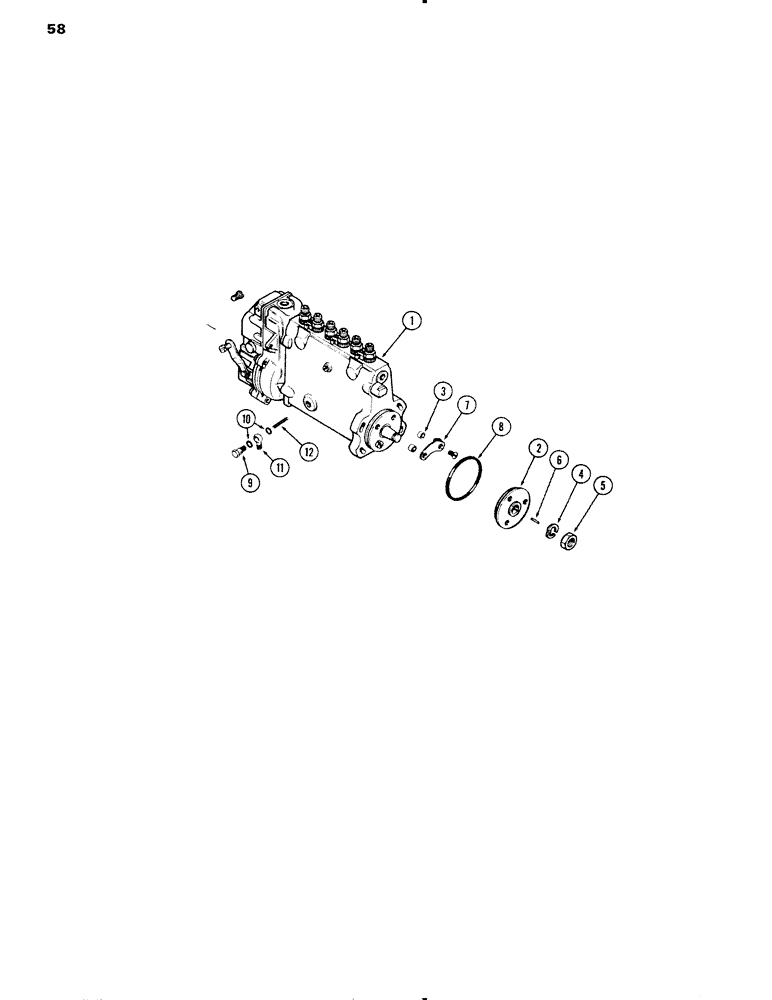

Запчасти Case IH 1090 (058) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2323001 (03) - FUEL SYSTEM

1

A58536

PUMP ASSY. - fuel injection (2000 R.P.M.) Bosch #PES6A85C 420LS2264 Governor #EP/RSV300-1000A2B521DR, Includes Ref: 2 - 12

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil tube to pump, banjo

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.
