(054) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, 1ST USED ENGINE SERIAL NUMBER 2323001

Запчасти Case IH 1090 (054) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, 1ST USED ENGINE SERIAL NUMBER 2323001 (03) - FUEL SYSTEM

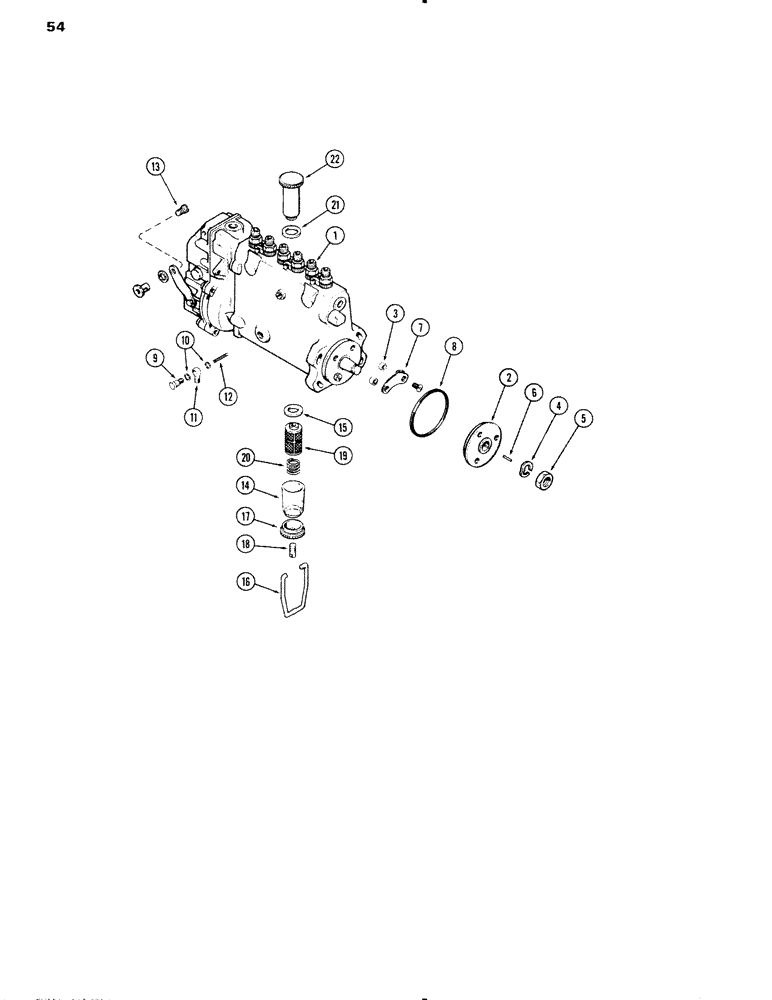

Схема запчастей Case IH 1090 - (054) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, 1ST USED ENGINE SERIAL NUMBER 2323001 (03) - FUEL SYSTEM
20
16
21
3
18
15
5
11
22
8
9
10
14
1
2
17
12
6
19
13
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62571

FUEL INJECTION PUMP

PUMP ASSY. - fuel injection (2100 RPM) Bosch #PES6A85C420LS2264 Governor #EP/RSV375-1050A2B, Includes Ref: 2 - 22

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting, 2-61/64 x 3-3/16 x 1/8"

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A44259

SCREW

- stop control lock (Replaces A42829)

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - retaining

1шт.

18

A43349

STUD

- bailnut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- port, copper gasket

1шт.

22

A43343

CARTRIDGE

PRIMER - hand pump

1шт.
