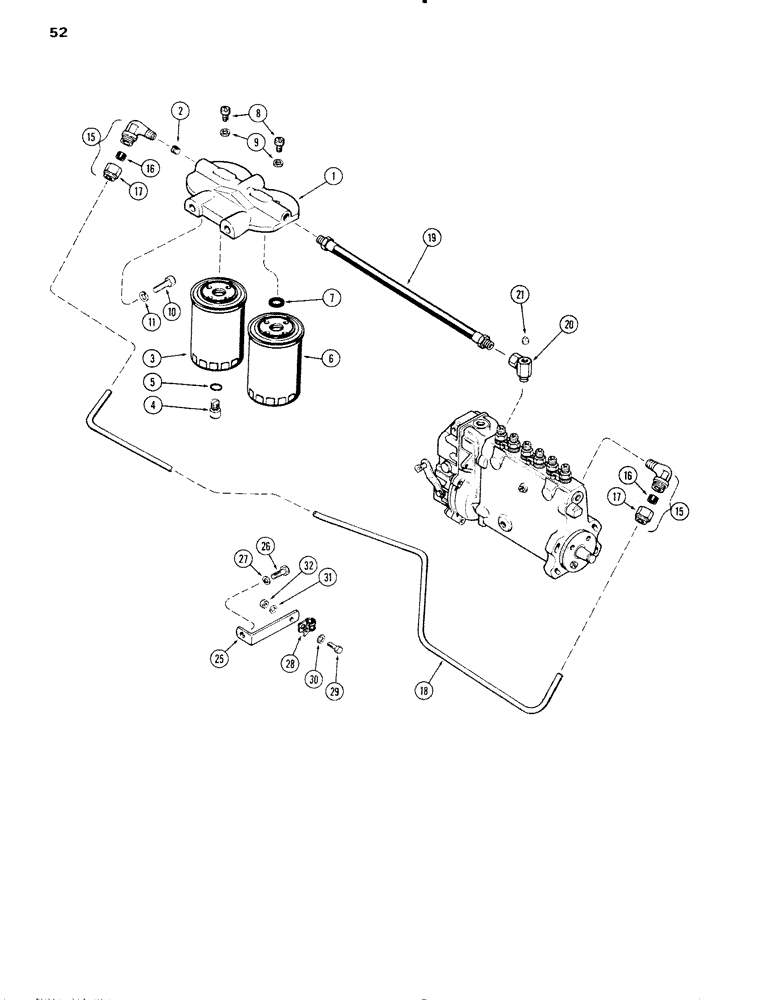

Запчасти Case IH 1090 (052) - FUEL INJECTION FILTER SYSTEM, (451B) DIESEL ENGINE, 1ST USED ENGINE SERIAL NUMBER 2323001 (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY. - fuel filter, Includes Ref: 2

1шт.

2

221-41

PLUG

- 1/8" P.T. sltd. hdless.

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - filter replacement, Includes Ref: 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes Ref: 4 and 5

1шт.

4

G49080

PLUG

- 3/8" N.C., 10 pt. hd.(plastic)

1шт.

5

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - 3/8 x 9/16 x 3/32"

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes Ref: 7

1шт.

7

A42315

GASKET

-, Serial Range: filter-head

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- filter head bleed

2шт.

9

A20662

GASKET

WASHER - bleed screw

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" P.T., 5/16" tube, Includes Ref: 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

18

A62342

TUBE

- pump to 1st stage filter

1шт.

19

A58716

HOSE

- filter, Serial Range: head-pump

1шт.

20

A20539

FITTING

UNION - switch (in injection pump)

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.

25

A58718

BRACKET

-, Serial Range: tubes-block

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - for 5/16" tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.
