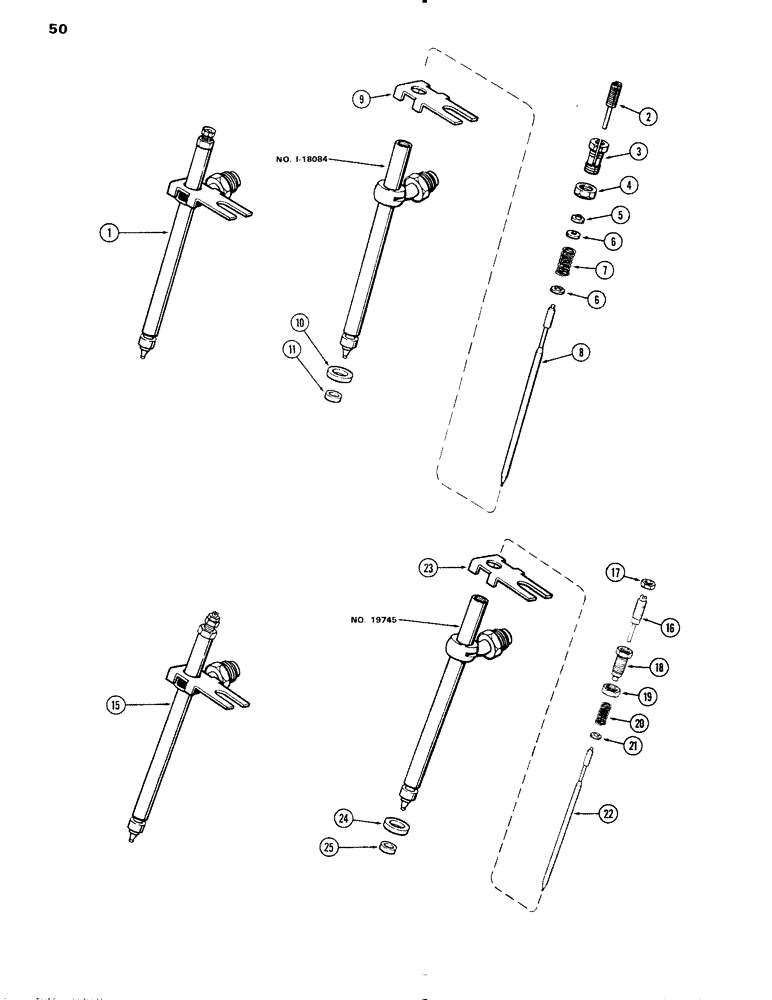

Запчасти Case IH 1090 (050) - FUEL INJECTION NOZZLE, (451B) DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A58694
NOZZLE
ASSY. - fuel injection (Supplier's No. I18084)(Order A62809), Includes Ref: 2 - 11
6шт.
Whenever nozzle is removed from head, Ref. 11 or 25 & washer Ref. 10 or 24 must be replaced before nozzle is installed back in head.
1шт.
A138322R
REMAN-INJECT NOZZLE
1090 (1/70-12/71) REMAN FOR NEW P/N A58694
6шт.
A138322C
CORE-NOZZLE, INJECT
Return Number
1шт.
2
A41408
ADJUSTMENT SCREW,#10 - 56 x 1.40"
SCREW - lift adjusting
1шт.
3
A41409
ADJUSTMENT SCREW,5/16" - 48
SCREW - pressure adjusting
1шт.
4
A42424
LOCK NUT
- lock, pressure adjusting (5/16" -48 hex.)
1шт.
5
A41407
WASHER
- ball
1шт.
6
A41401
SEAT
- spring
2шт.
7
A41444
VALVE SPRING
SPRING - nozzle pressure locating
1шт.
8
NSS
NOT SOLD SEPARAT
VALVE - nozzle
1шт.
9
A41768
PLATE
- nozzle locating
1шт.
10
A41403
WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk
- plain
1шт.
11
A41402
SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk
- carbon stop
1шт.
15
A62809
NOZZLE CAP
NOZZLE ASSY. - fuel injection (Supplier's No. 19745 color code red), Includes Ref: 16 - 25
6шт.
Whenever nozzle is removed from head, Ref. 11 or 25 & washer Ref. 10 or 24 must be replaced before nozzle is installed back in head.
1шт.
A138322R
REMAN-INJECT NOZZLE
1090 (1/70-12/71) REMAN FOR NEW P/N A62809
6шт.
A138322C
CORE-NOZZLE, INJECT
Return Number
1шт.
16
A43599
ADJUSTMENT SCREW,#10 - 56 x 1.39"
SCREW - lift adjusting
1шт.
17
A43602
NUT
- lock, lift adjusting (#10-56 hex.)
1шт.
18
A43600
ADJUSTMENT SCREW,#10 - 56 x 0.68"
SCREW - pressure adjusting
1шт.
19
A42424
LOCK NUT
- lock, pressure adjusting (5/16" -48 hex.)
1шт.
20
A43601
SPRING
- pressure adjusting (brown stripe)
1шт.
21
A41401
SEAT
- spring
1шт.
22
NSS
NOT SOLD SEPARAT
VALVE - nozzle
1шт.
23
A41768
PLATE
- nozzle locating
1шт.
24
A41403
WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk
- plain
1шт.
25
A41402
SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk
- carbon stop
1шт.
Выбрано товаров: 28
