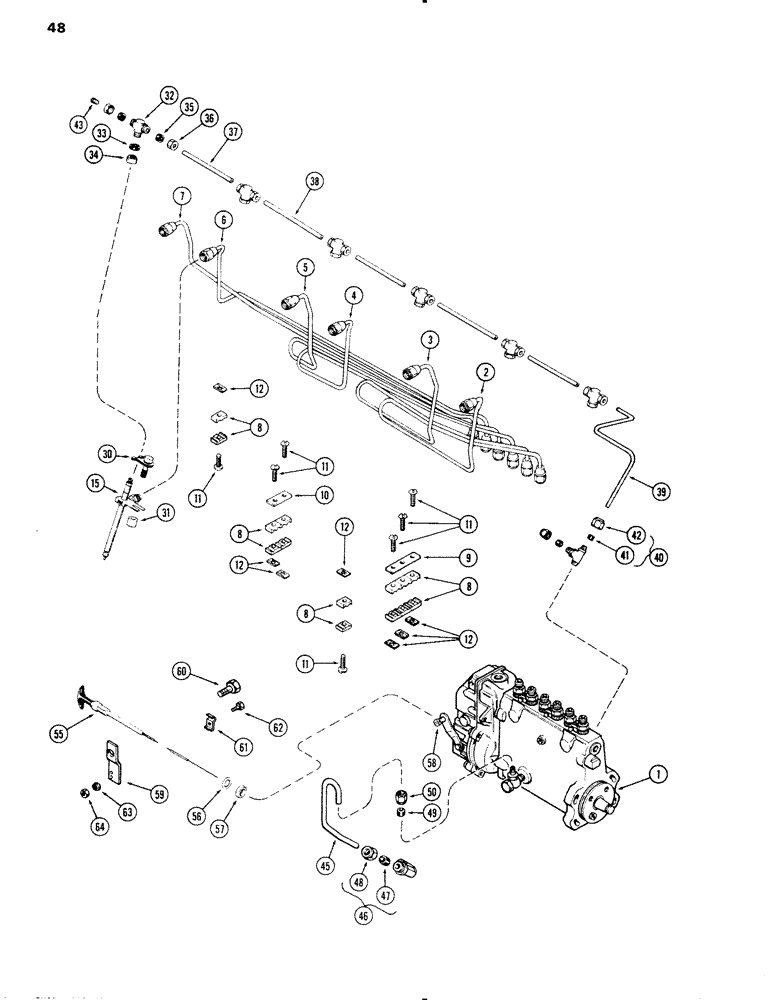

Запчасти Case IH 1090 (048) - FUEL INJECTION SYSTEM, (451B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A58536

PUMP ASSY, (Used prior to eng. S/N 2323001) (See Fig. 60)

1шт.

1

A62571

FUEL INJECTION PUMP

ASSY, (1st used eng. S/N 2323001) (See Fig. 54)

1шт.

2

A58702

TUBE

ASSY, fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY, fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY, fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY, fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSY, fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSY, fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

Injection tube

14шт.

9

A58708

PLATE

Injection tube bracket (6 line)

1шт.

10

A58710

PLATE

Injection tube bracket (4 line)

1шт.

11

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

Mach.

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY - fuel injection (See Fig. 50)

6шт.

30

A58695

CLAMP

ASSY, nozzle

6шт.

31

A58696

SPACER

SPACER - nozzle clamp

6шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY, nozzle leak-off

6шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

Cap

6шт.

34

A58961

NUT

Cap

6шт.

35

222-102

SLEEVE,1/4" Tube

12шт.

36

87017024

TUBE NUT,1/2"-24

For 1/4" tube

12шт.

37

A58965

TUBE

Leak-off (4-5/8" long)

3шт.

38

A58964

TUBE

Leak-off (5-5/8" long)

2шт.

39

A58963

TUBE

Leak-off, #1, Serial Range: nozzle-valve

1шт.

40

A59097

VALVE

Leak-off check (in injection pump), Includes Ref 41 and 42

1шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

For 1/4" tube

2шт.

43

47-47

RIVET,FH, 1/4" x 7/16"

Leak-off tee

1шт.

45

A58717

TUBE

Oil, Serial Range: gallery-pump

1шт.

46

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1/4" tube, Includes Ref 47 and 48

1шт.

47

222-102

SLEEVE,1/4" Tube

1шт.

48

87017024

TUBE NUT,1/2"-24

For 1/4" tube

1шт.

49

222-102

SLEEVE,1/4" Tube

Oil gallery to pump

1шт.

50

87017024

TUBE NUT,1/2"-24

Oil gallery to pump

1шт.

55

A62403

CONTROL

Flexible stop, Includes Ref 56 and 57

1шт.

56

193-68

LOCK WASHER,Int Tooth, 3/8"

1шт.

57

129-63

NUT - 3/8" N.C. hex., jam

1шт.

58

A59101

PIVOT

Stop control

1шт.

59

A62098

BRACKET

Stop cable mounting

1шт.

60

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

61

B51765

CLIP

Cable

1шт.

62

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

1шт.

63

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

1шт.

64

129-16

NUT,#8-32

1шт.
