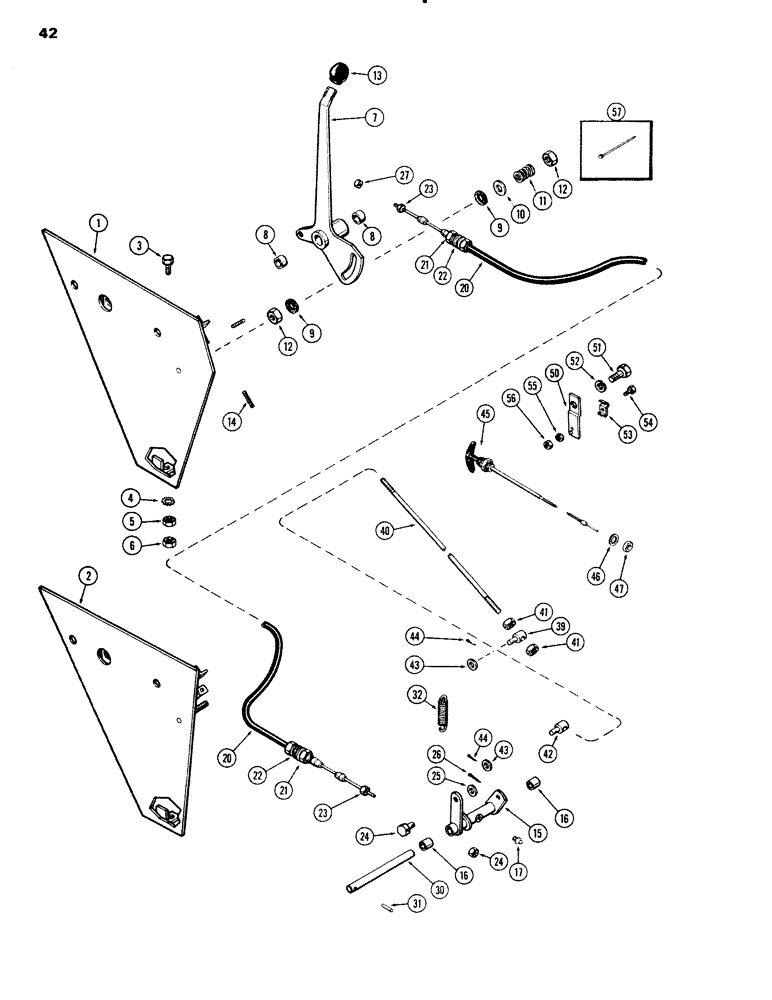

Запчасти Case IH 1090 (042) - THROTTLE CONTROLS, (451B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A62420

PLATE

ASSY. - shaft support (1st used trac. SN8670148)

1шт.

2

A61038

PLATE

ASSY. - shaft support (Used prior to trac. SN8670148)

1шт.

3

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

4

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

1шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

6

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex., jam

1шт.

7

A61074

LEVER ASSY. - throttle, Includes Ref: 8

1шт.

8

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever, 5/8 x 3/4 x 1/2" bronze

2шт.

9

A61069

DISC

- friction

2шт.

10

195-2035

WASHER,7/16" x 1 1/4" x .083"

- 1-1/4 x 7/16 x 14 ga.

1шт.

11

A26546

SPRING

- friction disc

1шт.

12

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex., jam

2шт.

13

A65699

KNOB

- lever (Replaces A62078 & A65541)

1шт.

14

A59433

SCREW,1/4" - 20 x 1 1/4"

- lock (1/4 x 1-1/4" N.C. sltd.)

2шт.

15

A62821

SLEEVE

ASSY. - throttle, Includes Ref: 16

1шт.

16

A61532

BUSHING - sleeve

2шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

20

A59434

CABLE

- hand throttle, Includes Ref: 21 - 23

1шт.

21

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" N.F. hex., jam

4шт.

22

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - Shakeproof, 7/16" int.

4шт.

23

129-27

NUT,Hex, #10 - 32

- #10 N.F. hex., jam

2шт.

24

A59435

PIN

- control cable pivot

1шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

2шт.

26

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

27

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex. Keps

1шт.

30

A61533

SHAFT - throttle crossover

1шт.

31

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

32

A59551

SPRING

- accelerator return

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Spring Anchor) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

25-144

JAM NUT,Jam, 1/4"-20, G5

- 1/4" N.C. hex., jam (Spring Anchor)

2шт.

39

A59251

PIVOT

- throttle

1шт.

40

A59170

ROD

- injection pump

1шт.

41

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex., jam

2шт.

42

A62419

PIVOT

- throttle

1шт.

43

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

44

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

45

A62403

CONTROL

- flexible stop, Includes Ref: 46 and 47

1шт.

46

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

47

129-63

NUT - 3/8" N.C. hex., jam

1шт.

50

A62098

BRACKET

- stop cable mounting

1шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

52

92-6

LOCK WASHER,3/8"

1шт.

53

B51765

CLIP

- stop cable

1шт.

54

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8 x 1/2" N.C. rd. hd. mach.

1шт.

55

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

56

129-16

NUT,#8-32

1шт.

57

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - cable to steering tube (Nylon)

1шт.
