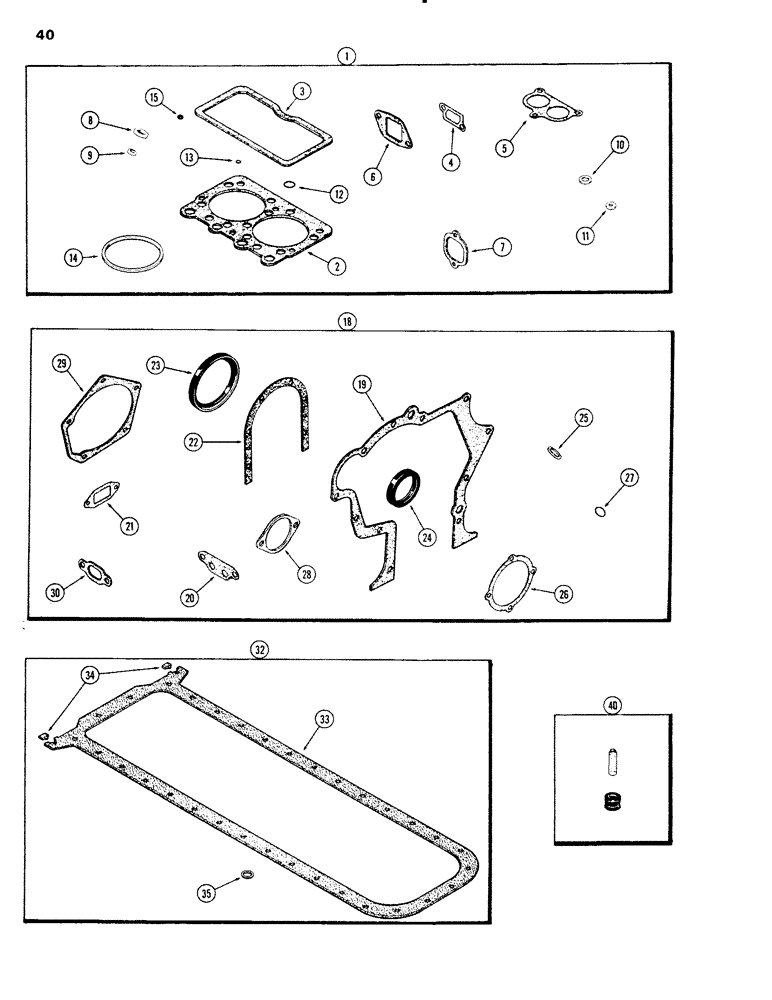

Запчасти Case IH 1090 (040) - ENGINE GASKET KITS, (451B) DIESEL ENGINE (02) - ENGINE

1

A42892

GASKET KIT

VALVE GRIND GASKET KIT, Includes: Ref. 2-15

1шт.

For complete engine overhaul order 1-A42892, 1-A42096, & 1-A43006

1шт.

2

A62216

GASKET

- cylinder head

3шт.

3

A58928

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A58637

MANIFOLD GASKET

- water manifold

3шт.

5

A58639

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A58895

GASKET

- exhaust manifold

6шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

6шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzle

6шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

3шт.

11

A23684

GASKET

GASKET - cover studs

6шт.

12

A34133

GASKET

- breather screw

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

3шт.

14

A59095

GASKET

RING - cylinder head fire, std.

6шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- exhaust intake valve

12шт.

18

A42096

GASKET

CYLINDER BLOCK GASKET KIT, Includes: Ref. 19-30

1шт.

For complete engine overhaul order 1-A42892, 1-A42096, & 1-A43006

1шт.

19

A58612

GASKET

- timing gear cover

1шт.

20

A58756

OIL PAN GASKET SET

- oil filter base (Not applicable)

1шт.

21

A58649

GASKET

- water pump body

1шт.

22

A32830

GASKET

- rear seal retainer

1шт.

23

A62050

OIL SEAL

- crankshaft rear oil

1шт.

24

A62049

OIL SEAL

- crankshaft front oil

1шт.

25

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

26

A58646

GASKET

- water pump, Serial Range: body-block

1шт.

27

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil filter base (Replaces A58602)

3шт.

28

A58615

GASKET

- fuel pump, gear cover

1шт.

29

A58617

GASKET

- pump mounting cover

1шт.

30

A58670

GASKET

- oil cooler, water opening cover

1шт.

32

A43006

GASKET KIT

OIL PAN GASKET KIT - (Replaces A41846), Includes Ref: 33 - 35

1шт.

For complete engine overhaul order 1-A42892, 1-A42096, & 1-A43006

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order ref. 32)

1шт.

34

A62402

GASKET

- oil pan corners

2шт.

35

A58608

GASKET

- oil pan drain plug

1шт.

40

M20614

SEAL KIT

VALVE SEAL SET

3шт.
