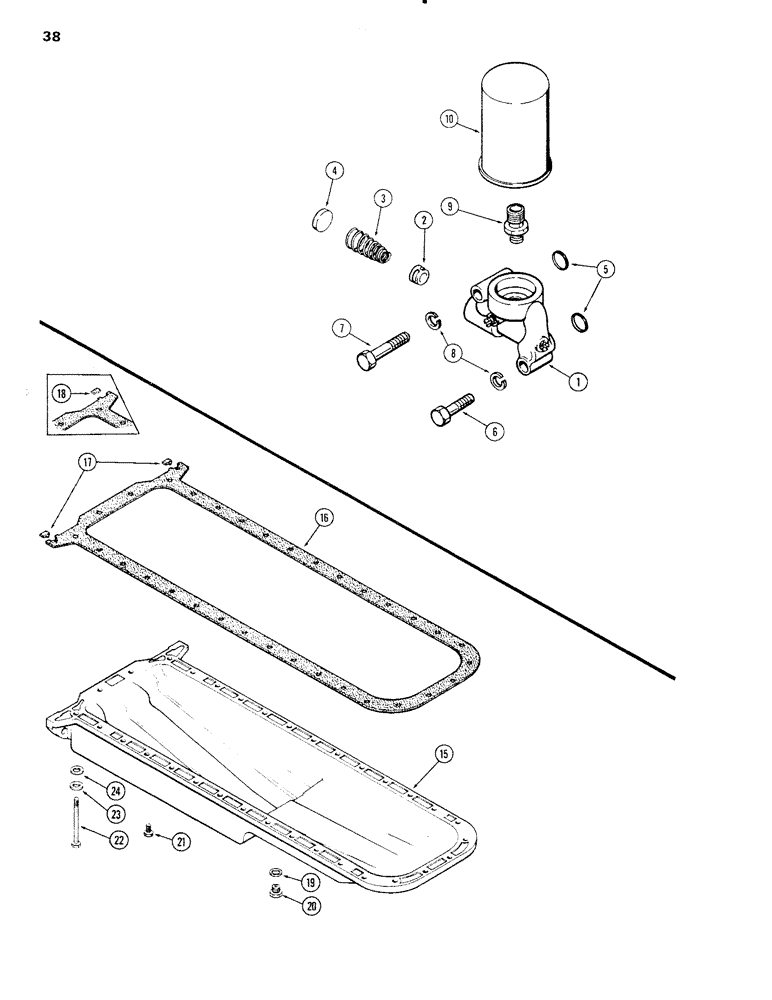

Запчасти Case IH 1090 (038) - OIL FILTER, (451B) DIESEL ENGINE (02) - ENGINE

1

A58830

BASE

ASSY. - oil filter, Includes Ref: 2 - 4

1шт.

2

A21090

VALVE

- relief filter

1шт.

3

A58669

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-17/64" cup type

1шт.

5

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - filter base to block (Replaces A58602)

2шт.

6

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

1шт.

7

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A59109

ADAPTER

-, Serial Range: element-base

1шт.

10

A62423

FILTER, ENGINE OIL

ELEMENT - filter, oil

1шт.

15

A63907

PAN

- oil (Replaces A58850)

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from Fig. 40)

1шт.

17

A62402

GASKET

- oil pan corners (1st used eng. SN2322106)

2шт.

18

A33017

OIL PAN GASKET SET

- oil pan corners (Used prior to eng. SN2322106)

2шт.

19

A58608

GASKET

- oil pan drain plug

1шт.

20

A14280

PLUG

- oil pan drain

1шт.

21

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. sems

28шт.

22

A57436

BOLT

- 3/8 x 5-3/4" N.C. hex. spec.

2шт.

23

A22317

WASHER

- 25/64 x 11/16 x 18 ga. copper

2шт.

24

A7085

WASHER

- 25/64 x 9/10 x 18 ga., copper

2шт.
