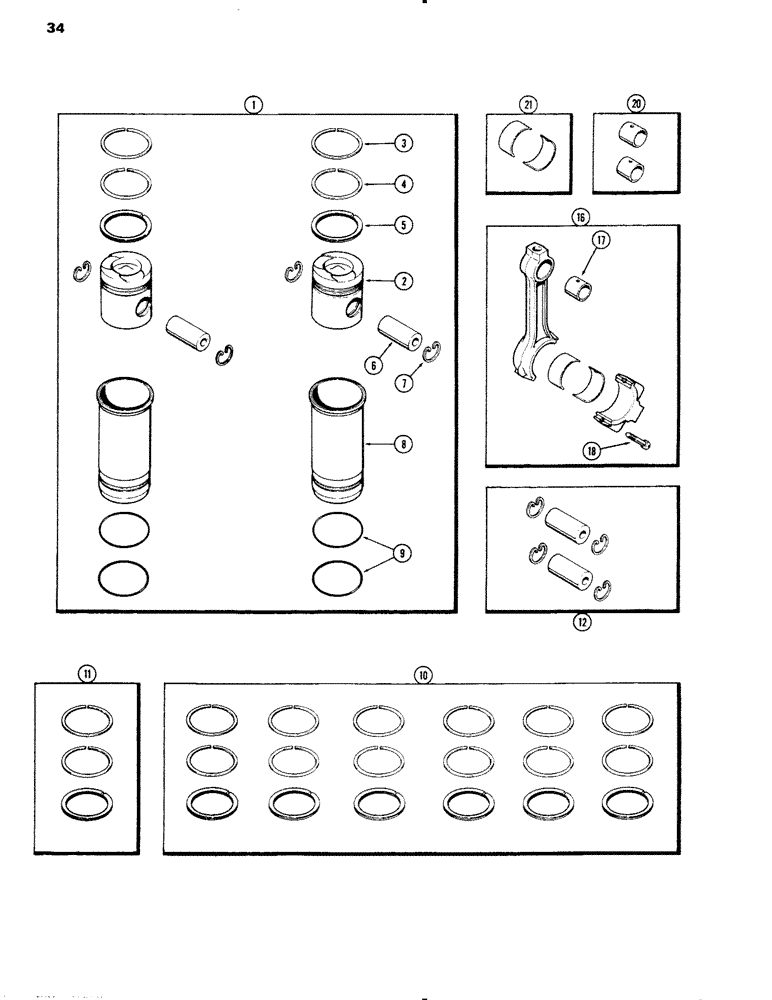

Запчасти Case IH 1090 (034) - PISTON ASSEMBLY AND CONNECTING RODS, (451B) DIESEL ENGINE (02) - ENGINE

1

A43714

KIT

PISTON & SLEEVE KIT - (Replaces A42069 & A43023), Includes Ref: 2 - 9

3шт.

2

A64766

PISTON

- cylinder, 4-3/8" bore (Replaces A58864)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove)(Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove)(Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove)(Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

8

A59093

SLEEVE

- piston (cylinder liner)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

10

A43029

RING, SET

RING KIT - re-ring (Set of 6)(Replaces A42080)

1шт.

11

A43028

RING, SET

RING KIT - re-ring (Set of 1)(Replaces A42079)

6шт.

12

A21725

KIT

PIN KIT - (Set of 2 w/rings)(Used prior to eng. SN2503823)

3шт.

12

A43713

PIN

KIT - (Set of 2 w/rings)(1st used eng. SN2503823)

3шт.

16

A58862

ROD

ASSY. - connecting (can use A62952 in complete sets), Includes Ref: 17 and 18

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A62184

STEP BOLT

BOLT - connecting rod cap, 1/2 x 2-3/16" N.F. spec.

2шт.

20

A21722

BUSHING

KIT - piston pin (Set of 2)

3шт.

21

A42493

INSERT

ASSY. - connecting rod bearing (Std.)

6шт.

21

A42478

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.002")

6шт.

21

A42479

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.010")

6шт.

21

A42480

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.020")

6шт.

21

A42481

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.030")

6шт.
