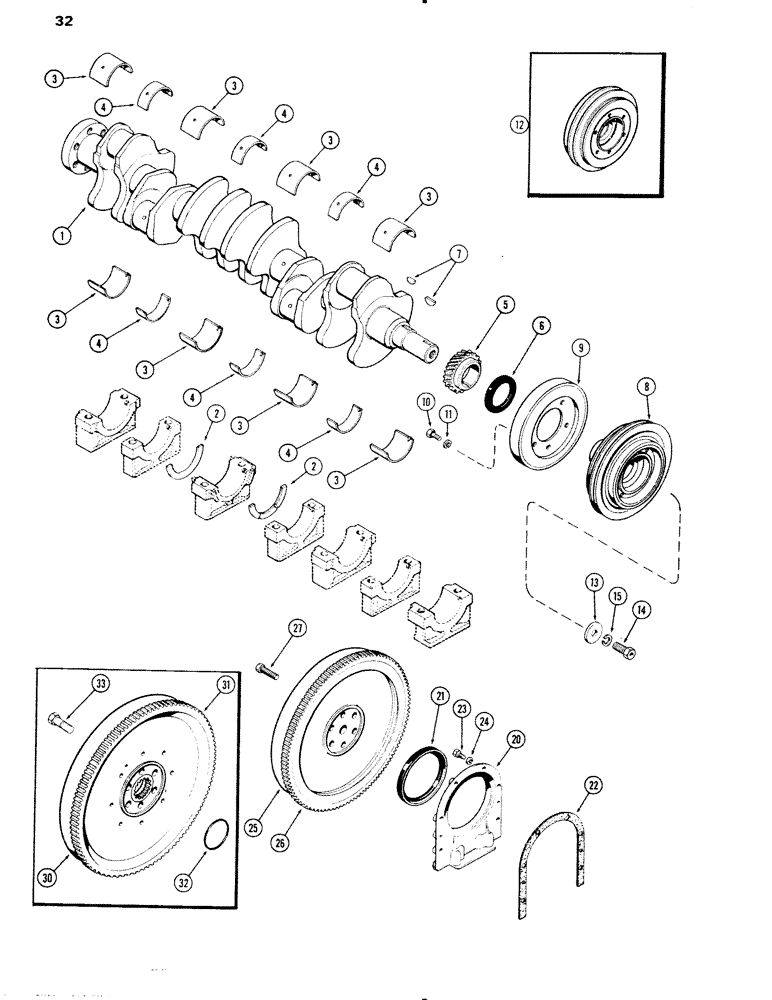

Запчасти Case IH 1090 (032) - CRANKSHAFT AND FLYWHEEL, (451B) DIESEL ENGINE (02) - ENGINE

1

A61258

CRANKSHAFT

- engine

1шт.

2

A62572

RING

WASHER - thrust, crankshaft (Std.)(Replaces A27835)

2шт.

2

A42933

WASHER

- thrust, crankshaft (.006" oversize)

1шт.

3

A42490

BEARING LINER

LINER - main bearing, wide (Std.)

4шт.

3

A42486

LINING

LINER - main bearing, wide (-.002")

4шт.

3

A42487

LINER

- main bearing, wide (-.010")

4шт.

3

A42488

LINER

- main bearing, wide (-.020")

4шт.

3

A42489

BEARING

LINER - main bearing, wide (-.030")

4шт.

4

A42492

KIT

LINER - main bearing, narrow (Std.)

3шт.

4

A42482

LINING

LINER - main bearing, narrow (-.002")

3шт.

4

A42483

LINING

LINER - main bearing, narrow (-.010")

3шт.

4

A42484

KIT

LINER - main bearing, narrow (-.020")

3шт.

4

A42485

LINING

LINER - main bearing, narrow (-.030")

3шт.

5

A58573

GEAR

- crankshaft front

1шт.

6

A62049

OIL SEAL

- crankshaft front

1шт.

7

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

A62958

PULLEY

ASSY. - fan drive, Includes Ref: 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

PULLEY - fan drive (Order A62958)

1шт.

9

A58900

DAMPER

- viscous, pulley

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

A58871

FAN

PULLEY - fan drive (Order A62958)

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- crankshaft rear

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A59034

FLYWHEEL ASSY. - w/o spline (Power Shift), Includes Ref: 26

1шт.

26

A58778

GEAR

- ring (139 teeth)

1шт.

27

114-621

BOLT

- 5/8 x 1-3/4" N.C. hex.

6шт.

30

A58934

FLYWHEEL

ASSY. - w/spline (Mechanical Shift), Includes Ref: 31

1шт.

31

A58778

GEAR

- ring (139 teeth)

1шт.

32

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft

1шт.

33

114-622

X

BOLT - 5/8 x 2" N.F. hex.

6шт.
