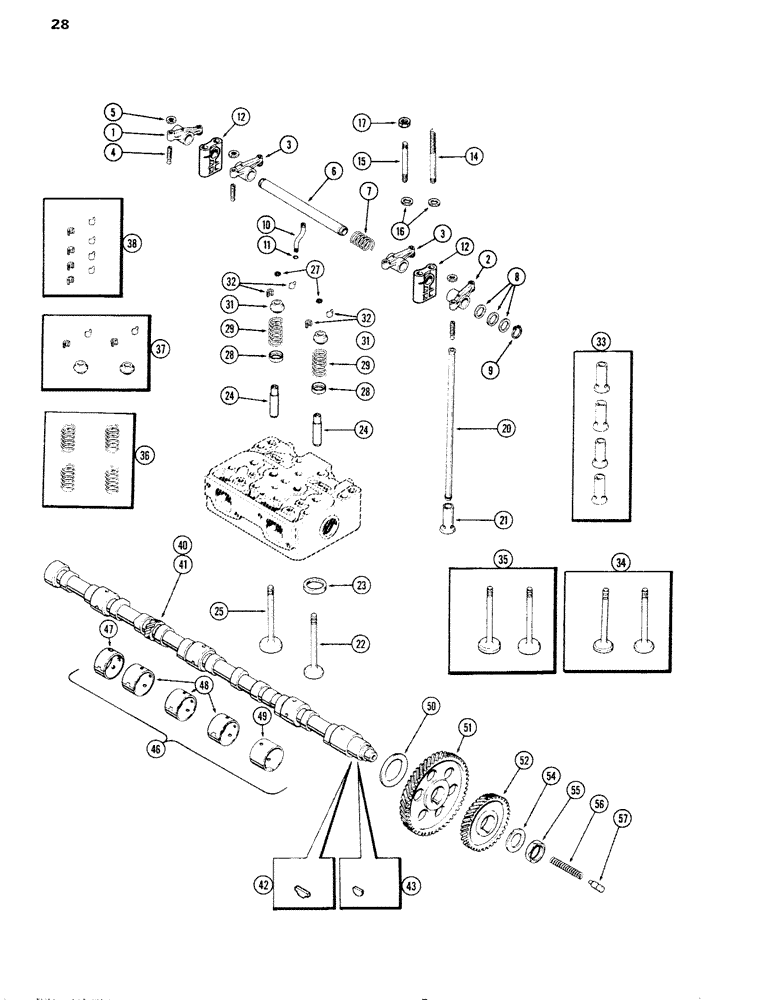

Запчасти Case IH 1090 (028) - VALVE MECHANISM AND CAMSHAFT, (451B) DIESEL ENGINE (02) - ENGINE

1

A58655

ARM

- rocker, exhaust valve (1st, 3rd & 4th cylinders)

3шт.

2

A58656

ARM

- rocker, exhaust valve (2nd, 4th & 6th cylinders), Includes Ref: 1 - 16

3шт.

3

A58654

ARM

- rocker, intake valve

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

12шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex., jam

12шт.

6

A57532

SHAFT

ASSY. - rocker arm

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- rocker arm shaft oil

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft oil tube

3шт.

12

A61128

BRACKET

- rocker arm shaft

6шт.

14

A60885

STUD

- rocker arm support, 7/16" N.C. x 6-1/16"

6шт.

15

A58659

STUD

- rocker arm support, 7/16" N.C. x 4-5/16"

6шт.

16

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

12шт.

17

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

12шт.

20

A58596

ROD

ASSY. - push, Includes Ref: 21

12шт.

21

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 33)

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 34)

6шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order from Fig. 26)

6шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order from Fig. 26)

12шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 35)

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A58623

SEAT

- intake & exhaust valve springs

12шт.

29

NSS

NOT SOLD SEPARAT

SPRING - intake & exhaust valves (Order ref. 36)

12шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 37)

12шт.

32

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 38)

24шт.

33

A21653

KIT

LIFTER KIT - push rod (Set of 4)(Std.)

3шт.

33

A22463

KIT

LIFTER KIT - push rod (Set of 4)(.010" oversize)

3шт.

34

A42130

VALVE

KIT - exhaust (Set of 2)

3шт.

35

A42129

PACKAGE

VALVE KIT - intake (Set of 2)

3шт.

36

A41755

SET

SPRING KIT - intake & exhaust valves (Set of 4)

3шт.

37

A21657

LOCK

RETAINER KIT - intake valve (2 rets. & 4 locks)

6шт.

38

A40352

LOCK

KIT - valve springs (Set of 8)

3шт.

40

A58591

CAMSHAFT

- (Used prior to eng. SN2323279) (Order A62734 & 126-227 key)

1шт.

41

A62734

CAMSHAFT

- (1st used eng. SN2323279)

1шт.

42

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-Pro, 5/16 x 1-5/16" (1st used eng. SN2323279)

1шт.

43

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

(Used prior to eng. SN2323279) #C, 5/16" x 1 1/8"

1шт.

46

A23544

BUSHING

KIT - camshaft (Set of 4), Includes: Ref. 47-49

1шт.

47

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

3шт.

49

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

50

A21017

WASHER

- camshaft thrust

1шт.

51

A58592

GEAR

- camshaft

1шт.

52

A58593

GEAR

- idler drive

1шт.

54

A58594

LOCK WASHER

- lock, camshaft nut

1шт.

55

A58595

NUT

- camshaft

1шт.

56

P0027853A

LARGE PIN

- plunger, camshaft thrust

1шт.

57

A27852

PLUNGER

- thrust, camshaft

1шт.
