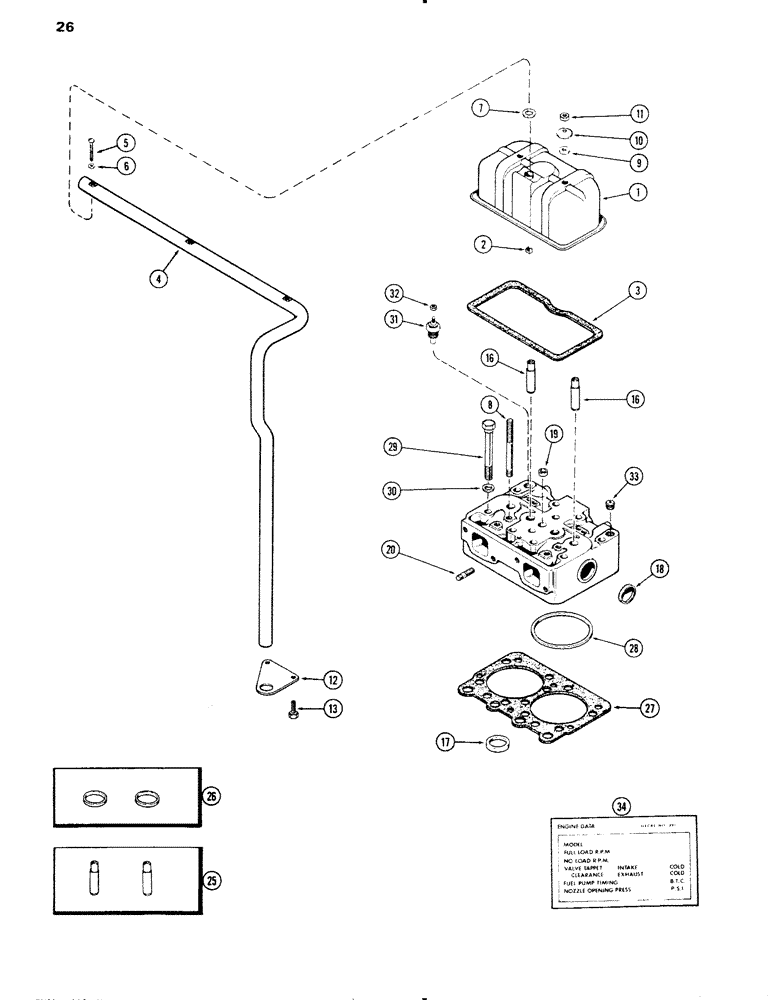

Запчасти Case IH 1090 (026) - CYLINDER HEAD AND COVER, (451B) DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A58929
COVER
ASSY. - cylinder head, Includes Ref: 2
3шт.
2
131-114
SPRING NUT,Rtnr, 1/4" - 20, 0.25" High
NUT - 1/4" N.C. Tinnerman
1шт.
3
A58928
CYLINDER HEAD GASKET
- cylinder head cover
3шт.
4
A59053
TUBE
- breather
1шт.
5
75-440
SCREW
- 1/4 x 2-1/2" rd. hd mach.
3шт.
6
A34133
GASKET
- breather tube screw
3шт.
7
A58635
GASKET,17.27mm ID x 32mm OD x 6.6mm Thk
-, Serial Range: tube-cover
3шт.
8
A60885
STUD
- rocker arm bracket & cylinder head cover
6шт.
9
A23684
GASKET
GASKET - cover stud
6шт.
10
A23683
WASHER
- cover stud, beveled
6шт.
11
25-107
NUT,7/16"-14, G5
- 7/16" N.C. hex.
6шт.
12
A59054
BRACKET
- breather tube
1шт.
13
193-528
SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"
BOLT - 3/8 x 1-1/2" N.C. sems
2шт.
15
A58867
CYLINDER
HEAD ASSY. - cylinder (Casting No. A58522), Includes Ref: 16 - 19
3шт.
16
NSS
NOT SOLD SEPARAT
GUIDE - intake & exhaust valves (Order ref. 25)
4шт.
17
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve (Order ref. 26)
2шт.
18
A34124
PLUG,Cup, 1 5/8", Stainless
- 1-5/8" cup type
2шт.
19
A58620
PLUG,Cup, 3/4", Stainless
- 3/4" cup type
1шт.
20
A59077
STUD
- manifold, 3/8 x 1-13/16"
24шт.
25
A41781
GUIDE
KIT - intake & exhaust valves (Set of 4)
3шт.
26
A42761
INSERT
KIT - exhaust valve (Set of 2)
3шт.
27
A62216
GASKET
- cylinder head
3шт.
28
A59095
GASKET
RING - fire, std.
6шт.
28
A42595
GASKET
RING - fire, thick (coded w/blue stripe)
1шт.
29
A62732
STEP BOLT
BOLT - 5/8 x 5-5/8" N.C. hex.
30шт.
30
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - cylinder head bolt
30шт.
31
A61787
TRANSMITTER
UNIT - temperature sending (in rear head)
1шт.
32
193-1000
NUT,Keps, w/LW,#10-32
- #10 N.F. hex. keps
1шт.
33
321-1843
PLUG - 3/8" P.T. hex. sckt. hd.
5шт.
34
321-1386
DECAL
- engine data (2000 R.P.M.)(Used prior to eng. SN2323001)
1шт.
34
321-1800
DECAL
- engine data (2100 R.P.M.)(1st used eng. SN2323001)
1шт.
Выбрано товаров: 31
